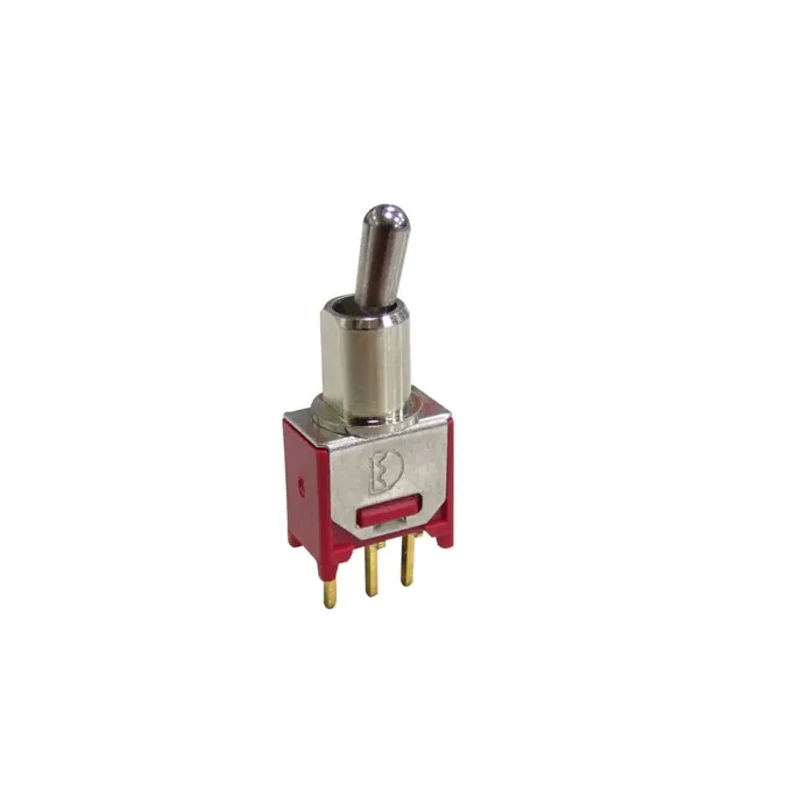

RS PRO Toggle Switch Panel Mount On-Off-On Through Hole Terminal 3A IP67 209-9374

Name: RS PRO Toggle Switch Panel Mount On-Off-On Through Hole Terminal 3A IP67 209-9374
Brand: RS PRO
SKU: 108987
Price: 824.88 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Length	8.13mm
Model	209-9374
IP Rating	IP67
Width	6mm
Mount Type	Panel
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Standards/Approvals	RoHS 2011/65/EU & 2015/863
Switch Operation	On-Off-On
Switch Contact Current	3A
Actuator Material	Chrome Plated Brass

Key Features

This toggle switch offers a 3A contact current rating suitable for moderate electrical loads.
The switch features a panel mount and through-hole terminal type for secure mounting and soldering.
It has a high ingress protection rating of IP67 ensuring dust and waterproof sealing for reliable operation.
The actuator is made from chrome plated brass, providing durability and corrosion resistance.
Operating temperature range is wide from -40°C up to 85°C, suited for various industrial environments.
The switch supports (ON)-OFF-(ON) operation with SPDT contact configuration.
This component complies with RoHS 2011/65/EU and 2015/863 regulations promoting environmental safety.
The toggle switch is compact with dimensions 8.13mm length and 6mm width for space-effective designs.

Product Description

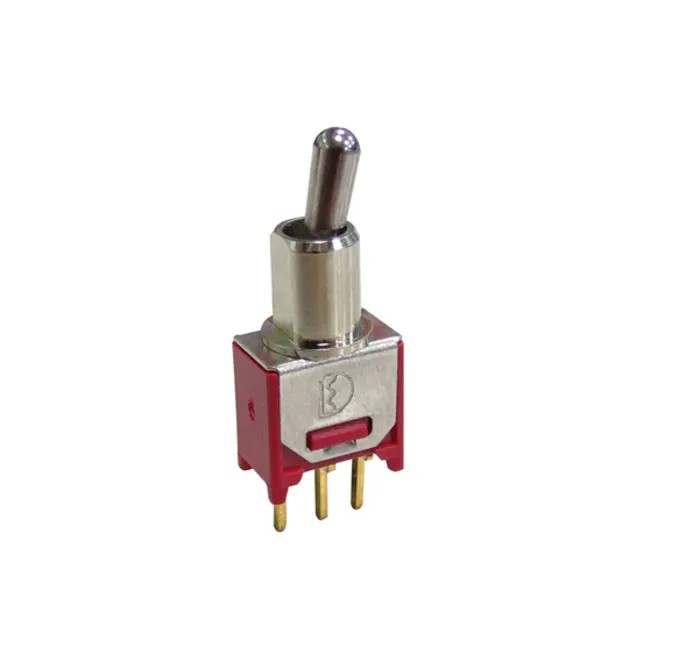

RS PRO 209-9374 Toggle Switch Panel Mount On-Off-On Through Hole Terminal is a sealed 2M series sub-miniature toggle switch designed for reliable electrical circuit control applications. This single pole double throw (SPDT) toggle switch provides versatile (ON)-OFF-(ON) operation, allowing the user to open or close circuits or switch between two different paths.

Constructed with a chrome plated brass actuator, this miniature toggle switch features a right angle printed circuit through-hole mount and is compliant with IP67 ingress protection standards, making it dust-tight and waterproof. It is rated for a contact current of 3 amps, suitable for moderate electrical loads. The operating temperature range from -40°C to 85°C enables use in a broad spectrum of environments, ranging from industrial machinery to telecommunications equipment.

The RS PRO toggle switch supports up to 30,000 mechanical make-and-break cycles, ensuring endurance for long-term use in rigorous applications. It is RoHS compliant, conforming to environmental health and safety standards.

Applications include industrial controls such as joystick and power supply interfaces, telecommunications equipment including wireless network cards, instrumentation shut-off switches, marine control panels, medical devices like food processing equipment and wheelchair motor controls, as well as security systems and construction site equipment.

This toggle switch offers a mechanical life of 30,000 make-and-break cycles. Operation range from -40°C to 85°C allows broad environmental application. SPDT (ON)-OFF-(ON) switch operation enabling multiple circuit connection options.

IP67 waterproof rating ensures dust and water resistance. Chrome plated brass actuator provides durability and corrosion resistance. Compact size with length 8.13mm and width 6mm fits tight panel spaces. Compliant with RoHS 2011/65/EU & 2015/863 environmental directives.

Panel mount with through hole terminals for secure and easy mounting. Explore the range of RS PRO electrical components and Toggle Switches on EnvMart for reliable industrial and telecommunications applications.
