RS PRO PCB Slide Switch DPDT Latching 5A Silver Plated Brass 7347270P

Free Delivery in India | Lowest Global Shipping Charges

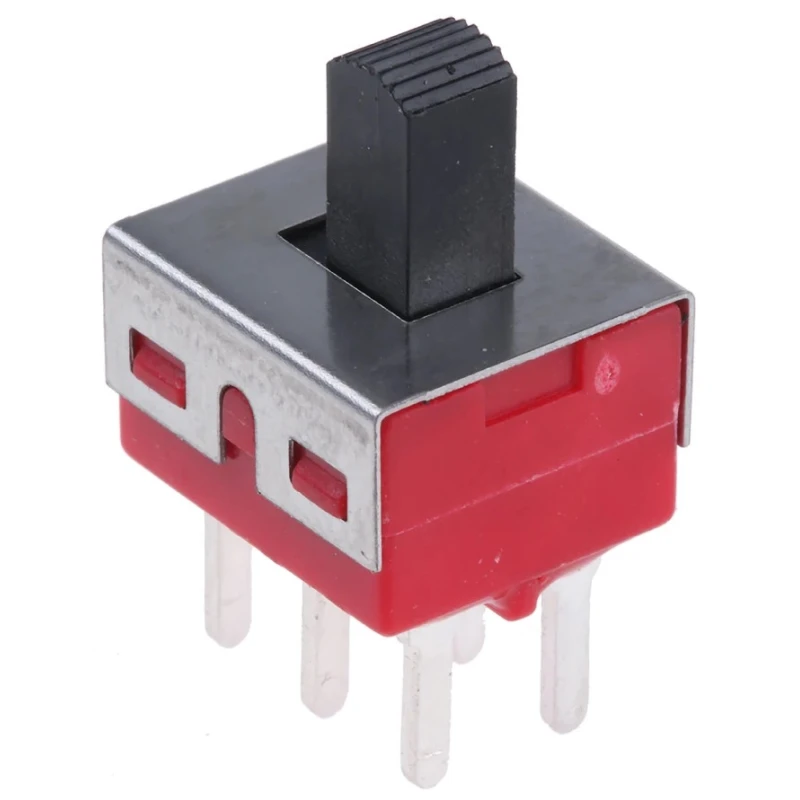

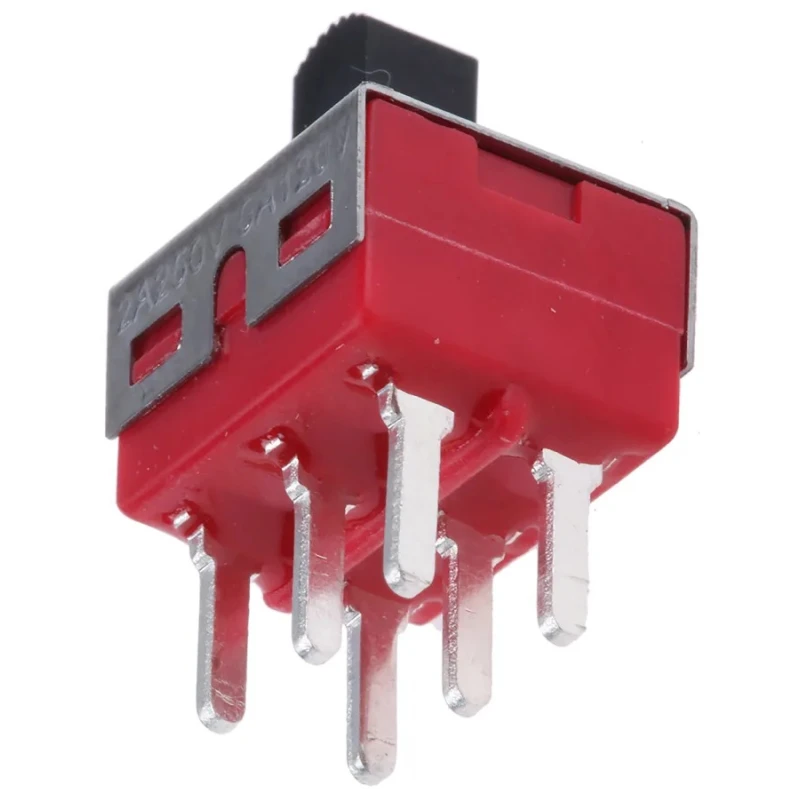

RS PRO PCB Slide Switch DPDT Latching 5A Silver Plated Brass 7347270P

Name: RS PRO PCB Slide Switch DPDT Latching 5A Silver Plated Brass 7347270P
Brand: RS PRO
SKU: 223173
Price: 857.33 INR
Availability: InStock



Category PCB Slide Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Length	11.43mm
Model	7347270P
Depth	12.7mm
Width	12.7mm
Mount Type	PCB
Series	RS PRO
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-None-On
Minimum Operating Temperature	-30°C
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Latching
Contact DC Voltage	28V dc
Switch Contact Current	5A
Mechanical Life	30000Cycles
Actuator Material	Silver Plated Brass

Key Features

Double Pole Double Throw (DPDT) contact configuration for versatile switching.
Latching mechanism to maintain switch position until manually changed.
Rated for a switch contact current of 5 Amperes.
Silver plated brass actuator material ensures reliable conductivity and durability.
Suitable for wave soldering at 260°C for 5 seconds for PCB assembly.
Non-illuminated switch with On-None-On configuration.
Mechanical life of up to 30,000 cycles ensured for long-term reliability.
Operating temperature range from -30°C to 85°C for varied environments.

Product Description

RS PRO 7347270P PCB Slide Switch DPDT Latching 5A is a miniature, high-quality slide switch designed for printed circuit board (PCB) mounting applications. Manufactured with a silver plated brass actuator and constructed with a black nylon actuator, DAP case, and stainless steel housing, this switch provides durability and excellent electrical conductivity. It is specifically suitable for wave soldering processes at 260ºC for 5 seconds.

This switch features a double pole double throw (DPDT) contact configuration and latching operation mechanism with an On-None-On switch configuration, making it ideal for electrical switching applications requiring secure and stable circuit control. Rated for a maximum switch contact current of 5A and a contact DC voltage of 28V DC, it supports reliable performance in various low voltage circuits.

With compact physical dimensions of 11.43 mm length, 12.7 mm width, and 12.7 mm depth, it suits installation on tight PCB layouts. The device supports a mechanical life rating of up to 30,000 cycles, ensuring long-lasting operation in industrial, instrumentation, hand held products, white goods, medical, IT, and telecommunication equipment.

Double Pole Double Throw (DPDT) switch configuration for flexible circuit design. Silver plated brass actuator ensures longevity and superior conductivity. Wave soldering compatibility for efficient PCB assembly. Robust mechanical life rating for extended reliability in industrial applications.

Operating temperature range accommodates diverse environmental conditions. RoHS compliant, promoting environmentally safe electronic design. Compact dimensions ideal for front panel or PCB control. Solder terminal type supports secure electrical connections.

Non-illuminated switch suitable for standard switching needs. Latching switch operation provides stable toggle activation.

This RS PRO PCB Slide Switch is widely applicable across electrical, automation, and electronic industries, fitting tasks requiring reliable manual toggling of circuits on PCBs. Its compact size and robust construction make it ideal for use in manufacturing, laboratory equipment, medical devices, IT hardware, and telecom equipment.

Explore more high-quality RS PRO electrical switch products and components at EnvMart for enhanced electrical circuit designs and reliable industrial applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching applications.

It is rated for a maximum switch contact current of 5 Amperes, suitable for low voltage circuits.

The operating temperature range is from -30°C to 85°C, accommodating various environmental conditions.

This model uses solder terminal type, which supports secure electrical connections on PCBs.

It has a mechanical life rating of up to 30,000 cycles, ensuring long-lasting operation.

The actuator is made from silver plated brass, while the housing is constructed from stainless steel and DAP case materials.

Yes, this PCB slide switch is RoHS compliant, promoting environmentally safe electronic design.

The dimensions are 11.43 mm in length, 12.7 mm in width, and 12.7 mm in depth, making it compact for PCB layouts.

It features an On-None-On switch configuration, allowing for stable toggle activation.

Yes, it is suitable for wave soldering processes at 260°C for 5 seconds for PCB assembly.

It is widely applicable in electrical, automation, and electronic industries, including manufacturing, laboratory equipment, medical devices, and IT hardware.

The contact DC voltage rating is 28V DC, making it suitable for various low voltage applications.
