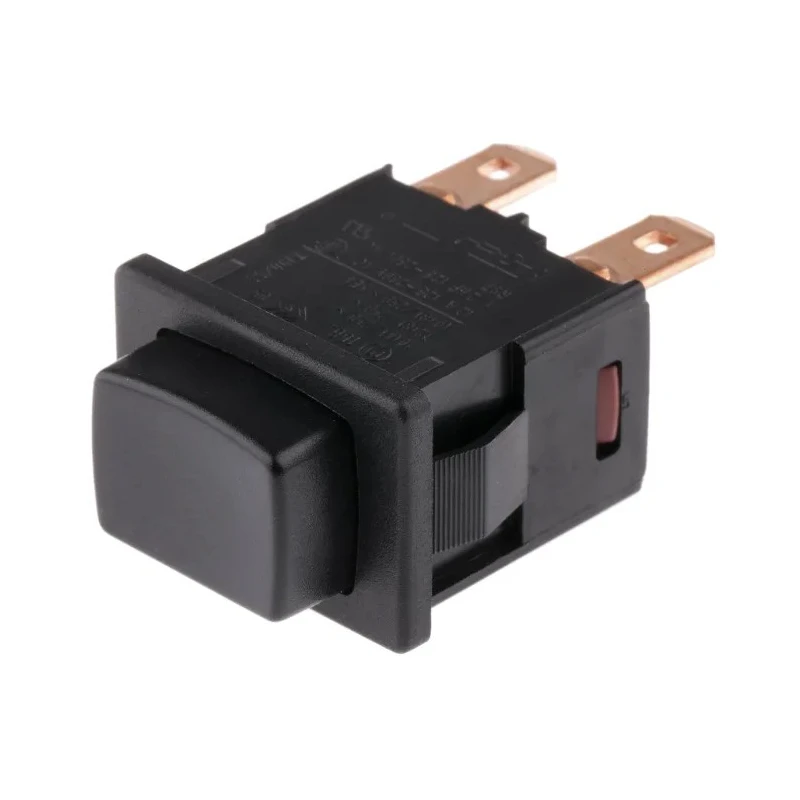

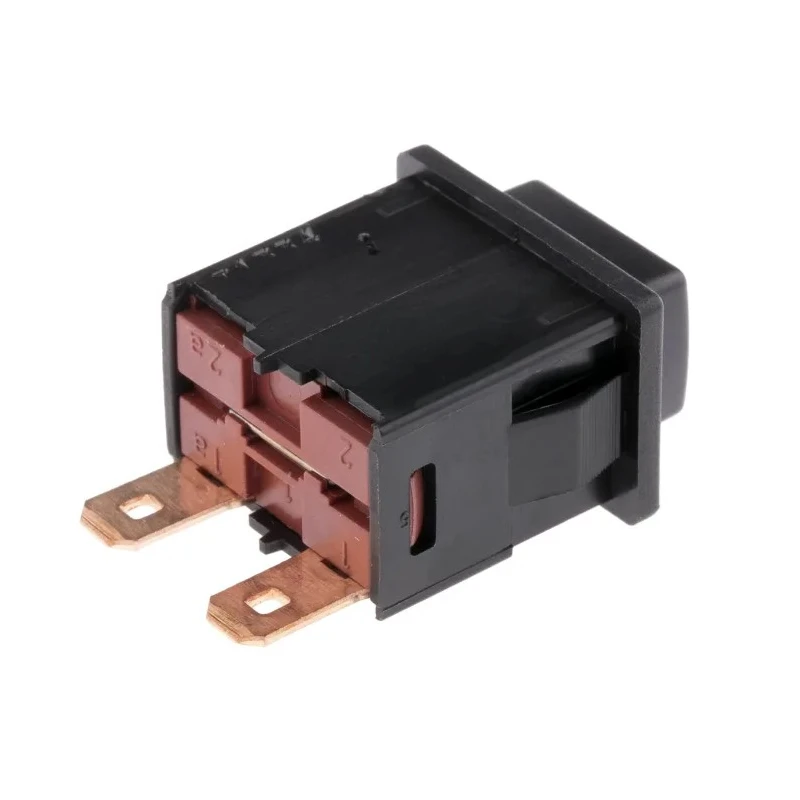

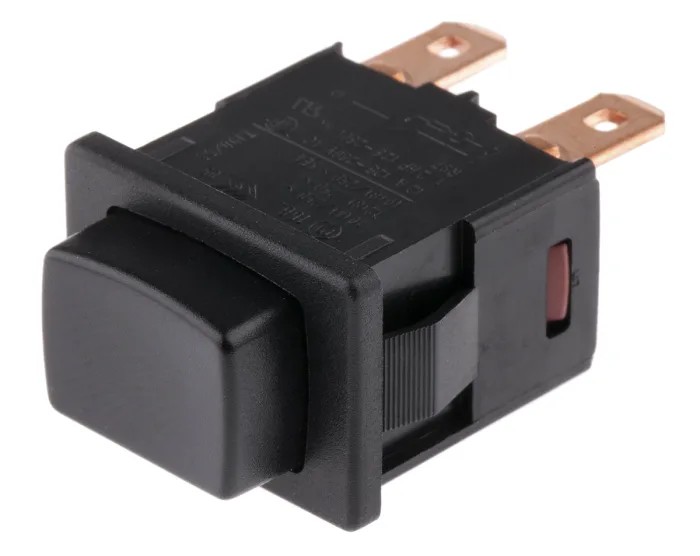

Marquardt Push Button Switch Latching Panel Mount SPST IP40 12 V dc 250 V ac 1683.1101

Name: Marquardt Push Button Switch Latching Panel Mount SPST IP40 12 V dc 250 V ac 1683.1101
Brand: Marquardt
SKU: 341822
Price: 473.41 INR
Availability: InStock



Category Switches Brand Marquardt Condition New

Specifications

Country of Origin	Tunisia
Brand	Marquardt
IP Rating	IP40
Mount Type	Panel
Maximum Operating Temperature	120°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-20°C
Panel Cutout Size	12.9 x 19.2 mm
Terminal type	Tab
Standards/Approvals	UL, CSA
Switch Operation	Latching
Actuator Colour	Black
Contact DC Voltage	12V dc
Actuator Style	Button
Switch Contact Current	16A
Contact AC Voltage	250V ac
UL 94 flammability (actuator	V-0, socket: V-1, housing: V-2)

Key Features

The actuator color is black with a button style actuator.
The panel cutout size required is 12.9 x 19.2 mm.
Rated for 12 V dc and 250 V ac voltages with a contact current of 16 A.
IP40 rated enclosure providing protection against solid particles.
Suitable for operating temperatures between -20°C to 120°C.
Mechanical life expectancy of 100,000 operations ensures durability.
Faston/Quick Connect style terminals with tab type contacts for ease of installation.
Complies with UL and CSA standards for quality and safety.

Product Description

Marquardt 1683.1101 Push Button Switch is a latching, panel mount switch designed for reliable on-off operations in electrical and automation systems. Featuring a SPST contact configuration, this switch provides a robust contact current rating of 16 A and supports 12 V dc and 250 V ac voltages. The switch is intended for panel mounting with a precise cutout size of 12.9 x 19.2 mm, ensuring easy integration into various control panels.

The switch actuator is styled as a black button, offering tactile feedback for user interaction. It uses faston/quick connect tab terminals that facilitate quick and secure wiring connections. With an IP40 rating, the switch is protected against solid particles larger than one millimeter, suitable for indoor and controlled environment installations.

Durability is a key feature with a mechanical life expectancy of 100,000 operations, making it suitable for demanding industrial, laboratory, and automation applications. Its operating temperature range spans from -20°C to 120°C, allowing use in a wide variety of environmental conditions.

Constructed with materials rated for UL 94 flammability standards (with actuator at V-0, socket at V-1, and housing at V-2), this push button switch meets rigorous safety and quality standards. The Marquardt 1683 series is widely employed in manufacturing machinery, HVAC controls, and general electrical panel installations.

The actuator color is black with a button style actuator. The panel cutout size required is 12.9 x 19.2 mm. Supports 12 V dc and 250 V ac voltages with a contact current of 16 A. Features an IP40 rating for protection against solid particles.

Durable mechanical life of 100,000 operations. Faston/Quick Connect style tab terminals for easy wiring. Complies with UL and CSA standards. Non-illuminated, latching switch operation.

This Marquardt push button switch is ideal for industrial automation, electrical panels, and control systems requiring robust and reliable manual switching. Browse more in the Switches category to find compatible components and accessories.
