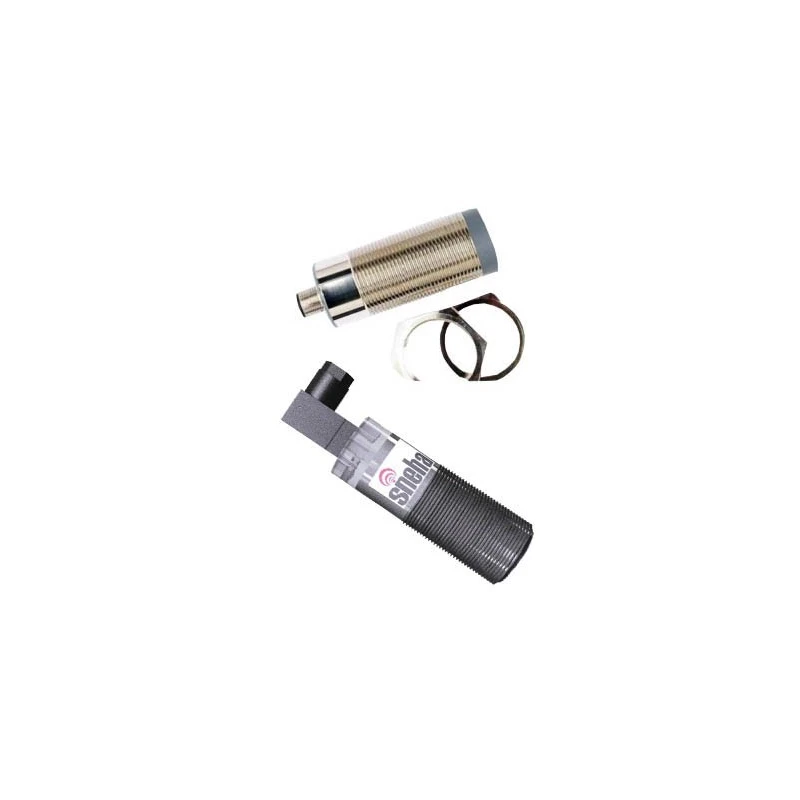

Zero Speed Switches
Specifications
| Operating Voltage (V) | 10 to 30 VDC |
|---|---|
| Cable | 2 Mtrs. Shielded |
| Indication | LEDs - Yellow - Pulse| Red - Alarm| Blue - Normal |
| Housing | SS /Brass electroplated M30 X 1.5 X 100mm length Non-Flush mountable with 2Nos. SS /Brass check-nuts |
| Tolerable Ambient Temperature (ºC) | 0 to 60 C |
| Sensing range | 10 mm |
| Output current max | 100 ma Open collector PNP |
| No Load current | 15 ma |
| Maximum cycles of operation | 6000 Pulses/min |
| Threshold frequency range | 6 to 150 or 120 to 3000 Pulses / min |
| Start up delay | 9 Sec |
Key Features
- Tubular proximity type design for easy installation
- SS / Brass housing with PTFE facing to withstand oily and greasy conditions
- Dust and weatherproof construction with epoxy potted electronics, IP67 protection
- Visible LED indicators for Pulse, Alarm and Normal operation
Product Description
ZSS-I is a self-contained device used to detect and send output alarms for machinery under speed or zero-speed conditions, as well as early jamming detection. The early detection of the under speed condition is useful in reducing downtime due to jamming or transmission failure, especially in the cases of medium and large motors.The zero-speed condition is used extensively for safety interlocking applications, including: conveyors, pumps, mixers, centrifugal separators, elevators, saws, and crushers.
- Linear 25 Turn potentiometer for adjusting the speed threshold
- Built-in fixed power-up delay to overcome start-up inertia
- Reverse polarity protection for input supply and current limited open collector PNP output
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range for this model is 10 to 30 VDC.
The sensing range is 10 mm.
It can operate up to a maximum of 6000 pulses per minute.
It features an open collector PNP output with a maximum output current of 100 mA.
The threshold frequency range is either 6 to 150 or 120 to 3000 pulses per minute.
The housing is made of SS/Brass with an electroplated finish.
It includes a 2-meter shielded cable.
The tolerable ambient temperature range is from 0 to 60°C.
The speed threshold is adjusted using a linear 25 turn potentiometer.
Yes, it has a built-in fixed power-up delay of 9 seconds to overcome start-up inertia.
