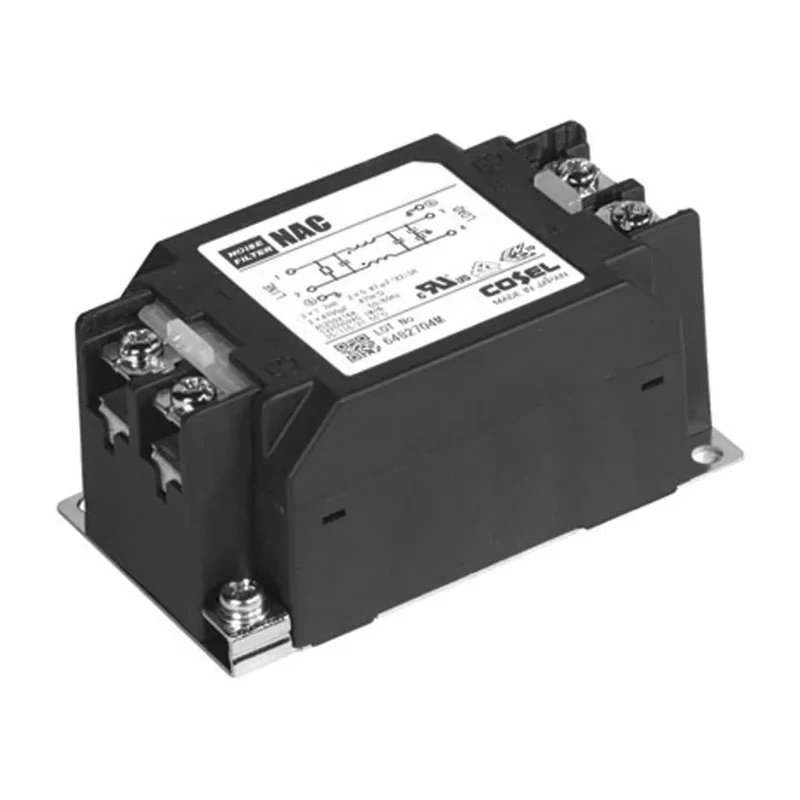

Cosel Single Phase Panel Mount RFI Filter NAC-30-472 30A 250V ac/dc 150 kHz to 1 MHz Screw Terminal
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Cosel |
| Height | 43mm |
| Length | 92mm |
| Model | NAC-30-472 |
| Depth | 53mm |
| Mount Type | Panel Mount |
| Operating Frequency | 150, 1kHz |
| Series | NAC |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 1 |
| Resistance | 100mΩ |
| Capacitance | 4.7nF |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 30A |
| Number of Phases | 1 |
| Leakage Current | 500μA |
| Maximum Voltage | 250V ac/dc |
| Standards/Approvals | RoHS |
| Termination Style | Screw |
Key Features
- The filter is suitable for one-phase power lines and features a panel mount design with screw termination.
- Operates over a frequency range of 150 kHz to 1 MHz for effective EMI noise suppression.
- Capacitance is rated at 4.7nF providing noise filtering capabilities.
- Designed to endure operating temperatures from -40°C up to 85°C.
- Leakage current is limited to 500μA to maintain electrical safety.
- The unit features a compact body with dimensions 92mm length, 43mm height, and 53mm depth.
- Resistance of the filter is 100mΩ ensuring low loss operation.
- Quick and easy installation with push-down terminal block and screw tightening.
Product Description
Cosel NAC-30-472 is a high-performance single phase RFI filter designed to attenuate common mode noise from 150 kHz to 1 MHz, suitable for industrial, commercial, and laboratory use. The filter handles a maximum current of 30A with a voltage rating of 250V ac/dc, making it ideal for use in electrical and electronic equipment to reduce electromagnetic interference and improve system reliability.
The robust panel mount configuration features a screw terminal style for secure connections and quick installation. This filter incorporates a capacitance of 4.7nF and a resistance of 100mΩ, ensuring efficient suppression of EMI noise without significant power loss.
Operating temperature ranges from -40°C to 85°C allow the filter to be used in a variety of industrial environments. The compact and durable design measures 92mm in length, 43mm in height, and 53mm in depth, facilitating easy integration into control panels and electrical assemblies.
Cosel NAC series filters are RoHS compliant, meeting stringent environmental requirements, and are manufactured in Japan with high-quality standards. The product offers maintenance ease with a push-down terminal block and screw connection, reducing installation time and efforts for technicians and engineers.
The filter efficiently reduces EMI in one-phase power lines within the frequency range of 150 kHz to 1 MHz. Compact panel mount form factor suitable for electrical panels and industrial enclosures. Easy push-down and screw terminal installation for fast and secure wiring.
Maintains low leakage current of 500μA enhancing safety and performance. Designed to withstand harsh environments with wide temperature tolerance. RoHS certified and manufactured in Japan ensuring reliability and compliance.
Ideal for industrial machines, power supplies, and electronic control systems requiring EMI noise suppression. Supports standards UL1283, CSA C22.2 No.8 (cUL), DIN EN60939 VDE0565 Teil 3-1, and ENEC.
This filter is recommended for use in industrial, laboratory, manufacturing, and commercial power line EMI suppression applications. Its high attenuation capabilities and robust design help maintain equipment performance and comply with electromagnetic compatibility regulations.
Explore EnvMart’s extensive catalog of electronic components and EMI filters for reliable solutions engineered for high standards.
Explore more products in our Power Line Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a frequency range of 150 kHz to 1 MHz, effectively suppressing EMI noise within this bandwidth.
The NAC-30-472 filter has a maximum current rating of 30A, making it suitable for various electrical applications.
This unit has dimensions of 92mm in length, 43mm in height, and 53mm in depth, allowing for compact installation in panels.
The NAC-30-472 is rated for a maximum voltage of 250V ac/dc, suitable for a range of electrical systems.
It features a screw terminal style for secure connections, facilitating easy installation.
The filter has a capacitance rating of 4.7nF, which aids in effective noise filtering capabilities.
The leakage current is limited to 500μA, enhancing electrical safety during operation.
This model is RoHS compliant and meets several standards including UL1283 and CSA C22.2 No.8 (cUL).
It features a panel mount design, allowing for secure installation in electrical panels and enclosures.
This filter is recommended for industrial, laboratory, manufacturing, and commercial applications requiring EMI noise suppression.
The filter is manufactured in Japan, ensuring adherence to high-quality standards.
