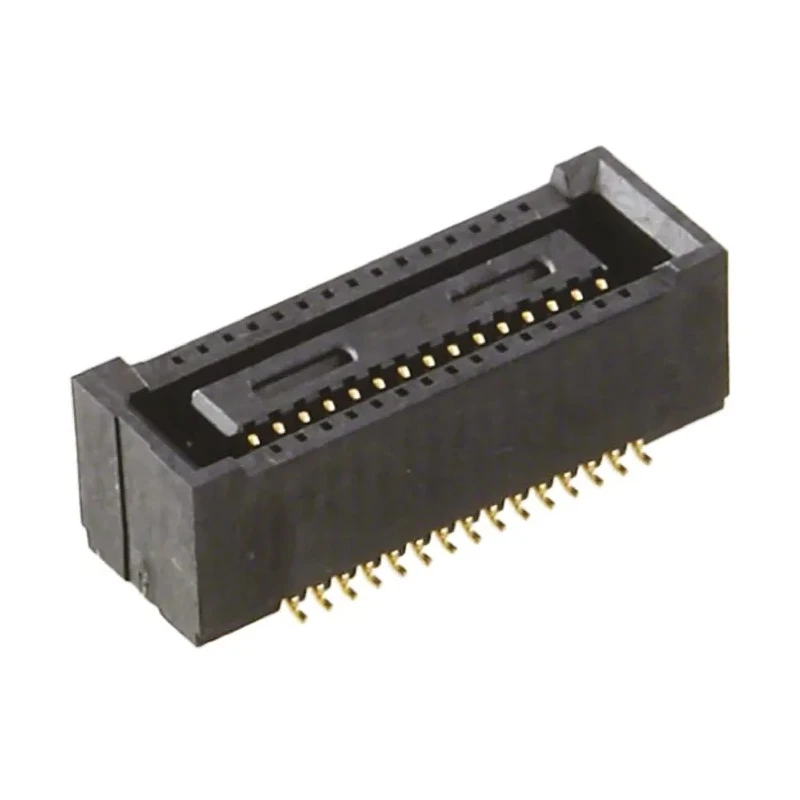

Hirose DF40 Series Straight Surface PCB Socket 30-Contact 2 Row 0.4 mm Pitch Solder
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 30V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | DF40 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | DF40 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 2 |
| Pitch | 0.4mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Board-to-FPC |
| Stacking Height | 4mm |
| Row Pitch | 2.38mm |
Key Features
- This connector features 30 female contacts arranged in 2 rows with a pitch of 0.4 mm.
- It has a stacking height of 4 mm and a row pitch of 2.38 mm for compact mounting.
- The housing is made of liquid crystal polymer ensuring durability and heat resistance.
- Supports a voltage rating of 30V and a current of 300mA with gold-plated copper contacts for reliable conductivity.
- The connector employs a solder termination type designed for surface mount technology.
- Enhanced with locking mechanism providing audible click to ensure reliable mating.
- Guide ribs allow self-alignment within 0.33 mm for easy and accurate installation.
- Reinforced structure with shock absorbing ribs protects against impact and vibration damage.
Product Description
Hirose DF40HC(3.5)-30DS-0.4V(58) is a premium PCB socket connector from the DF40 Series, featuring a straight surface mount design with 30 contacts arranged in 2 rows and a fine 0.4 mm pitch. It is engineered for compact and high-density applications in electronics where board-to-board and board-to-FPC connections are essential.
The connector boasts a low profile with stacking heights ranging up to 4 mm, making it ideal for space-constrained designs. Its housing material is high-quality liquid crystal polymer, providing excellent mechanical strength and thermal stability.
With gold-plated copper contacts, the connector ensures high contact reliability and corrosion resistance, while nickel-plated barriers prevent solder wicking during assembly. The solder termination type is optimized for surface mount technology on PCB boards.
The DF40HC connector features a locking mechanism that produces a tactile click upon mating, ensuring secure engagement. Guide ribs facilitate precise self-alignment during assembly, improving connection accuracy. Its reinforced structural ribs help absorb shocks and vibrations, enhancing durability in demanding industrial or commercial environments.
Operating within -35°C to 85°C, this connector performs reliably in diverse conditions. It supports a voltage rating of 30V and a current rating of 300mA, suitable for miniature devices such as mobile phones, LCD displays, developer chip sets, notebook PCs, and keyboards.
30 female contacts in 2 rows with 0.4 mm pitch. Surface mount solder termination for easy PCB assembly. Liquid crystal polymer housing provides durability and heat resistance. Gold-plated copper contacts ensure reliable conductivity.
Nickel plated barriers prevent solder wicking. Locking mechanism with audible click for mating assurance. Guide ribs enable self-alignment during mating. Shock absorbing ribs reinforce structural robustness. Operating temperature from -35°C to 85°C.
Japan manufactured with high quality standards. This Hirose DF40 Series PCB Socket is well suited for industrial, commercial, and electronic manufacturing applications requiring reliable, compact, high-density interconnects.
Explore more connectors and related electronic components in our comprehensive EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features 30 female contacts arranged in 2 rows with a pitch of 0.4 mm.
The maximum operating temperature is 85°C.
It supports a voltage rating of 30V and a current rating of 300mA.
The housing is made of liquid crystal polymer, and the contacts are made of gold-plated copper.
It employs a solder termination type designed for surface mount technology.
The stacking height is 4 mm.
It features a locking mechanism that provides an audible click to ensure reliable mating.
The row pitch is 2.38 mm.
The operating temperature range is from -35°C to 85°C.
It is suitable for high-density applications such as mobile phones, LCD displays, and notebook PCs.
Guide ribs allow self-alignment within 0.33 mm for easy and accurate installation.
It is manufactured in Japan, adhering to high-quality standards.
