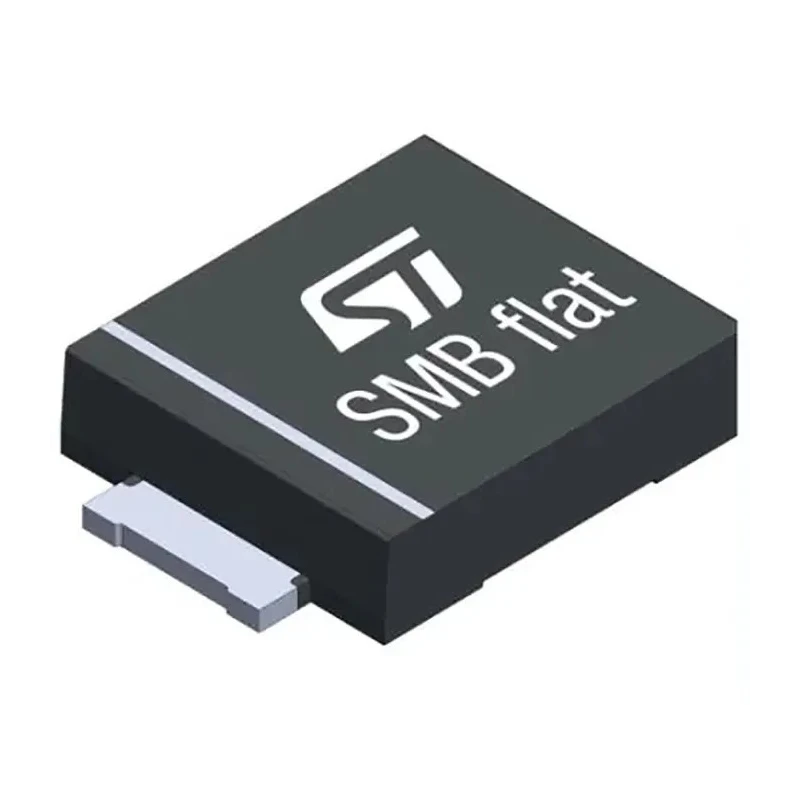

STMicroelectronics 1-Element Uni-Directional TVS Diode 1.5 kW, 2-Pin SMB SMB15F10A
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 3.95mm |
| Model | SMB15F10A |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | SMB15FxxA |
| Maximum Operating Temperature | 175°C |
| Package Type | SMB |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 17V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 12.3V |
| Maximum Reverse Stand-off Voltage Vwm | 64V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 92A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed to protect sensitive circuits against transient surges using planar technology.
- Features low leakage current of 1 μA ensuring high junction temperature tolerance.
- Minimum breakdown voltage of 12.3 V with a maximum reverse standoff voltage of 64 V.
- Clamping voltage is rated at 17 V providing efficient transient voltage suppression.
- Operates reliably across a temperature range from -55°C to 175°C.
- Peak pulse current capacity is 92 A ensuring robust surge handling.
- Matte tin plating lead finish enhances solderability and longevity.
- Suitable for surface mount applications requiring high surge protection.
Product Description
STMicroelectronics SMB15F10A is a single-element, uni-directional transient voltage suppression (TVS) diode designed to protect sensitive electronic circuits against damage caused by transient voltage surges such as ESD, EFT, and lightning.
This TVS diode utilizes planar technology, which provides low leakage current (1 μA) and high junction temperature tolerance up to 175°C. Its 1.5 kW peak pulse power dissipation capability makes it suitable for demanding industrial and commercial applications requiring robust surge protection.
The diode features a minimum breakdown voltage (Vbr) of 12.3 V and a maximum reverse standoff voltage (Vwm) of 64 V, with a clamping voltage (Vc) of 17 V, efficiently suppressing dangerous voltage spikes. It supports a peak pulse current (Ippm) of 92 A with a test current of 1 mA, offering reliable circuit protection under transient stress.
Packaged in a compact 2-pin SMB surface mount device, it measures 3.95 mm in length, 5.6 mm in width, and 1.1 mm high, with matte tin plating on leads to ensure excellent solderability and durability.
The SMB15F10A diode operates across a wide temperature range from -55°C to 175°C, making it stable in various environmental conditions. It is not automotive certified but is ideal for general purpose electronics, industrial machines, power supplies, and communication equipment requiring transient voltage protection.
Low leakage current and high junction temperature enhance long-term reliability. Matte tin plating provides solderability and corrosion resistance. Compact SMB packaging allows easy PCB mounting and space-saving design. Devices protect circuits from voltage transients up to 1.5 kW surge power.
Durable operation in harsh temperature environments from -55°C to 175°C. Suitable for industrial, manufacturing, and power electronics applications. Ensures stable and reliable protection for sensitive semiconductors. Single-element, uni-directional design for straightforward implementation in various circuits.
Explore more STMicroelectronics TVS Diodes and Semiconductor products at EnvMart for diverse electronic and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMB15F10A has a peak pulse power dissipation capability of 1.5 kW, making it suitable for applications requiring robust surge protection.
This model operates reliably across a temperature range from -55°C to 175°C, ensuring stability in various environmental conditions.
The clamping voltage (Vc) of this diode is rated at 17 V, which helps efficiently suppress dangerous voltage spikes.
The maximum reverse standoff voltage (Vwm) for the SMB15F10A is 64 V, providing a high level of protection against voltage transients.
The minimum breakdown voltage (Vbr) of the SMB15F10A is 12.3 V, which is critical for its operation in transient voltage suppression applications.
This unit supports a maximum peak pulse current (Ippm) of 92 A, ensuring reliable circuit protection under transient stress.
The SMB15F10A measures 3.95 mm in length, 5.6 mm in width, and 1.1 mm in height, making it compact for surface mount applications.
This model is designed for surface mount applications, allowing for easy PCB mounting and a space-saving design.
The maximum reverse leakage current for the SMB15F10A is 1 μA, which contributes to its low power loss and high reliability.
The diode configuration of this model is single-element and uni-directional, simplifying its implementation in various circuits.
This TVS diode is ideal for general purpose electronics, industrial machines, power supplies, and communication equipment requiring transient voltage protection.
The leads of the SMB15F10A feature a matte tin plating, which enhances solderability and contributes to the longevity of the device.
