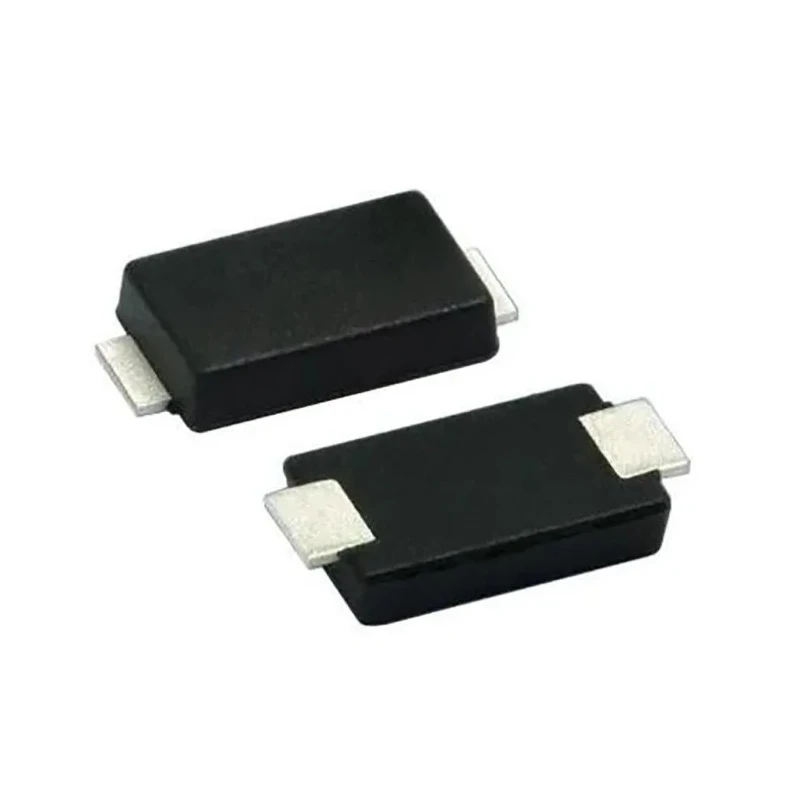

STMicroelectronics 1-Element Uni-Directional TVS Diode 600W 2-Pin SMA Flat SMA6F58A
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 4.6mm |
| Model | SMA6F58A |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | SMA6FxxA |
| Maximum Operating Temperature | 175°C |
| Package Type | SMA Flat |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 93.6V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 71.4V |
| Maximum Reverse Stand-off Voltage Vwm | 58V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 6.7A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This diode features uni-directional operation for effective surge protection.
- It supports a peak pulse power dissipation of 600 watts ensuring circuit safety.
- The diode has a minimum breakdown voltage of 71.4 volts and maximum reverse stand-off voltage of 58 volts.
- Compact surface mount SMA flat package with 2 pins facilitates easy PCB integration.
- High maximum operating temperature of 175°C enables reliable performance in harsh environments.
- Low leakage current of maximum 1μA offers high stability and low power loss.
- Clamping voltage rated at 93.6 volts for precise transient voltage suppression.
- Test current is 1mA with peak pulse current capability of 6.7A.
Product Description
STMicroelectronics SMA6F58A is a single-element uni-directional TVS diode designed specifically to protect sensitive electronic circuits against transient voltage surges and spikes. Featuring advanced planar technology, this diode offers low leakage current and high junction temperature tolerance, ensuring long-term reliability and stability in demanding applications.
With a peak pulse power dissipation of 600W, the SMA6F58A diode efficiently clamps voltage spikes at a clamping voltage of 93.6V, safeguarding downstream components. The device supports a minimum breakdown voltage of 71.4V and maximum reverse stand-off voltage of 58V, making it suitable for protecting circuits operating within these voltage limits.
The diode comes in a compact surface-mount SMA flat package with a 2-pin configuration, measuring 4.6mm in length, 2.9mm in width, and 1.05mm in height. It operates reliably from -55°C to a maximum temperature of 175°C, which makes it ideal for use in automotive, industrial, and commercial electronics subjected to harsh thermal conditions.
Its low maximum reverse leakage current of 1μA minimizes power dissipation and supports energy-efficient designs. The device is finished with matte tin plating on leads to enhance solderability and corrosion resistance.
Typical applications include surge transient suppression in power supplies, communication lines, automotive electronics, and industrial control systems. Usage of this diode ensures enhanced protection, extending equipment lifespan and improving operational safety in electronic systems.
This diode supports 600W peak pulse power dissipation for robust transient suppression. Uni-directional configuration ensures effective protection in one polar direction. Compact 2-pin SMA surface-mount package for minimal PCB space usage.
Wide operating temperature range from -55°C to 175°C suited for harsh environments. Low leakage current and high breakdown voltage improve circuit efficiency and protection.
Choose STMicroelectronics SMA6F58A for high-quality, reliable transient voltage suppression in demanding industrial, automotive, and telecommunications applications. Browse the full range of TVS Diodes and semiconductor components on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMA6F58A diode features a peak pulse power dissipation of 600 watts, providing effective surge protection for sensitive circuits.
The clamping voltage of the SMA6F58A is rated at 93.6 volts, which is crucial for precise transient voltage suppression.
This model has dimensions of 4.6mm in length, 2.9mm in width, and 1.05mm in height, making it compact for PCB integration.
The SMA6F58A operates reliably at a maximum temperature of 175°C, suitable for harsh environments.
The minimum breakdown voltage of this diode is 71.4 volts, ensuring it protects circuits operating within this voltage range.
The maximum reverse stand-off voltage for the SMA6F58A is 58 volts, which is important for its protective function.
The maximum reverse leakage current for the SMA6F58A is 1μA, which helps minimize power dissipation.
This diode comes in a compact surface-mount SMA flat package with a 2-pin configuration, facilitating easy integration into PCBs.
Typical applications for this diode include surge transient suppression in power supplies, communication lines, and automotive electronics.
The SMA6F58A can handle a maximum peak pulse current of 6.7A, providing robust protection against voltage spikes.
The minimum operating temperature for this diode is -55°C, making it suitable for use in extreme conditions.
The SMA6F58A is a single-element diode, designed for effective transient voltage suppression in one polar direction.
