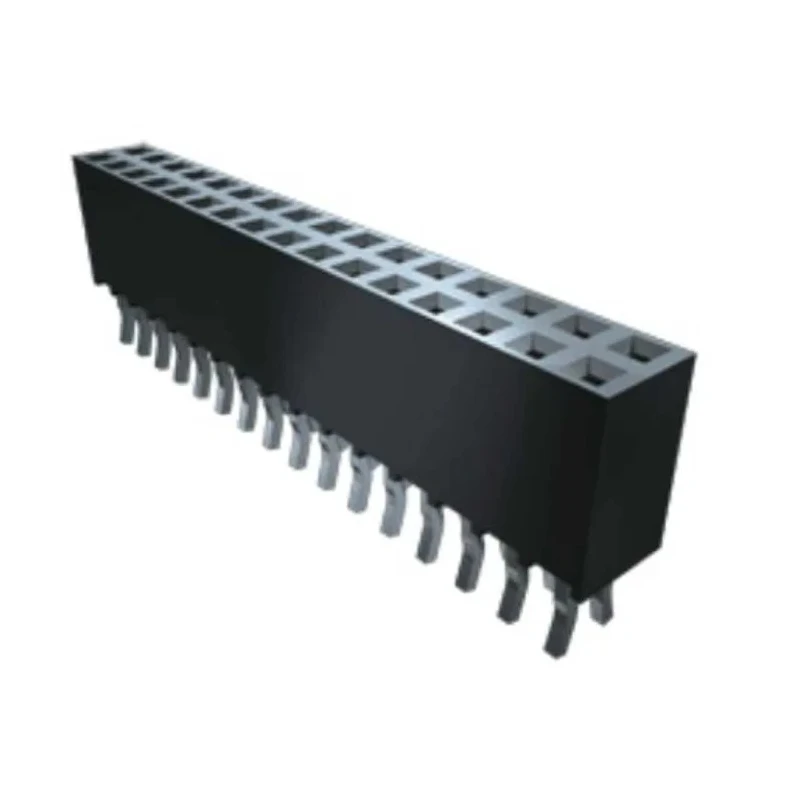

Samtec SSQ Series Right Angle Through Hole PCB Socket, 22-Contact, 2 Row, 2.54 mm Pitch, Solder Termination SSQ-111-02-G-D-RA

Free Delivery in India | Lowest Global Shipping Charges

Samtec SSQ Series Right Angle Through Hole PCB Socket, 22-Contact, 2 Row, 2.54 mm Pitch, Solder Termination SSQ-111-02-G-D-RA

Name: Samtec SSQ Series Right Angle Through Hole PCB Socket, 22-Contact, 2 Row, 2.54 mm Pitch, Solder Termination SSQ-111-02-G-D-RA
Brand: Samtec
SKU: 108272
Price: 5.62 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	655V
Brand	Samtec
Orientation	Right Angle
Current	6.3A
Model	SSQ-111-02-G-D-RA
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	SSQ
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	22
Contact Gender	Female
Connector System	Board-to-Board
Row Pitch	2.5mm

Key Features

The socket features a black liquid crystal polymer housing for high durability.
Phosphor bronze contacts have 0.51 μm gold plating to ensure reliable conductivity.
Supports a current rating of 6.3A and voltage rating up to 655V.
Right angle orientation facilitates compact PCB mounting and routing.
Designed for through hole mount with a row pitch of 2.5 mm.
Operating temperature ranges from -55°C to 125°C suitable for varied environments.
Standard and low insertion force contact with 0.635 mm square tail for self-nesting applications.

Product Description

Samtec SSQ-111-02-G-D-RA is a high-performance right angle through hole PCB socket suitable for board-to-board connection applications in electronics and electrical manufacturing industries. It features 22 female contacts arranged in 2 rows with a 2.54 mm pitch, ensuring precise and stable electrical connections.

The socket strip is molded in black liquid crystal polymer, providing excellent mechanical strength and thermal stability. Contact material is phosphor bronze with a gold plating thickness of 0.51 μm, enabling superior conductivity and corrosion resistance for long-term reliability.

Rated for current up to 6.3 A and voltage up to 655 V, this component withstands demanding electrical conditions. Its right angle orientation and through hole mounting type allow efficient PCB space utilization and robust solder connections.

Operating temperature range from -55°C to 125°C makes it suitable for various industrial environments, including automotive, telecommunications, and instrumentation. The 2.5 mm row pitch and standard low force contacts facilitate ease of insertion and durability over multiple mating cycles.

The housing is made of liquid crystal polymer, ensuring dimensional stability and heat resistance. Phosphor bronze contact material with gold plating ensures low contact resistance and excellent signal integrity. Solder termination type supports reliable and permanent PCB connections.

Right angle orientation enables compact PCB designs and versatile mounting. Designed for board-to-board connector systems with a current rating of 6.3 A and voltage rating of 655 V. Minimum and maximum operating temperatures of -55°C and 125°C cover a wide thermal range.

Standard and low insertion force contact with 0.635 mm square tail for efficient assembly.

This PCB socket is ideal for use in industrial electronics manufacturing, laboratory equipment, telecommunications, and general electronic assemblies requiring robust and reliable connectors. It is a part of the SSQ series by Samtec, renowned for quality and precision in connector technology.

Explore the full range of PCB Sockets and connectors on EnvMart to find compatible parts and accessories to complete your electronic projects and production lines.
