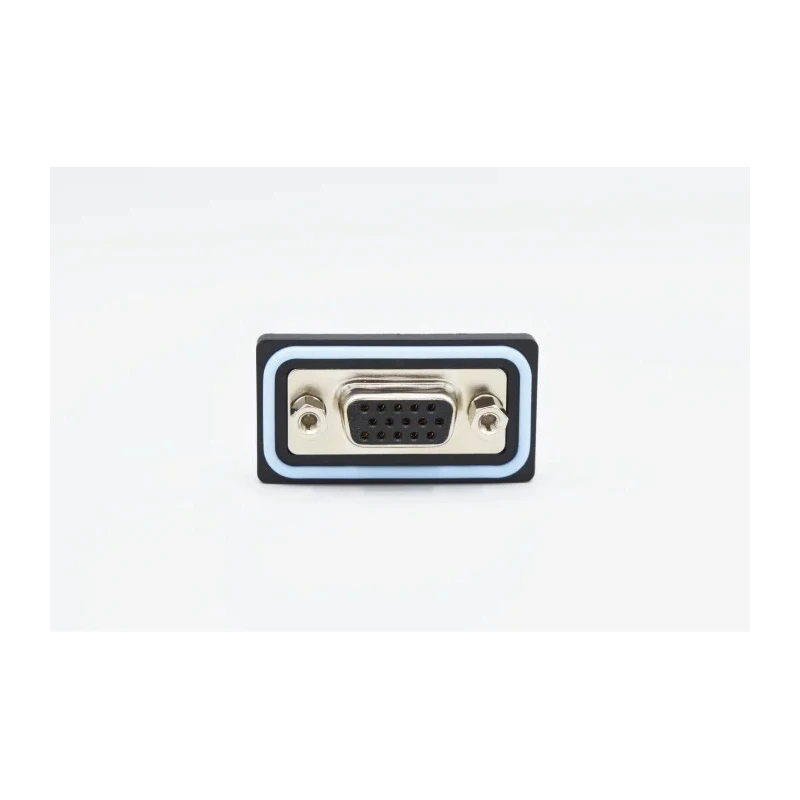

Norcomp HDF 15 Way Vertical 2.29 mm Pitch Surface D-Sub Connector with 4-40 Board Lock Female HDF-V15-213L051

The Norcomp HDF-V15-213L051 is a precision-engineered 15-way vertical surface mount D-sub connector designed to meet stringent industrial and electronic requirements. It features a female contact configuration with a 2.29 mm pitch providing high-density connection capabilities for complex electronic circuits.

The connector’s housing is constructed from polybutylene terephthalate, offering excellent mechanical stability and chemical resistance. The nickel-plated steel shell enhances durability while the silicon O-ring ensures IP67 rated sealing for protection against dust and moisture, making it suitable for harsh operating conditions.

Electrical specifications include a rated voltage of 1000V AC and a current rating of 3A, ensuring reliable performance in demanding environments. Its operating temperature range from -25°C to 85°C allows use in industrial, laboratory, and manufacturing applications.

Mounting is facilitated by 4-40 board lock hardware enabling secure surface mount installation on printed circuit boards. Contact material is brass with gold plating, providing low contact resistance and excellent corrosion resistance for long service life. The connector’s vertical orientation aligns with industry-standard PCB layouts for seamless integration.

The HDF series from Norcomp is recognized for its high density and reliability, suitable for use in instrumentation, computing connectors, telecommunications, and control equipment. This model is an ideal choice for applications demanding compact, dependable connections with environmental protection.

The connector provides 15 female contacts in a vertical arrangement. Housing is made from robust polybutylene terephthalate material. Nickel-plated steel shell ensures durability and corrosion resistance. Gold plated brass contacts optimize electrical conductivity and service life.

Rated voltage of 1000V and current of 3A for stable operation under load. Operating temperature span of -25°C to +85°C supports various industrial uses. Equipped with 4-40 board lock mounting hardware for easy PCB fixing.

IP67 rated with silicon O-ring offering high-level protection against dust and liquids. Manufactured in Taiwan with high quality standards. Explore similar high-quality D-Sub Connectors and other electronic components at EnvMart for your power, industrial, and electronic assembly needs.
