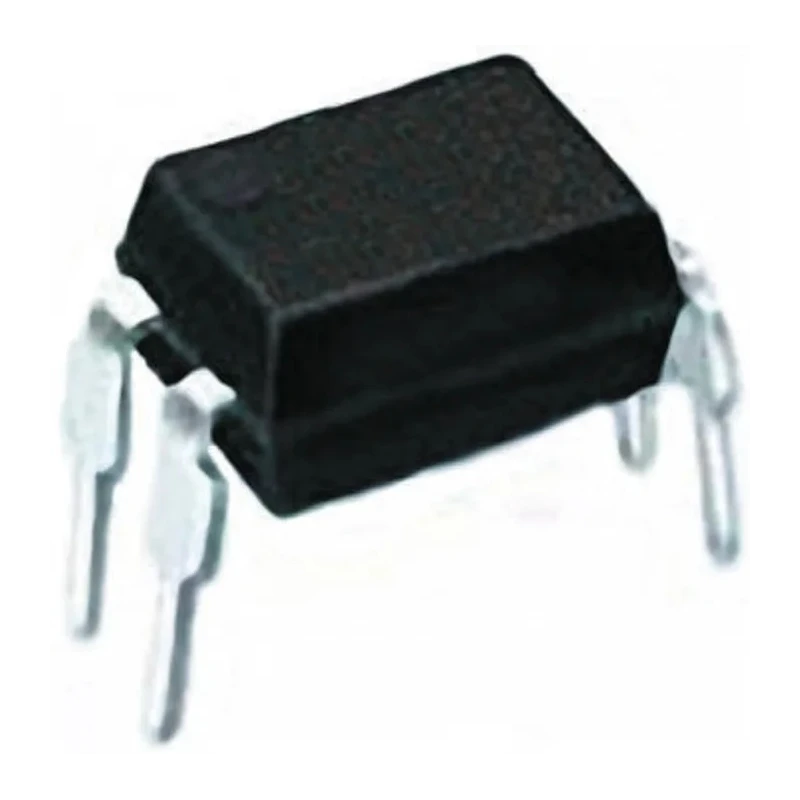

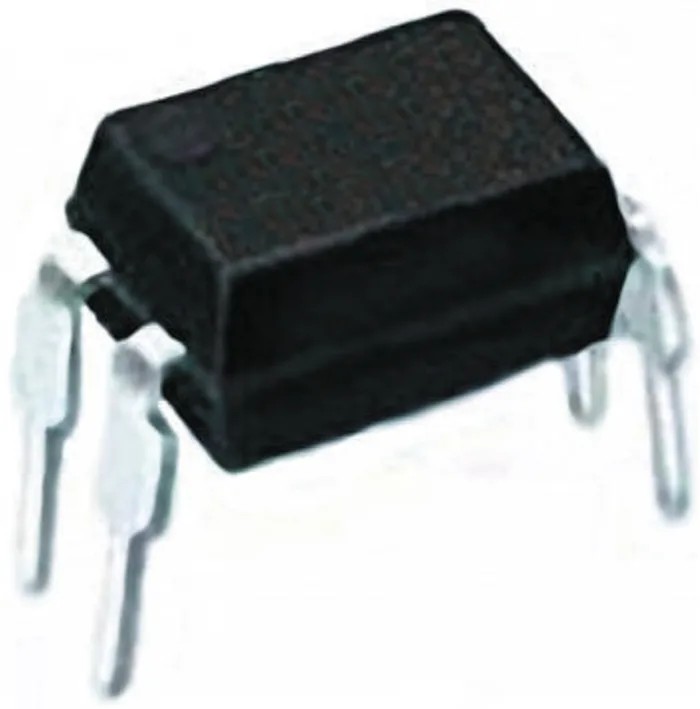

onsemi DC Input Optocoupler, Through Hole, 4-Pin MDIP FOD817C300W
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | FOD817C300W |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | FOD |
| Maximum Operating Temperature | 110°C |
| Package Type | MDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL and VDE, C-UL |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 18μs |
| Maximum Current Transfer Ratio | 4% |
| Minimum Current Transfer Ratio | 200% |
Key Features
- Suitable for DC input current type applications.
- Features a maximum forward voltage of 1.4V.
- Has a high isolation voltage rating of 5000 Vrms.
- Operating temperature ranges from -55°C to 110°C.
- Includes a minimum current transfer ratio of 200% ensuring reliable signal transmission.
- Typical rise and fall times are 18 microseconds each.
- Complies with UL and VDE, C-UL standards for safety and reliability.
- Packaged in tape and reel for automated manufacturing processes.
Product Description
onsemi FOD817C300W is a DC input optocoupler designed for electrical isolation between input and output signals. It comes in a through hole, 4-pin mini dual in-line package (MDIP), ideal for various electronic component applications.
This optocoupler supports a maximum forward voltage of 1.4 volts and a maximum input current of 50 mA, making it suitable for sensitive electronic circuits. Operating temperature ranges from -55°C to 110°C, ensuring performance in diverse environments.
The device provides a high isolation voltage of 5000 Vrms, contributing to the safety and protection of connected systems. It features a minimum current transfer ratio of 200%, maximizing efficiency and signal fidelity, with a maximum ratio of 4% allowing precise control.
Typical rise and fall times of 18 microseconds enable fast switching performance in digital applications. The optocoupler complies with UL and VDE, C-UL standards, confirming its quality and reliability for industrial, laboratory, construction, and manufacturing uses.
Packaged on tape and reel, the component facilitates automated insertion into machinery, enhancing production efficiency. The compact 4-pin MDIP design is ideal for through hole mounting on printed circuit boards.
Suitable for DC input current type applications. Maximum forward voltage of 1.4V. Isolation voltage rating of 5000 Vrms. Operating temperature: -55°C to 110°C. Minimum current transfer ratio of 200%. Typical rise and fall time of 18μs each.
Compliance with UL and VDE, C-UL. Packaged in tape and reel for automated assembly. 4-pin MDIP package for through hole mounting.
This optocoupler is widely used in electronic instrumentation, signal isolation for industrial control, power supplies, and telecommunications equipment, where electrical isolation and accurate signal transmission are critical.
Explore more electronic components and Optocoupler solutions at EnvMart for your specific industrial and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 1.4V.
It has a high isolation voltage rating of 5000 Vrms.
The operating temperature ranges from -55°C to 110°C.
The minimum current transfer ratio is 200%, ensuring reliable signal transmission.
The typical rise time for this model is 18 microseconds.
It is packaged in tape and reel, facilitating automated assembly.
This optocoupler has 4 pins in its MDIP package.
The maximum input current is 50 mA.
It complies with UL and VDE, C-UL standards for safety and reliability.
This model is designed for through hole mounting.
It belongs to the FOD series of optocouplers.
This optocoupler is suitable for DC input current type applications, including signal isolation for industrial control and telecommunications equipment.
