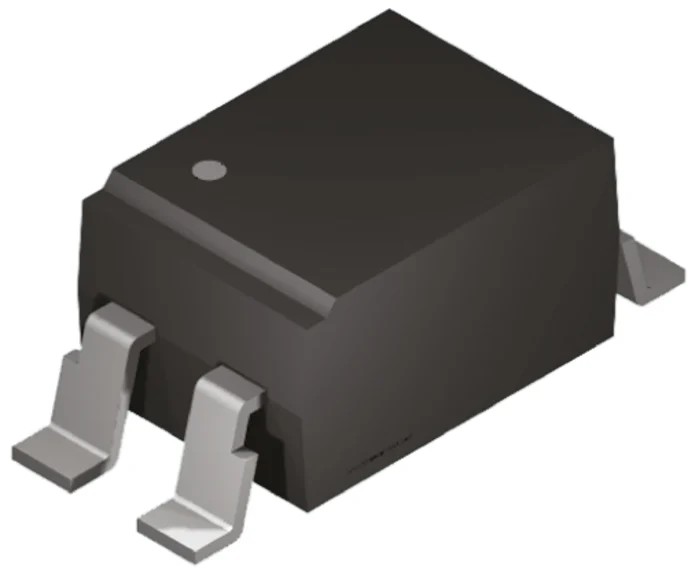

onsemi DC Input Optocoupler, Surface Mount, 4-Pin MDIP, 50mA Maximum Input Current FOD8523S
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | FOD8523S |
| Packaging | Tube |
| Mount Type | Surface |
| Series | FOD |
| Maximum Operating Temperature | 100°C |
| Package Type | MDIP |
| Minimum Operating Temperature | -30°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, EN, DIN |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 300μs |
| Maximum Current Transfer Ratio | 15000% |
| Typical Fall Time | 100μs |
| Minimum Current Transfer Ratio | 1000% |
Key Features
- Supports DC input current type with maximum input current of 50mA.
- Maximum forward voltage is 1.4V ensuring low voltage drop.
- Provides high isolation voltage rating of 5000Vrms for safety.
- Typical rise and fall times are 300μs and 100μs respectively.
- Single channel device with a maximum current transfer ratio of 15000%.
- Operating temperature range from -30°C to 100°C for versatile environments.
- Complies with UL, EN, and DIN standards for quality assurance.
- Packaged in tubes ready for easy insertion into machinery and production lines.
Product Description
onsemi FOD8523S is a DC input optocoupler designed with a surface mount 4-pin MDIP package, optimized for electrical isolation between input and output circuits. It utilizes a Darlington transistor output configuration, featuring robust performance with a maximum input current of 50mA and a maximum forward voltage rating of 1.4V. This single-channel device provides a high isolation voltage of 5000Vrms, ensuring safe operation in industrial, electronic, and automation systems.
The optocoupler maintains a wide operating temperature range from -30°C to 100°C, suitable for diverse environments including manufacturing and power electronic applications. Its typical rise time and fall time are 300μs and 100μs respectively, making it efficient for switching applications. The maximum current transfer ratio of 15000% and minimum ratio of 1000% demonstrate its high amplification capability.
Compliant with UL, EN, and DIN standards, the FOD8523S is a reliable component widely used in electronic circuits requiring electrical isolation, signal transfer, and noise reduction. It comes packaged in tubes for convenient automated insertion and assembly line processes. This optocoupler supports DC input current, making it ideal for industrial control systems, power supplies, instrumentation, and communication equipment.
DC input current type with maximum input current of 50mA. Maximum forward voltage of 1.4V with a Darlington transistor output. High isolation voltage rating of 5000Vrms ensures electrical safety. Wide operating temperature range from -30°C to 100°C.
Typical rise and fall times of 300μs and 100μs respectively. Single channel with high current transfer ratio up to 15000%. Complies with UL, EN, and DIN standards for dependable performance. Surface mount 4-pin MDIP package facilitates easy installation.
Packaged in tubes for improved production efficiency in assembly lines. Find more electronic components and Optocouplers in the Electronics Components category at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 50mA.
It has a high isolation voltage rating of 5000Vrms, ensuring safe operation.
This unit operates within a temperature range of -30°C to 100°C.
The typical rise time is 300μs and the typical fall time is 100μs.
It is a single-channel device.
The maximum forward voltage is 1.4V, ensuring a low voltage drop.
It complies with UL, EN, and DIN standards for quality assurance.
It is packaged in tubes, facilitating easy insertion into machinery and production lines.
This model supports DC input current.
The maximum current transfer ratio is 15000%.
It comes in a surface mount 4-pin MDIP package.
The country of origin for this product is India.
