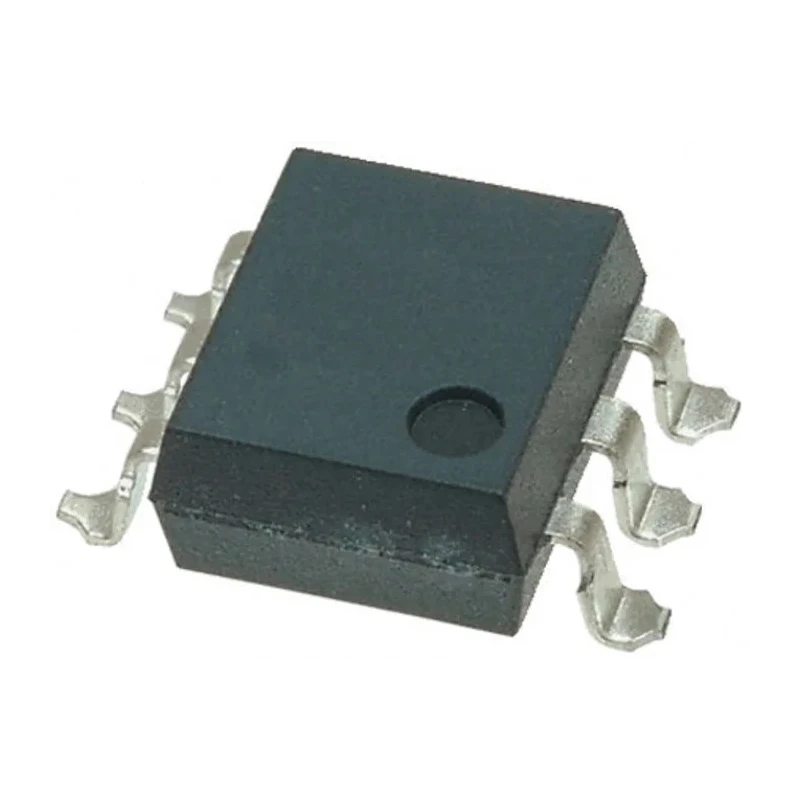

onsemi AC Input Optocoupler Surface Mount 6-Pin DIP MOC3041SM

The onsemi MOC3041SM is a high-performance AC input optocoupler designed for surface mount applications, featuring a 6-pin DIP package. This device provides excellent isolation between input and output circuits with an isolation voltage rating of 7500V AC, ensuring safety in electronic designs. Suitable for a variety of industrial and consumer electronics applications, it supports a maximum forward voltage of 1.5V, which facilitates efficient operation under AC input conditions.

With a single channel design and a maximum input current of 60mA, the MOC3041SM integrates a logic output, enabling it to easily interface with logic-level electronics. Its operating temperature range from -40°C to 85°C allows it to function reliably in harsh environmental conditions often encountered in manufacturing, HVAC controls, industrial machinery, and other electronic equipment.

This optocoupler meets stringent industry standards including DIN EN/IEC 60747-5-5, UL 1577, and RoHS compliance, guaranteeing material safety and performance consistency. Packaged in a durable 6-pin DIP surface mount configuration, it is ideal for automated assembly and mass production. The MOC3041SM belongs to the MOC304XM series, known for robust thyristor and triac output capabilities.

Applications include isolating low-voltage control signals from power electronics circuits, protecting microcontrollers from voltage spikes, and enabling safe switching of AC loads. Its design is optimized for use in household appliances, lighting control, motor controls, and other power control systems.

Choose the onsemi MOC3041SM for dependable optocoupling in demanding electronic environments, offering safety, durability, and efficiency in one compact surface mount package. Designed for surface mount applications ensuring compact PCB integration.

Operates with a maximum forward voltage of 1.5V for AC input. Single channel device with an AC input current maximum of 60mA. Offers high isolation voltage rated at 7500V AC enhancing electrical safety. Operates within a temperature range of -40°C to 85°C for reliable performance.

Complies with DIN EN/IEC 60747-5-5, UL 1577, and RoHS standards. Features a 6-pin DIP package type suitable for diverse electronic applications. Logic output capability enables integration with control circuits easily. Explore more high-quality Optocouplers and electronic components at EnvMart to enhance your electronic design and manufacturing projects.
