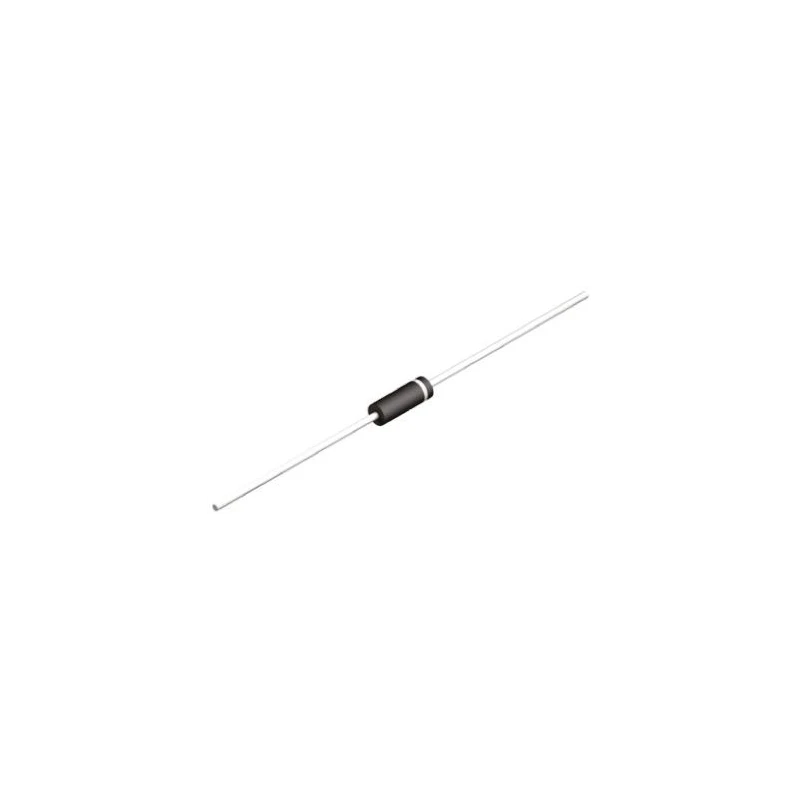

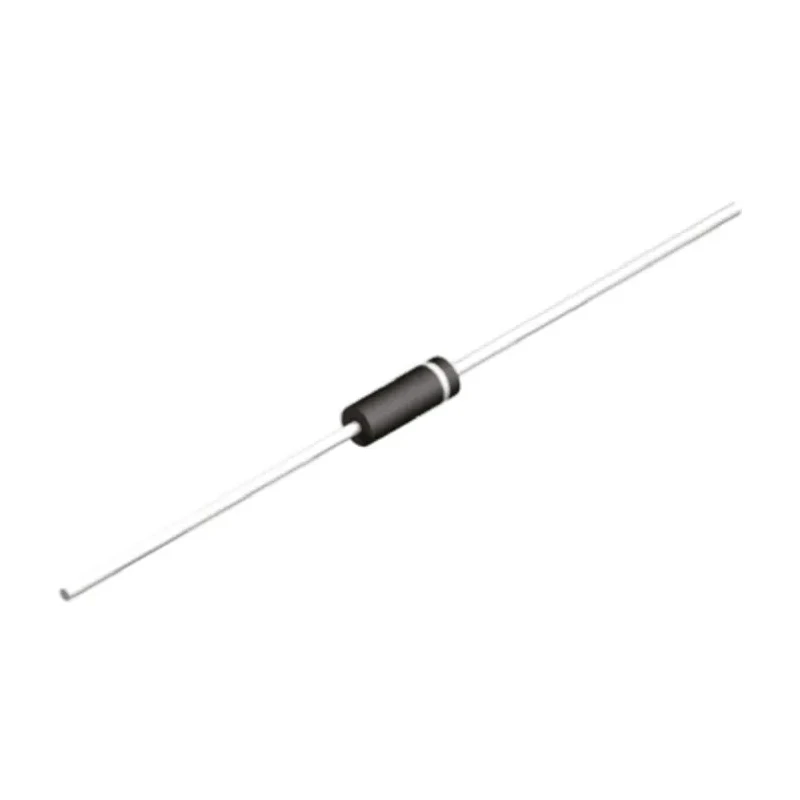

onsemi Zener Diode 25 V 5 W Voltage Regulator Through Hole 2-Pin DO-15 1N5360BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5360BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 50mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 25V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 4Ω |
Key Features
- Single diode configuration providing precise voltage regulation.
- Nominal Zener voltage of 25 V with ±5% tolerance.
- Maximum power dissipation of 5 W ensuring robust electrical capacity.
- Through hole mount type with 2-pin DO-15 package for easy PCB integration.
- Operates safely between temperatures of -65°C to 200°C.
- Low maximum reverse leakage current of 500 nA for energy efficiency.
- Test current rating is 50 mA ensuring reliable voltage testing.
- Maximum Zener impedance of 4 ohms for stable voltage regulation.
Product Description
onsemi 1N5360BRLG is a high-quality Zener Diode designed for voltage regulation applications. This single diode element device features a nominal 25 V Zener voltage with a 5 W maximum power dissipation, making it well-suited for industrial electronics requiring stable voltage control. The diode is packaged in a robust DO-15 axial-leaded through hole format, which ensures reliable solder connections and easy installation on printed circuit boards.
The 1N5360BRLG utilizes Surmetic™ 40 technology with silicon-oxide passivated junctions to offer enhanced operating characteristics and tight voltage limits. The molded, transfer-molded thermosetting plastic housing provides excellent protection against corrosion and harsh environmental conditions, enabling the diode to function reliably over a wide temperature range from -65°C to 200°C. With a maximum reverse leakage current of only 500 nA and a maximum Zener impedance of 4 ohms, this diode delivers energy-efficient and precise voltage regulation for demanding industrial settings.
This Zener Diode is ideal for use in various industrial, laboratory, manufacturing, and power regulation applications where consistent voltage reference is critical. The axial-leaded design allows for straightforward implementation in through hole electronic assemblies. The 1N53 series from onsemi is known for its durability and superior voltage stability, making it a dependable choice for complex industrial circuits.
Single diode for accurate voltage regulation. 5 W maximum power dissipation for extended operational use. Robust DO-15 package suitable for through hole mounting. Wide operating temperature range ensures versatile application.
Corrosion-resistant molded plastic housing protects internal components. Suitable for industrial and laboratory electronic assemblies. Explore more on semiconductor components and related electronics parts in the EnvMart catalog to find complementary products and enhance your industrial applications effectively.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of the 1N5360BRLG is 25 V with a tolerance of ±5%.
This model has a maximum power dissipation of 5 W, which ensures robust electrical capacity for various applications.
It operates safely between temperatures of -65°C to 200°C, making it versatile for different environments.
The maximum reverse leakage current for the 1N5360BRLG is 500 nA, contributing to its energy efficiency.
The maximum Zener impedance is 4 ohms, which helps maintain stable voltage regulation.
This diode features a through hole mount type with a 2-pin DO-15 package for easy PCB integration.
The test current rating for the 1N5360BRLG is 50 mA, ensuring reliable voltage testing.
The 1N5360BRLG has a single diode configuration, providing precise voltage regulation.
The diode is housed in a molded, transfer-molded thermosetting plastic which provides protection against corrosion and harsh conditions.
This model is part of the 1N53 series from onsemi, known for its voltage stability.
It is ideal for industrial, laboratory, manufacturing, and power regulation applications where consistent voltage reference is critical.
The dimensions of this diode are 8.89 mm in length and 3.68 mm in height.
