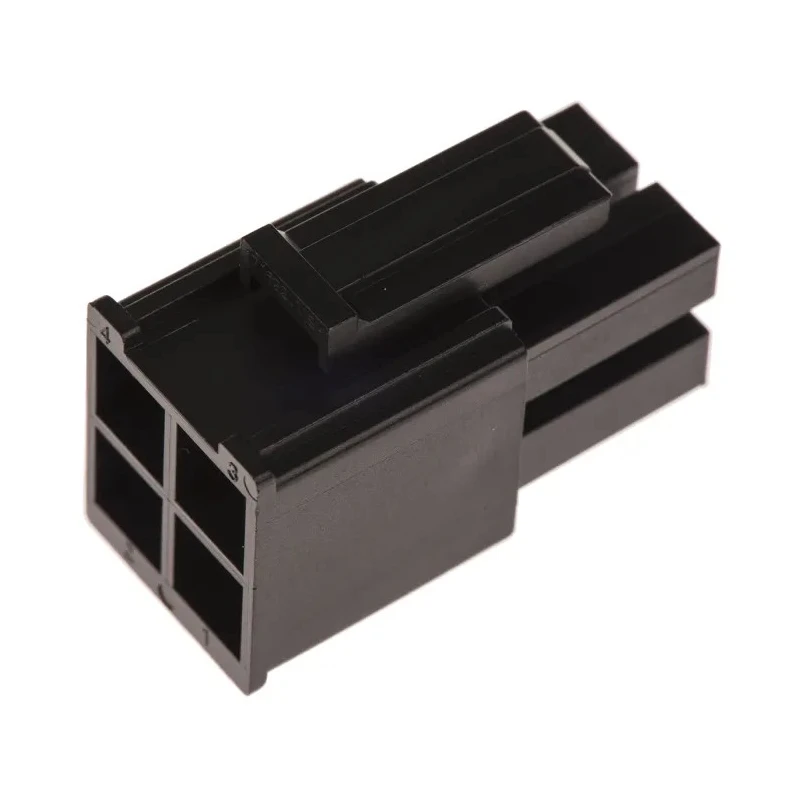

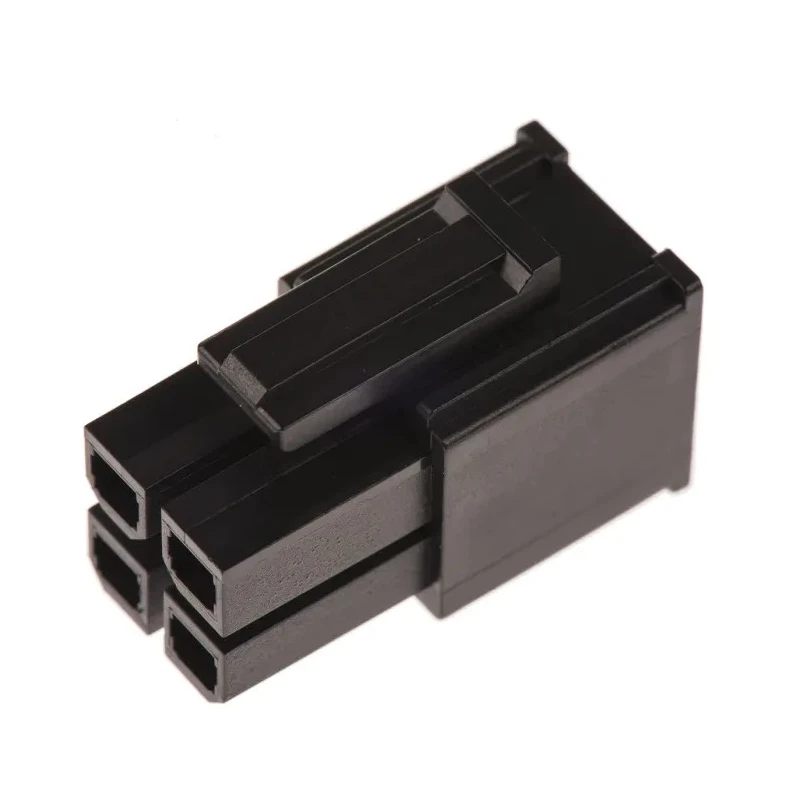

Molex Mega-Fit Male Connector Housing, 5.7 mm Pitch, 4 Way, 2 Row Straight 171692-0104

Molex 171692-0104 Mega-Fit Male Connector Housing is a 4 way, 2 row straight cable mount connector housing designed for reliable and secure electrical connections on PCBs and wire harnesses. Its 5.7 mm pitch ensures a tight connector configuration that supports high current densities up to 23 A per circuit, making it suitable for demanding industrial and commercial applications.

The housing is made from high-quality polybutylene terephthalate (PBT), providing excellent resistance to chemical exposure and thermal stress. This material choice contributes to the connector's durability and long service life under harsh conditions. Additionally, the housing has been tested and approved for flame resistance under UL 94 V-0 standards, reducing fire hazards.

This Mega-Fit series connector features a positive locking mechanism that gives an audible click when fully mated to the corresponding header, ensuring secure electrical connections. The fully isolated terminals enhance user safety by protecting against electric shocks during installation and handling.

With dimensions of 12.05 mm length and 14.26 mm width, the compact design helps optimize PCB layout space. The connector supports wire-to-wire, wire-to-board, and power connector use cases, enabling versatile deployment in electronics assemblies.

The operating temperature range from -40°C to +120°C allows use in extreme environments, including automotive, aerospace, marine equipment, control panels, and automated process applications.

Constructed with durable polybutylene terephthalate housing material resistant to chemicals and heat damage. Positive locking feature provides audible confirmation of secure mating. High current density design supports 23 A per circuit for demanding applications.

Wide operating temperature range from -40°C to +120°C for extreme environment compatibility. Fully isolated terminals ensure electrical safety during handling. Compact dimensions (12.05 mm length, 14.26 mm width) optimize PCB space.

Suitable for wire-to-wire, wire-to-board, and power connector applications. Tested to UL 94 V-0 flame retardant standard for enhanced safety. Applications include control panels, automated processes, marine, automotive, and aerospace industries.

Molex's Mega-Fit connector series provides a reliable power connection system with a tight pitch and positive mechanical engagement for industrial and commercial electronics assembly. This product is designed to meet the challenging requirements of high current density and long-term durability in diverse applications.
