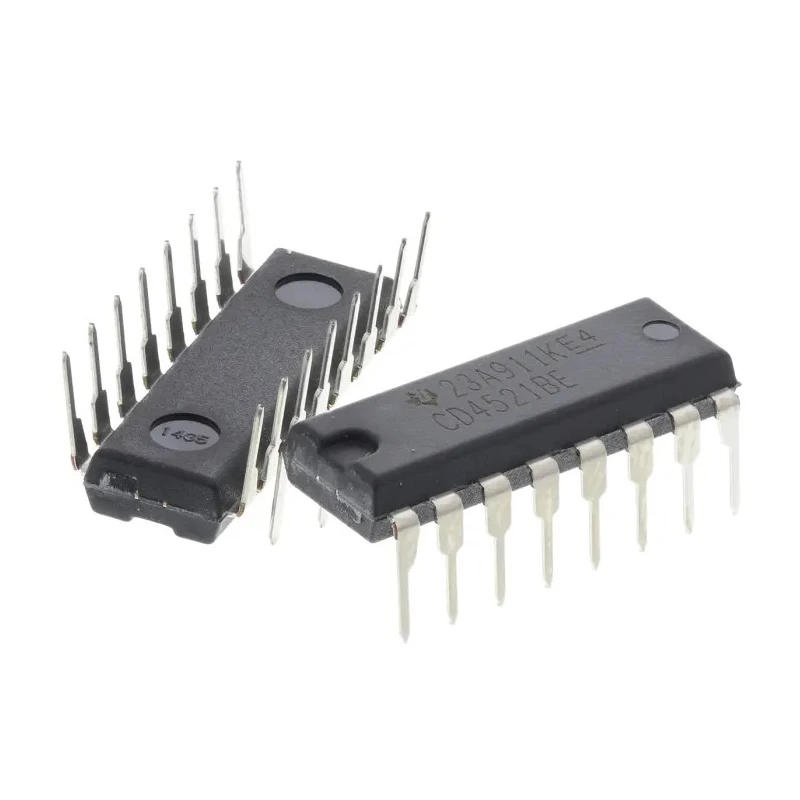

Texas Instruments Frequency Divider 1-Channel 16-Pin PDIP CD4521BE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.69mm |
| Model | CD4521BE |
| Mount Type | Through Hole |
| Series | CD4521B |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 16 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 18V |
| Logic Family | CD4000 |
| Logic Function | Frequency Divider |
| Minimum Supply Voltage | 3V |
| Wide operating voltage range | 3 to 18V |
Key Features
- This frequency divider belongs to the CD4000 CMOS logic family.
- It is a single chip containing one frequency divider element.
- The device uses a through-hole mount with a 16-pin PDIP package.
- It supports a wide operating supply voltage range between 3V and 18V.
- Designed to operate reliably within a temperature range of -55°C to 125°C.
- The IC has physical dimensions of approximately 19.69 mm length and 4.57 mm height.
- It is suitable for various electronic circuits requiring frequency division functionality.
- The product is offered new and compliant with standard manufacturing quality.
Product Description
Texas Instruments CD4521BE is a high-performance frequency divider from the CD4000 CMOS logic family. This device features a single frequency divider channel integrated into a 16-pin PDIP through-hole package. Operating over a wide supply voltage range of 3 to 18 volts, this component is designed to deliver reliable performance in diverse electronic applications.
The IC is manufactured for use in timing and frequency division tasks within industrial, laboratory, and electronic circuit environments. It supports operating temperatures ranging from -55°C to 125°C, ensuring robust operation under extreme conditions.
With compact dimensions of 19.69 mm length and 4.57 mm height, the CD4521BE IC is suitable for use in space-constrained circuit designs. Its through-hole mounting facilitates easy assembly and soldering onto printed circuit boards.
Designed for use in frequency division circuits, this device offers precise logic functionality and is an essential component in timing generation, counters, and frequency synthesis. It is widely used in electronics manufacturing, development labs, and industrial automation systems.
The product is supplied new and packaged in tubes that protect the ICs during handling and automated insertion processes, enhancing production efficiency. This frequency divider is part of the CD4000 CMOS logic family. Single channel frequency division function integrated into a 16-pin PDIP package.
Wide operating voltage from 3V to 18V for versatile applications. Robust operating temperature range from -55°C to 125°C for reliability. Compact size with 19.69 mm length and 4.57 mm height. Through-hole mount suitable for traditional PCB soldering.
Ideal for industrial, laboratory, and electronic circuit timing applications. Provided new and packaged in tubes for manufacturing efficiency. Explore more Electronic Components by Texas Instruments and related frequency divider ICs on EnvMart for reliable industrial and laboratory product sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This frequency divider operates over a wide supply voltage range of 3V to 18V, making it suitable for various applications.
The physical dimensions of this model are approximately 19.69 mm in length and 4.57 mm in height.
The maximum operating temperature for the CD4521BE is 125°C, allowing it to function reliably in high-temperature environments.
This frequency divider has a minimum operating temperature of -55°C, ensuring it can operate in extreme cold conditions.
The CD4521BE features a single frequency divider channel integrated into its design.
This model is packaged in a 16-pin PDIP (Plastic Dual In-line Package) configuration, suitable for through-hole mounting.
The CD4521BE is part of the CD4000 CMOS logic family, which is known for its versatility in electronic applications.
The primary function of the CD4521BE is to serve as a frequency divider, making it useful in timing and frequency generation applications.
This frequency divider has a pin count of 16, which is standard for its package type.
The CD4521BE supports through-hole mounting, which facilitates easy assembly onto printed circuit boards.
The CD4521BE is manufactured in India, ensuring compliance with standard manufacturing quality.
This frequency divider is suitable for various electronic circuits requiring frequency division functionality, particularly in industrial and laboratory settings.
