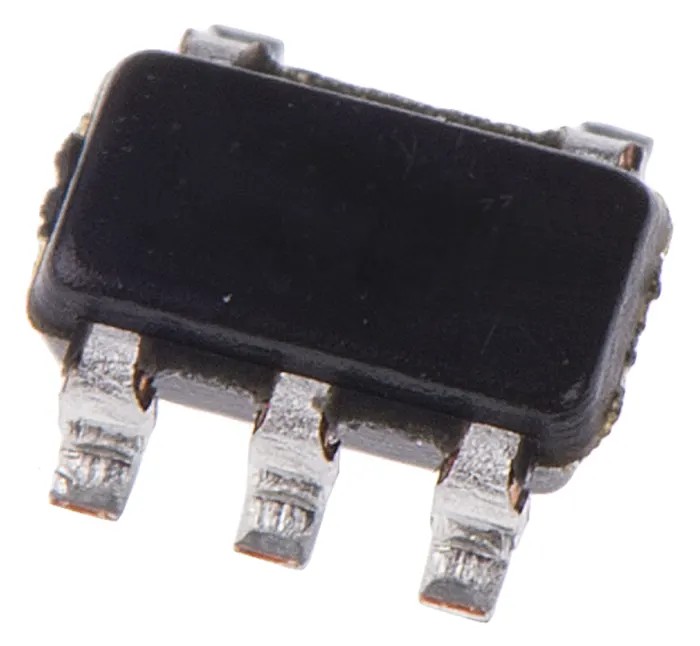

STMicroelectronics Operational Amplifier 900 kHz 5-Pin SOT-23 5.5V TSX561ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TSX561ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TSX561 |
| Output Current | 2.5mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 900kHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 2.2 mV |
| Slew Rate | 1.1V/μs |
| ESD high tolerance | 4 kV |
| Gain bandwidth product | 900 kHz typical |
| Wide temperature range | -40°C to +125°C |
| Low input bias current | 1 pA typical |
Key Features
- Low power consumption with 235 μA typical current at 5 V supply.
- Single channel amplifier suitable for precision analog signal processing.
- Wide operating voltage range from 3 V to 5.5 V for versatile applications.
- High slew rate of 1.1 V/μs ensures fast signal response.
- Low input bias current of 1 pA typical enhances accuracy in sensitive circuits.
- Broad temperature operation range from -40°C to 125°C for harsh environments.
- Compact SOT-23 surface mount package measuring 3 mm x 1.75 mm x 1.3 mm.
- ESD tolerance up to 4 kV and automotive standard AEC-Q100 compliance.
Product Description
STMicroelectronics TSX561ILT is a precision single operational amplifier designed to deliver accuracy and reliable performance with a gain bandwidth product of 900 kHz. Encased in a compact 5-pin SOT-23 surface mount package, it supports low power operation with a supply voltage range from 3 V to 5.5 V making it suitable for compact and low voltage designs.
This amplifier offers a low typical input bias current of 1 pA and an input offset voltage maximum of 2.2 mV, enabling high accuracy signal amplification in sensitive applications. With a high slew rate of 1.1 V/μs, the TSX561ILT can handle fast signal changes efficiently.
Designed to operate in wide temperature ranges from -40°C to +125°C, it is suitable for automotive and industrial environments. Its compliance with automotive AEC-Q100 standard and high ESD tolerance of 4 kV further validate its robustness for demanding applications.
The compact dimensions of 3 mm length, 1.75 mm width, and 1.3 mm height facilitate easy integration on densely packed circuit boards. Typical applications include precision analog signal processing, sensor signal conditioning, and low power battery-operated instruments.
Low power consumption of 235 μA typical at 5 V supply. Surface mount SOT-23 package with a compact footprint. Wide operating voltage and temperature ranges for versatile industrial use. High ESD protection and automotive standard compliance ensure durability.
Single-channel amplifier ideal for space-constrained designs.
Ideal for use in industrial, automotive, consumer electronics, and instrumentation sectors, the TSX561ILT operational amplifier combines precision with energy efficiency and ruggedness. Explore EnvMart’s Electronics & Electricals category for similar Operational Amplifiers and semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 900 kHz, which supports its use in precision analog signal processing applications.
It operates within a supply voltage range of 3 V to 5.5 V, making it suitable for various low voltage applications.
The maximum operating temperature for this operational amplifier is 125°C, allowing it to function in harsh environments.
The TSX561ILT features a low typical input bias current of 1 pA, enhancing accuracy in sensitive circuits.
The SOT-23 package measures 3 mm in length, 1.75 mm in width, and 1.3 mm in height, facilitating easy integration into compact designs.
This operational amplifier has a slew rate of 1.1 V/μs, enabling it to handle fast signal changes effectively.
The TSX561ILT complies with the automotive standard AEC-Q100, ensuring its reliability in automotive applications.
It has an ESD tolerance of up to 4 kV, providing protection against electrostatic discharge in sensitive applications.
This model is a single-channel amplifier, making it suitable for applications that require a single signal path.
The maximum input offset voltage for the TSX561ILT is 2.2 mV, contributing to its accuracy in signal amplification.
The typical current consumption for this operational amplifier is 235 μA at a 5 V supply, supporting low power applications.
The minimum operating temperature for the TSX561ILT is -40°C, allowing it to perform in extreme conditions.
