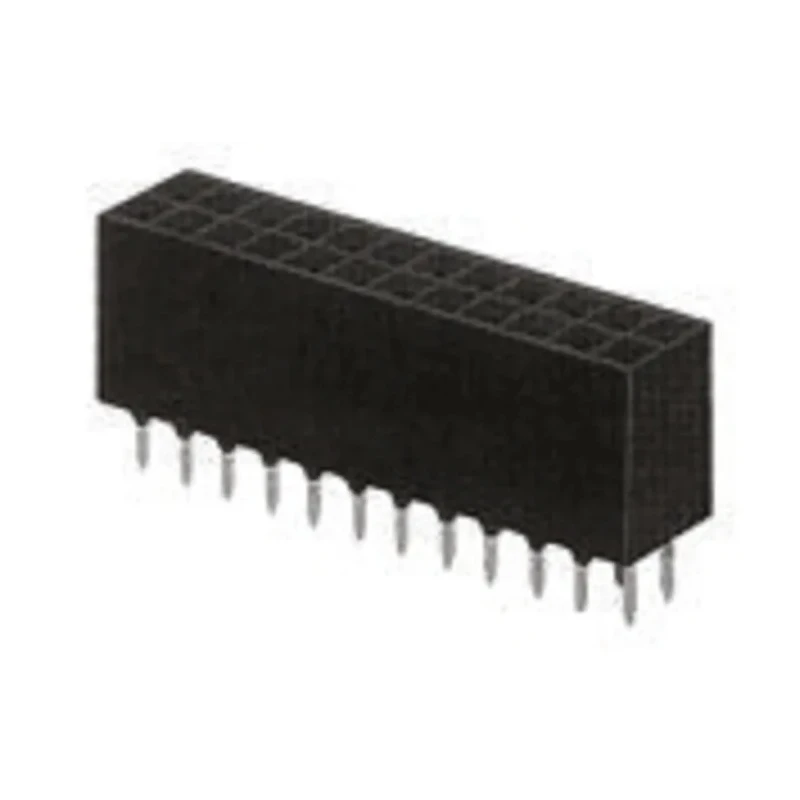

TE Connectivity AMPMODU MOD II Series Straight Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch Solder 7-534206-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features a straight orientation for through-hole mounting on PCBs.
- Constructed with polyamide housing suitable for high-temperature applications.
- Bronze female contacts plated with tin ensure durability and corrosion resistance.
- Rated for 12 A current and 750 V voltage for robust electrical performance.
- Operates reliably in temperature ranges from -65°C to 105°C.
- Designed with AMPMODU MOD II series for end stackable and closed entry housing to prevent damage during assembly.
- Ideal for automation, control systems, and industrial electronics requiring compact and economical connectors.
- Complies with 94V-0 thermoplastic flammability rating for enhanced safety.
Product Description
TE Connectivity 7-534206-0 AMPMODU MOD II Series Straight Through Hole PCB Socket is engineered for high reliability in demanding industrial and electronic applications. This 40-contact, 2-row socket features a 2.54 mm pitch suitable for board-to-board interconnection in automation and control systems.
The polyamide housing is designed to withstand high temperature environments with an operating range from -65°C up to 105°C. Bronze female contacts with tin plating provide excellent conductivity and corrosion resistance, supporting a current rating of 12 A and voltage rating of 750 V.
The AMPMODU MOD II series incorporates end stackable closed entry housings to prevent post stubbing and ensure ease of assembly. The straight orientation and through-hole mount type guarantee a secure and stable connection on printed circuit boards.
This connector is well-suited for industrial uses in manufacturing, testing equipment, and electronic control panels, offering compact size and cost-effective board-to-board connectivity solutions.
Straight orientation for through-hole mounting. Polyamide housing with UL 94V-0 rating offers flame retardance. Bronze female contacts with tin plating for durability. Rated for 12 A current and 750 V voltage. Operating temperature range is -65°C to 105°C.
AMPMODU MOD II series with end stackable design and closed entry housing. Ideal for automation and industrial electronic control applications. Set contains one TE Connectivity AMPMODU MOD II Receptacle Assembly, model 7-534206-0, supplied in tube packaging suitable for production line insertion.
Explore EnvMart's extensive range of PCB Sockets and connectors ideal for electronics manufacturing and prototyping.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 12 A.
It has a voltage rating of 750 V.
The operating temperature range is from -65°C to 105°C.
The housing is made of polyamide, and the contacts are bronze with tin plating.
This unit features 40 contacts arranged in 2 rows.
It employs a through-hole mounting type for secure installation on PCBs.
The pitch size is 2.54 mm, suitable for board-to-board interconnection.
Yes, it complies with the UL 94V-0 thermoplastic flammability rating.
The socket features a straight orientation for through-hole mounting.
It is ideal for automation, control systems, and industrial electronics requiring compact connectors.
The termination type for this model is solder, ensuring a secure connection.
The country of origin for this socket is India.
