| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN18NG00D |
| Depth | 0.6mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 18nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 370mA |
| Pin Count | 2 |
| Maximum DC Resistance | 270mΩ |
| Inductance Tolerance | ±2 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 4.5GHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |
Murata LQW15AN18NG00D is an unshielded wirewound surface mount inductor in the 0402 package with a ferrite core, offering an inductance of 18 nH with a tight tolerance of ±2%. This component supports a maximum DC current of 370 mA and features a high quality factor of 25, providing excellent performance at high frequencies.

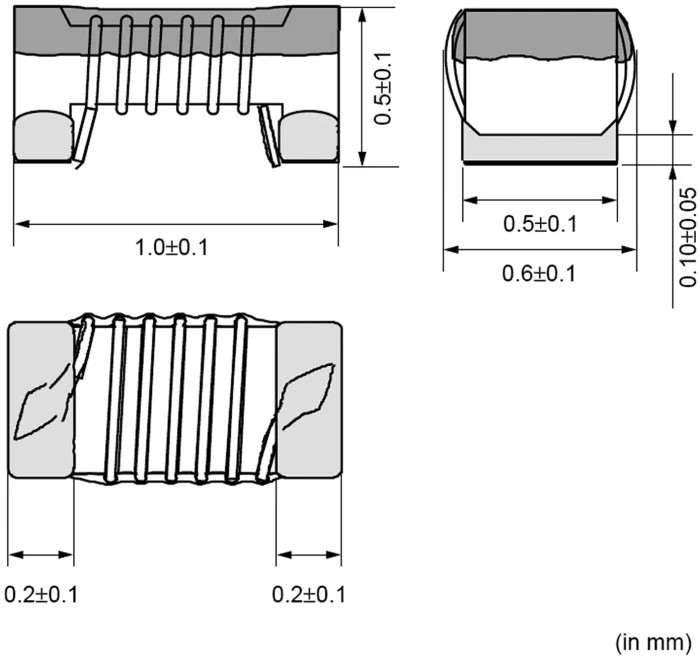

The compact physical dimensions of 1 mm length, 0.6 mm depth, and 0.5 mm height make it suitable for dense PCB layouts. Its wirewound construction and ferrite material core deliver low losses and high reliability, essential for VHF and UHF frequency applications such as Bluetooth, GSM, and WLAN wireless communication equipment.
With an operating temperature range of -55°C to 125°C and RoHS compliance, this inductor is designed for robust performance in industrial and commercial electronic equipment. The solder termination style ensures reliable PCB mounting, and the product is supplied in paper tape packaging for efficient automated insertion during manufacturing.
Typical applications include high frequency circuits requiring precise inductance, low resistance, and stable quality factors. The maximum self-resonant frequency of 4.5 GHz enables operation well beyond VHF ranges, making it suitable for modern telecommunications and signal filtering tasks.
This inductor is molded and meets automotive standards exclusion, aligning with the LQW series specifications by Murata. It is a trusted choice for electronic engineers needing a reliable surface mount component for advanced electronic designs.
Inductance tolerance ensures precise circuit behavior. Ferrite core delivers magnetic stability under varied conditions. Molded construction increases mechanical strength. Packaging supports automation efficiency for production.
Compatible with LAN interface environments. Explore the full range of Surface Mount Inductors and related electronic components on EnvMart to find the perfect solution for your design requirements.
