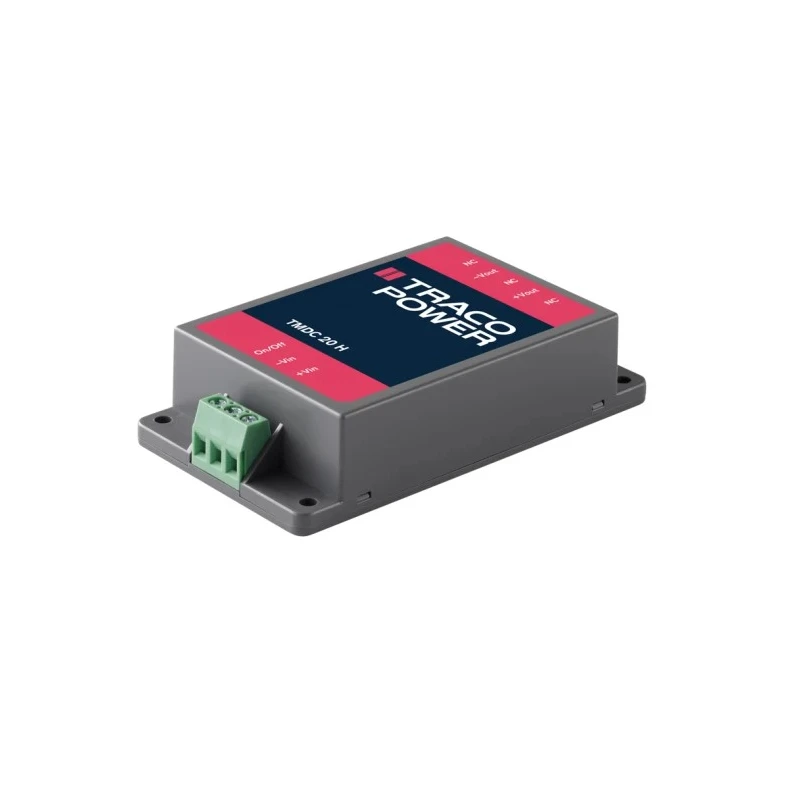

TRACOPOWER Industrial DC/DC Converter , 24V DC Output, 160V DC Max Input, 420mA Output Current, Chassis Mount TMDC 20-7225H
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMDC 20H DC/DC Converter, 24V dc/, 160V |
| Brand | TRACOPOWER |
| Efficiency | 0.87% |
| Length | 96mm |
| Model | TMDC 20-7225H |
| Depth | 23.3mm |
| Gross Weight | 107g |
| Width | 54mm |
| Mount Type | Chassis Mount |
| Series | TMDC 20H |
| Maximum Operating Temperature | 85°C |
| Package Type | Plastic Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 697000h |
| Number of outputs | 2 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 80V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 420mA |
| Isolation Voltage | 3kV |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -24V dc |
Key Features
- Delivers isolated 2-output DC/DC conversion with 20W maximum power.
- Operates with input voltage range between 80V and 160V DC for versatile industrial applications.
- Includes an isolation voltage of 3000 VAC enhancing safety and noise reduction.
- Provides stable output current of 420 mA with 200 mV peak-to-peak ripple and noise.
- Robust chassis mount design in plastic case ensures ease of installation and durability.
- High mean time between failures (MTBF) rated at 697,000 hours for reliable long-term operation.
- Operating efficiency rated at 87% to optimize power utilization.
- Compact dimensions measuring 96mm length, 54mm width, and 23.3mm depth.
Product Description
TRACOPOWER TMDC 20-7225H is a high-performance industrial DC/DC converter designed for reliable power supply applications requiring isolated dual outputs. This model delivers a nominal 24V DC output voltage with a peak output power of 20W and supports an input voltage range from 80 to 160V DC. Encased in a robust plastic chassis mount case, it facilitates easy installation into panels or equipment racks.
The converter ensures high electrical isolation with a reinforced 3000 VAC isolation voltage, protecting sensitive electronics from voltage spikes and noise disturbances. It maintains excellent output voltage regulation with low ripple and noise of 200 mV peak-to-peak to ensure stable operation of connected loads.
With an impressive MTBF of 697,000 hours, this model offers dependable long-term service suitable for industrial, laboratory, manufacturing, and instrumentation environments. It possesses integrated filters guaranteeing immunity to electromagnetic interference (compliant with EN 55035) and emission standards (EN 55032).
The product operates effectively under wide temperature extremes, ranging from -40°C to +85°C, making it ideal for demanding environments. Its compact size (96mm × 54mm × 23.3mm) and lightweight plastic casing (approximately 107g) enable installation in space-restricted applications.
Isolated 2-output 20W DC/DC converter with high 2:1 input voltage ratio. Wide input voltage range from 80V to 160V DC supports various industrial power sources. Reinforced 3000 VAC isolation voltage ensures enhanced electrical safety and noise immunity.
Chassis mount package in durable plastic case for easy, secure mounting in equipment enclosures. Integrated EMC filters comply with IEC EN 55035 and EN 55032 emission standards. High reliability demonstrated by MTBF of 697,000 hours for continuous operation.
Operating temperature range from -40°C to +85°C allows use in extreme conditions. Compact physical dimensions and light weight support flexible installation options.
This TRACOPOWER DC/DC converter is engineered for demanding industrial applications comprising power supplies for electronic instrumentation, communication equipment, and process control systems. Its enhanced isolation, regulated outputs, and high efficiency make it a critical component in robust industrial power architectures.
EnvMart provides detailed industrial electronic components category, including premium TRACOPOWER DC/DC Converters for reliable power conversion and management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a nominal output voltage of 24V DC with a maximum output current of 420 mA.
The input voltage range for this unit is between 80V and 160V DC.
The maximum output power of the TMDC 20-7225H is 20W.
It features a reinforced isolation voltage of 3000 VAC, enhancing safety and noise immunity.
This model has compact dimensions of 96mm in length, 54mm in width, and 23.3mm in depth.
The operating temperature range for this unit is from -40°C to +85°C.
The operating efficiency of this model is rated at 87%.
The output voltage has a ripple and noise specification of 200 mV peak-to-peak.
It is designed for chassis mounting, which facilitates easy installation into panels or equipment racks.
The MTBF for the TMDC 20-7225H is rated at 697,000 hours, indicating reliable long-term operation.
The integrated EMC filters comply with IEC EN 55035 and EN 55032 emission standards.
This model is engineered for demanding industrial applications, including power supplies for electronic instrumentation and communication equipment.
