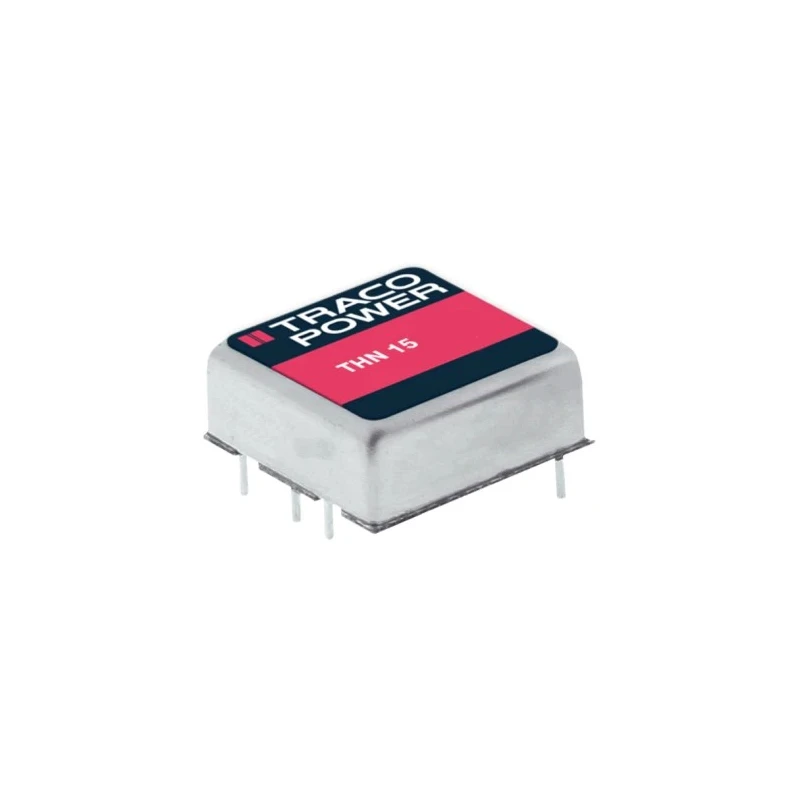

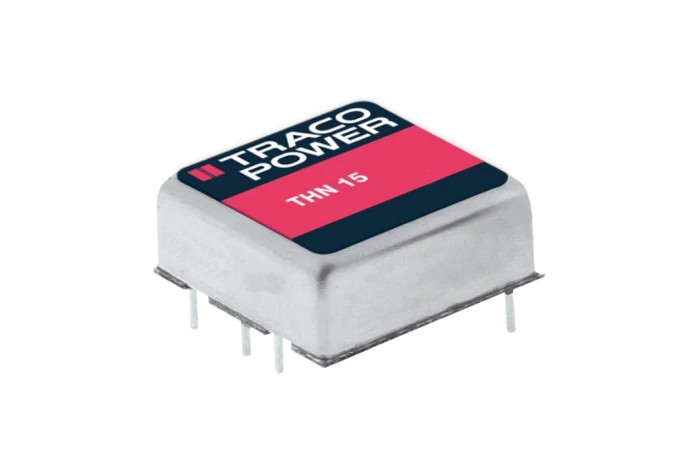

TRACOPOWER 15W High-Efficiency DC/DC Converter, 5V DC 1.5A Output, 36V DC Input, Through Hole DIP Package THN 15-2421
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THN 15 DC/DC Converter, 5V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 0.85% |
| Length | 25.4mm |
| Model | THN 15-2421 |
| Depth | 9.9mm |
| Gross Weight | 15g |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | THN 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1600000h |
| Number of outputs | 2 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 1.5A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -5V dc |
Key Features
- High-efficiency up to 88% for energy-saving operation.
- Isolation voltage of 1.5kV DC ensures electrical safety.
- Operating temperature range from -40°C to +85°C for harsh environments.
- Compact dimensions of 25.4mm length, 25.4mm width, and 9.9mm depth with 6 pins.
- Low ripple and noise of 75mV peak-to-peak for stable output.
- Remote On/Off and trimmable output voltage for flexible control.
- Ideal for mobile equipment, instrumentation, and industrial electronics.
- Long MTBF of 1,600,000 hours for reliable continuous performance.
Product Description
TRACOPOWER THN 15-2421 is a high-performance 15W DC/DC converter module designed for compact PCB integration. It provides a regulated 5V DC output voltage with a current capacity of 1.5A, supporting a wide input voltage range of 18V to 36V DC. Featuring through-hole mounting in a robust DIP package, this converter operates efficiently up to 88%, minimizing power loss and heat generation.
Its electrically isolated output with an isolation voltage rating of 1.5kV DC increases safety and system reliability. The device is suitable for deployment in various industrial and commercial electronic applications such as mobile equipment, instrumentation, and distributed power architectures found in communication systems.
Designed to perform reliably in wide temperature ranges from -40°C to +85°C, the THN 15-2421 ensures dependable operation even in challenging environmental conditions. The converter includes features like remote On/Off control and trimmable output for precise voltage adjustments.
The shielded metal case with isolated baseplate offers excellent EMI/RFI protection while optimizing PCB space. The standard pinout and compact dimensions (25.4mm x 25.4mm x 9.9mm) facilitate straightforward integration into equipment designs requiring space efficiency and high power density.
Operational reliability is further emphasized by its high MTBF of 1,600,000 hours. This converter is ideal for industrial, communication, laboratory, and mobile device applications where efficient, stable, and isolated DC power conversion is critical.
High-efficiency operation up to 88%. Wide 2:1 input voltage range. Electrical isolation of 1.5kV DC. Operating temperature range from -40°C to +85°C. Compact through-hole DIP package. Low output ripple and noise of 75mV peak-to-peak.
Remote On/Off control. Trimmable output voltage. Long MTBF of 1,600,000 hours. Shielded metal case with isolated baseplate. Explore more DC/DC Converters for reliable power supply solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 15W.
It supports a wide input voltage range from 18V to 36V DC.
The converter operates with an efficiency of up to 88%.
The dimensions of this unit are 25.4mm in length, 25.4mm in width, and 9.9mm in depth.
It features an isolation voltage of 1.5kV DC, enhancing electrical safety.
This unit operates effectively within a temperature range of -40°C to +85°C.
Yes, it includes a remote On/Off control feature for flexible operation.
It provides a regulated output voltage of 5V DC with a current capacity of 1.5A.
The output ripple and noise is low, at 75mV peak-to-peak.
The mean time between failures (MTBF) for this model is 1,600,000 hours.
It utilizes a through-hole mounting method in a DIP package.
This converter is suitable for industrial, communication, laboratory, and mobile device applications.
