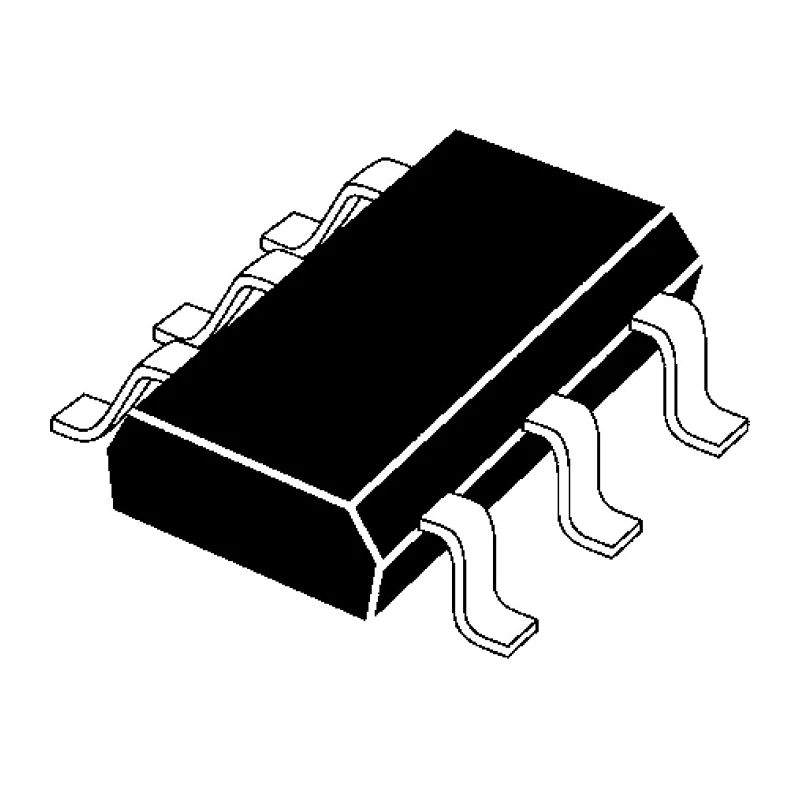

onsemi 4-Element Uni-Directional TVS Diode Array, 500 W, 6-Pin SOT-363 NUP4202W1T2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 2.2mm |
| Model | NUP4202W1T2G |
| Width | 1.35mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-363 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 4 |
| Clamping Voltage VC | 20V |
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 8A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- Features a complex array diode configuration for reliable transient voltage suppression.
- Uni-directional design suitable for precise circuit protection.
- Operates across a temperature range from -40°C to 125°C.
- Maximum reverse stand-off voltage of 5 V with a breakdown voltage starting at 6 V.
- Peak pulse current rating of 8 A ensures robust protection against voltage spikes.
- Compact dimensions measuring 2.2 mm length, 1.35 mm width, and 1 mm height.
- Low maximum reverse leakage current of 5 μA for energy efficient operation.
- Compatible with surface mount technology for ease of PCB integration.
Product Description
onsemi NUP4202W1T2G is a 4-element uni-directional TVS diode array designed to protect sensitive electronic circuits from transient voltage events. Its 500 W peak pulse power dissipation rating makes it suitable for industrial and commercial electronic protection needs where high energy surges occur.
This device features complex array diode configuration providing reliable transient voltage suppression while ensuring low leakage current and efficient performance. It operates reliably across a wide temperature range from -40°C to 125°C, making it appropriate for harsh operating environments.
Compactly packaged in a 6-pin SOT-363 surface mount package with dimensions of 2.2 mm x 1.35 mm x 1 mm, it facilitates easy integration into densely populated circuit boards.
The diode array offers a maximum reverse stand-off voltage of 5 V and a minimum breakdown voltage of 6 V, making it ideal for protecting low voltage electronics. Its peak pulse current capacity is rated at 8 A, allowing it to handle large transient current events safely.
Applications include industrial electronics, telecommunications equipment, automotive circuits, and any sensitive electronic boards exposed to electrostatic discharge (ESD) or voltage spikes. The device complies with ESD protection standards but does not bear specific industry approvals.
Features a complex array diode configuration for transient voltage suppression. Uni-directional design ensures precise and robust circuit protection. Operates from -40°C to 125°C for wide industrial temperature suitability.
Peak pulse power dissipation rated at 500 W for high energy surge handling. Surface mount 6-pin SOT-363 package for compact PCB design. Low leakage current reduces power loss and enhances efficiency. Suitable for automotive and industrial electronic applications.
Provides ESD protection to improve device longevity.
Choose onsemi's NUP4202W1T2G for reliable, high-performance transient voltage protection in your electronic design projects. Browse the Electronics & Electricals category at EnvMart for similar semiconductor protection components and advanced TVS Diode Arrays.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this model is 5 V.
It has a peak pulse power dissipation rating of 500 W, suitable for handling high energy surges.
This unit operates reliably across a temperature range from -40°C to 125°C.
The peak pulse current rating is 8 A, allowing it to handle large transient current events safely.
The dimensions of the SOT-363 package are 2.2 mm in length, 1.35 mm in width, and 1 mm in height.
The minimum breakdown voltage for this model is 6 V, making it suitable for protecting low voltage electronics.
The maximum reverse leakage current is 5 μA, which contributes to energy-efficient operation.
This diode array features a complex configuration with 4 elements per chip.
Yes, it is compatible with surface mount technology, facilitating easy integration into PCB designs.
It is suitable for applications in industrial electronics, telecommunications equipment, automotive circuits, and sensitive electronic boards exposed to ESD or voltage spikes.
This model uses a complex array diode configuration for reliable transient voltage suppression.
The clamping voltage (VC) for this device is 20 V, providing additional protection against voltage spikes.
