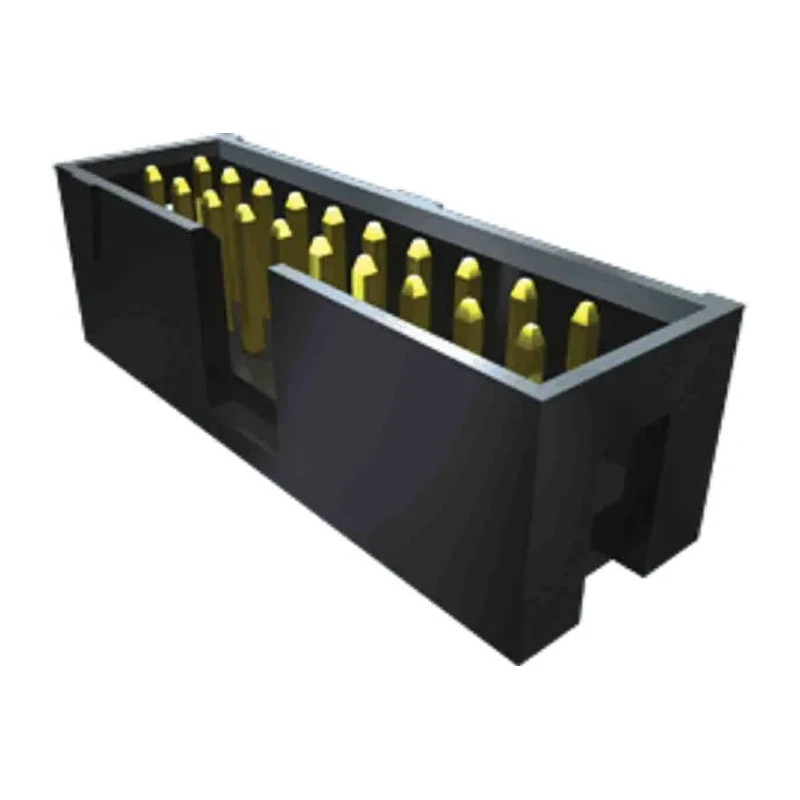

Samtec Shrouded Straight Through Hole PCB Header 16 Contacts 2.54 mm Pitch 2 Row TSS-108-01-T-D

Samtec TSS-108-01-T-D is a shrouded straight through hole printed circuit board (PCB) header designed for board-to-board connectivity applications requiring 16 male contacts arranged in 2 rows with a 2.54 mm pitch. The housing is made from durable black glass filled polyester, providing excellent insulation and mechanical robustness for industrial and commercial electronic assemblies.

The contact material is phosphor bronze plated with either gold or tin over a nickel base, ensuring low contact resistance and excellent corrosion resistance. The connector supports a continuous current rating of 3 amperes and a maximum voltage rating of 1000 volts, suitable for moderate power electronic applications.

Operating temperature ranges from -55°C to +125°C for versions with gold plating, and up to +105°C with tin plating, making this connector suitable for applications in environments requiring extended temperature tolerance. The shrouded design enhances connector mating accuracy and safeguards contacts from accidental damage or contamination.

This PCB header is through hole mounted and intended for solder termination, allowing secure mechanical and electrical connection to the PCB. Insulation resistance is rated at a minimum of 5000 megaohms, ensuring electrical isolation between contacts.

The product is RoHS compliant and meets UL 94V-O flammability ratings, providing environmentally friendly compliance and safety standards required in many industrial and electronic equipment manufacturing scenarios.

Constructed with glass filled polyester housing for mechanical and thermal stability. Phosphor bronze contacts plated with gold or tin provide excellent conductivity and corrosion resistance. Shrouded, 2 row connector with 16 male contacts on 2.54 mm pitch spacing.

Rated for 3 A current and 1000 V voltage, suitable for moderate power PCB applications. Wide operating temperature range from -55°C to +125°C (gold plating).

Typical industrial uses include electronic assemblies in control systems, instrumentation, telecommunications, and power distribution equipment where reliable board-to-board connections are necessary. The robust construction and finish ensure durability under thermal cycling and repeated mating cycles.
