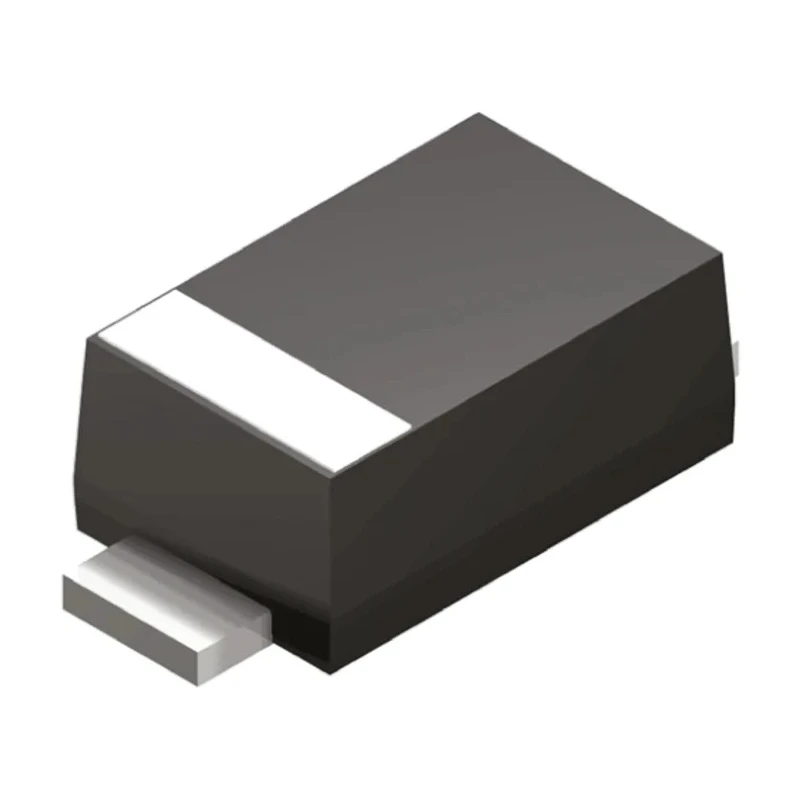

Nexperia Uni-Directional 1-Element TVS Diode 2-Pin SOD-123 400 W PTVS3V3S1UR,115

Nexperia PTVS3V3S1UR,115 is a uni-directional transient voltage suppressor (TVS) diode designed for high reliability surge protection in electronic circuits. With a peak pulse power dissipation of 400 W and a 2-pin SOD-123 surface mount package, this diode is suited for protecting sensitive semiconductor devices from voltage spikes and transients encountered during operation.

This single-element diode configuration offers effective clamp voltage performance at 8 V and has a minimum breakdown voltage of 5.2 V, ensuring precise clamping action to safeguard downstream components. The device can operate safely over a wide temperature range from -55°C to a maximum of 150°C, making it suitable for various industrial, automotive, and electronic applications.

The compact dimensions of 2.8 mm length, 1.9 mm width, and 1.1 mm height aid in high-density PCB layout designs. It also features excellent electrostatic discharge (ESD) protection and complies with the AEC-Q101 automotive standard, providing confidence in harsh environments and transportation electronics.

Its low maximum reverse leakage current of 600 μA and a peak pulse current rating of 43.8 A add reliability in transient suppression functions. Being surface-mounted, this diode is ideal for modern automated assembly and offers ease of integration into power management, telecommunications, industrial controls, and consumer electronics circuits.

This diode features a single-element diode configuration. It provides peak pulse power dissipation of 400 W for transient voltage suppression. The device operates within a temperature range of -55°C to 150°C. Clamping voltage is rated at 8 V with a minimum breakdown voltage of 5.2 V.

The package type is compact SOD-123 designed for surface mounting. The diode supports electrostatic discharge (ESD) protection and meets the automotive AEC-Q101 standard. Maximum reverse leakage current is 600 μA ensuring low leakage in operation.

The diode has a maximum peak pulse current of 43.8 A, suitable for robust transient voltage handling. The device dimensions are 2.8 mm length, 1.9 mm width, and 1.1 mm height for space-efficient PCB designs.

This transient voltage suppressor is essential for industrial, automotive, telecommunications, and electronic equipment circuit protection. It ensures longevity and reliability by protecting against voltage surges that can damage sensitive components.
