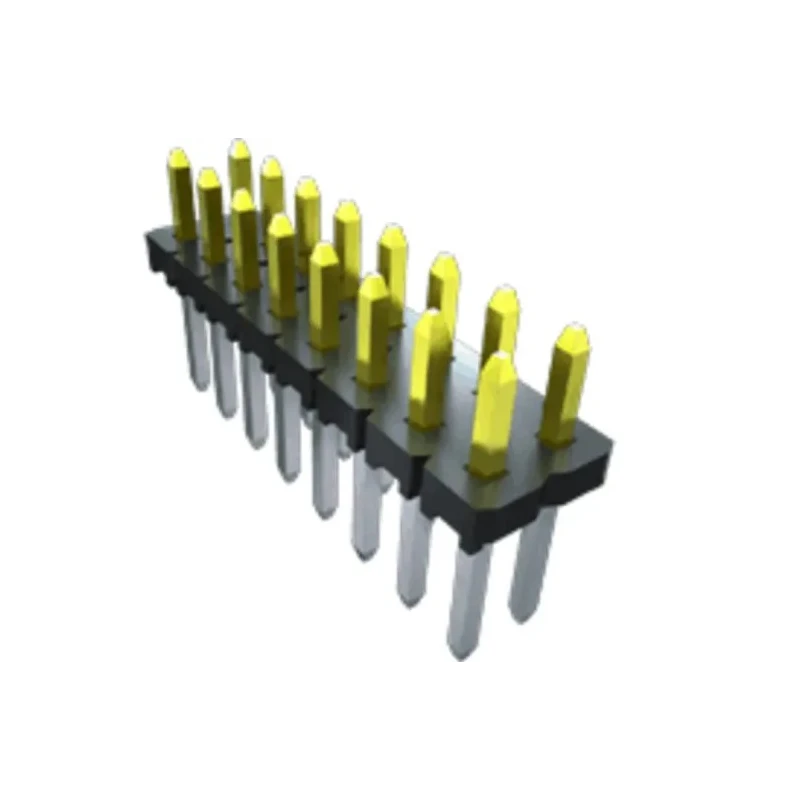

Samtec TLW Series Straight Through Hole Pin Header 10 Contact Pins 2.54 mm Pitch 2 Row Unshrouded TLW-105-06-G-D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.2A |
| Model | TLW-105-06-G-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TLW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 4.32mm |
| Mating Pin Length | 2.67mm |
Key Features
- Constructed with phosphor bronze contacts plated in gold for optimal conductivity.
- Housing made from durable black liquid crystal polymer insulating material.
- Designed for through hole mounting with solder termination type.
- Rated for a current of 5.2 amperes per contact pin.
- Operates within a wide temperature range from -55°C to 125°C.
- Features a male contact gender and 2.54 mm row pitch.
- Tail pin length measures 4.32 mm and mating pin length 2.67 mm for secure connections.
- Ideal for electronic industrial applications requiring reliable PCB connectors.
Product Description
Samtec TLW-105-06-G-D is a high quality PCB straight through hole pin header from the TLW series, featuring 10 contact pins arranged in 2 rows with a standard 2.54 mm pitch. This unshrouded connector ensures secure board-to-board electrical connection and is suitable for industrial electronics and power supply applications requiring stable current conduction.
The connector housing is crafted from black liquid crystal polymer which provides excellent insulation and mechanical durability. Contact pins are made of phosphor bronze and plated with gold to withstand corrosion and ensure high conductivity over time.
The pin header supports a current rating of 5.2A per contact and operates reliably from -55°C up to 125°C, making it ideal for harsh environment electronics. Its through hole mounting and solder termination ensure strong mechanical fixation on printed circuit boards.
Additional features include a tail pin length of 4.32 mm and mating pin length of 2.67 mm, supporting robust and precise mating with complementary connectors. The straight orientation and 2-row configuration help achieve compact and efficient PCB designs.
This Samtec TLW series pin header is compliant with RoHS standards, reflecting its environmental safety. It is highly recommended for use in industrial, electronic component assemblies, communication devices, and other manufacturing applications requiring reliable PCB connectors.
Constructed with phosphor bronze contacts plated in gold for optimal conductivity. Housing made from durable black liquid crystal polymer insulating material. Designed for through hole mounting with solder termination type.
Rated for a current of 5.2 amperes per contact pin. Operates within a wide temperature range from -55°C to 125°C. Features a male contact gender and 2.54 mm row pitch. Tail pin length measures 4.32 mm and mating pin length 2.67 mm for secure connections.
Ideal for electronic industrial applications requiring reliable PCB connectors. Explore the full range of Samtec connectors and PCB header products on EnvMart to find compatible components for your electronic projects and assemblies.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header is rated for a current of 5.2 amperes per contact pin.
It operates within a temperature range from -55°C to 125°C.
This model features 10 contact pins arranged in 2 rows.
The contact pins have a pitch of 2.54 mm.
The contacts are made of phosphor bronze and plated with gold, while the housing is made from liquid crystal polymer.
It uses a solder termination type for secure connections.
The tail pin length measures 4.32 mm.
The mating pin length is 2.67 mm.
This pin header is unshrouded, allowing for easy access to the pins.
The orientation of this pin header is straight.
It is ideal for industrial electronics and power supply applications requiring stable current conduction.
The pin header is manufactured in India.
