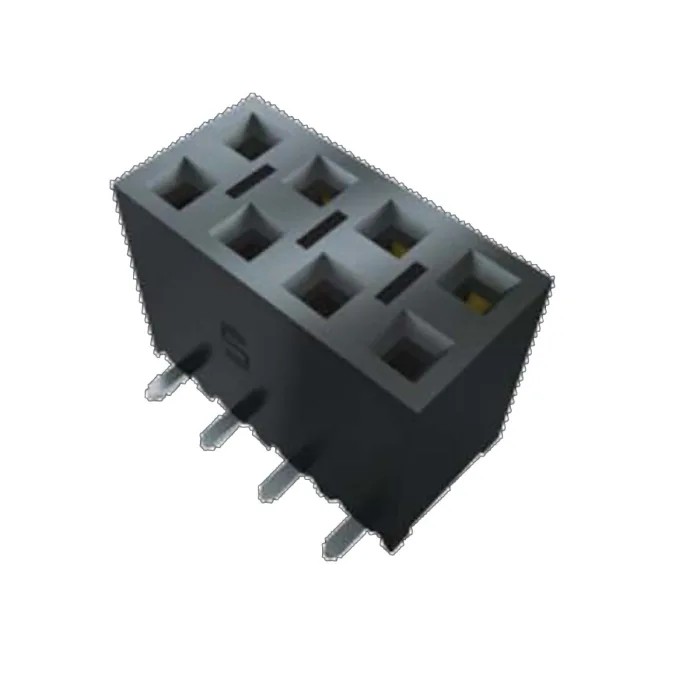

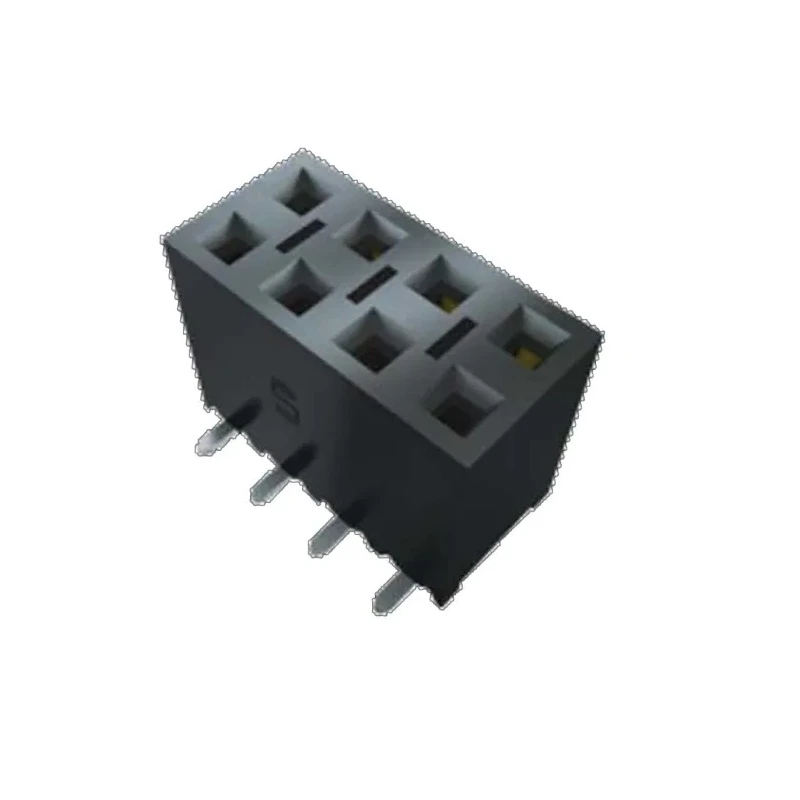

Samtec SSM Series Straight Surface PCB Socket 2-Contact 1 Row 2.54 mm Pitch Surface Mount SSM-122-L-SV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 572V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.2A |
| Model | SSM-122-L-SV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Current Rating | 5.2A per pin(2 pins powered) |
| Series | SSM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Normal Force | 125grams (1.21N) average |
Key Features
- Constructed with black liquid crystal polymer housing for durability and high performance.
- Phosphor bronze female contacts plated with gold ensure reliable electrical connectivity.
- Rated for a current of 5.2 amperes per pin, supporting 2 pins powered.
- Designed with straight orientation and surface mount termination type for board-to-board system integration.
- Operational voltage rating up to 572 volts withstanding wide temperature range from -55°C to 125°C.
- Normal force averages 125 grams ensuring secure contact retention during operation.
- Compatible for industrial electronics and electrical component assemblies needing precise PCB socket solutions.
Product Description
Samtec SSM-122-L-SV is a high-quality straight surface PCB socket featuring 2 contacts arranged in a single row with a 2.54 mm pitch, engineered for reliable surface mount applications in electronic circuits.
The socket housing is crafted from black liquid crystal polymer, offering robust insulation and durability even under challenging environmental conditions. The female contacts are made of phosphor bronze and are gold plated to ensure excellent conductivity and corrosion resistance.
With a current rating of 5.2 amperes per pin (2 pins powered), this socket supports high power electronic connections. It features a normal retention force of 125 grams (1.21 N average), maintaining consistent electrical contact integrity.
Rated for a voltage of up to 572 volts, the socket operates safely within a temperature range from -55°C to 125°C, catering to both industrial and laboratory environments. The straight mount design provides easy integration in board-to-board connector systems, making it suitable for applications in telecommunications, computing, industrial automation, and electronic assembly manufacturing.
Constructed with liquid crystal polymer housing for high insulation and durability. Gold plated phosphor bronze female contacts for excellent electrical performance. Supports 5.2A current per pin for robust electrical handling capabilities.
Surface mount termination type with straight orientation for versatile PCB mounting. Wide operating temperature range from -55°C to 125°C for diverse applications. Normal force of 125 grams to ensure secure contact retention under vibration and thermal cycling.
Ideal for high-reliability industrial, electronic, and manufacturing environments.
This accurate and robust PCB Socket by Samtec is ideal for engineers and manufacturers seeking reliable board-to-board connections in high-density PCB assemblies and electronic devices.
Browse more connectors and sockets from the Samtec SSM series in EnvMart's Electronics Components category for advanced electronics assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SSM-122-L-SV PCB socket has a current rating of 5.2 amperes per pin, supporting 2 pins powered.
This socket is rated for a maximum operating voltage of 572 volts.
The housing is made from black liquid crystal polymer, and the female contacts are made of phosphor bronze with gold plating for improved conductivity.
It operates safely within a temperature range from -55°C to 125°C.
This model features 2 contacts arranged in a single row.
The SSM-122-L-SV uses a surface mount termination type.
The normal force averages 125 grams (1.21 N), ensuring secure contact retention during operation.
Yes, it is designed for board-to-board connector systems, making it suitable for various electronic applications.
The pitch size for this model is 2.54 mm.
It is suitable for applications in telecommunications, computing, industrial automation, and electronic assembly manufacturing.
The SSM-122-L-SV is manufactured in India.
This socket features female contacts.
