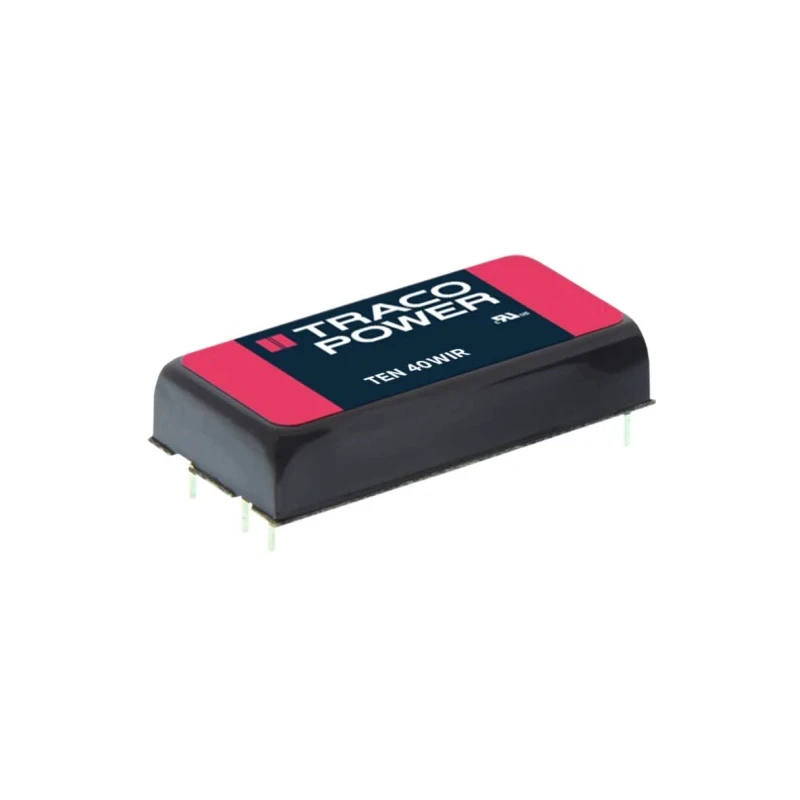

TRACOPOWER 40W Single/Dual Output Regulated Isolated DC/DC Converter, 12V DC Output, 1.666 A, 36V DC Max TEN 40-2422WIR

The TRACOPOWER TEN 40-2422WIR is a 40W single or dual output regulated isolated DC/DC converter engineered for high efficiency up to 90% and compact footprint ideal for printed circuit board mounting. It delivers a stable 12V DC output at 1.666A while accepting a wide input voltage range from 9V minimum to 36V maximum, providing flexibility for various power supply conditions.

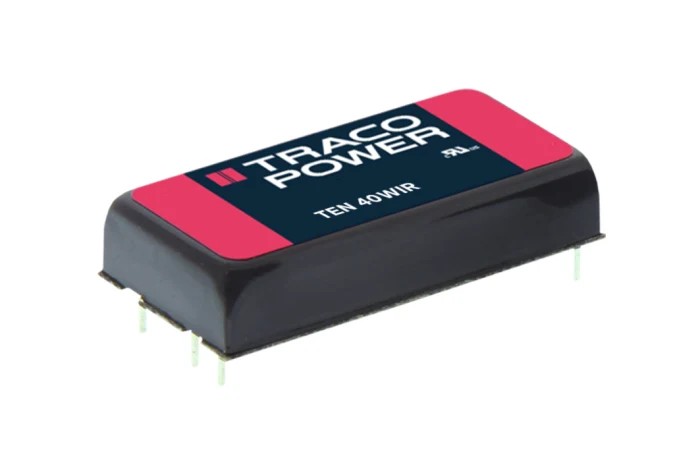

This converter is housed in a rugged metal case measuring 50.8mm in length and 10.2mm in depth, designed to withstand harsh operating environments with thermal shock and vibration resistance, and an operating temperature range from -40°C up to 85°C. The device features two isolated outputs and six pins, ensuring safe and reliable power conversion with a 1.6kV DC isolation voltage.

Key integrated features include under-voltage lockout, over-voltage protection, short circuit protection, and remote On/Off control that makes it well suited for use in battery-powered and industrial control applications. It requires no minimum load for stable operation.

With a 900,000 hours MTBF rating, the TEN 40WIR converters offer long-term reliability for demanding systems. Typical applications include wireless networks, telecom and datacom systems, industrial controls, and measurement equipment. The converter complies with lead-free and RoHS standards, supporting environmentally conscious designs.

Maximum input voltage of 36V DC supports high voltage supply systems. Minimum input voltage of 9V DC accommodates lower voltage inputs. High efficiency of 90% minimizes energy loss and reduces heat generation. Metal case package ensures durability and EMI shielding.

Wide operating temperature capability extends usability in industrial environments. MTBF of 900,000 hours demonstrates high reliability for critical applications. Isolation voltage of 1.6kV DC allows safe separation of input/output.

Two output channels provide flexibility for powering multiple circuits. Compact PCB mount design simplifies integration into electronic systems. Compliance with IEC and UL standards ensures safety and quality assurance.

Country of origin is Taiwan, Province of China. The product is backed by TRACOPOWER’s quality assurance and a 3-year warranty. For comprehensive industrial power supply solutions, explore our DC/DC Converter category at EnvMart.
