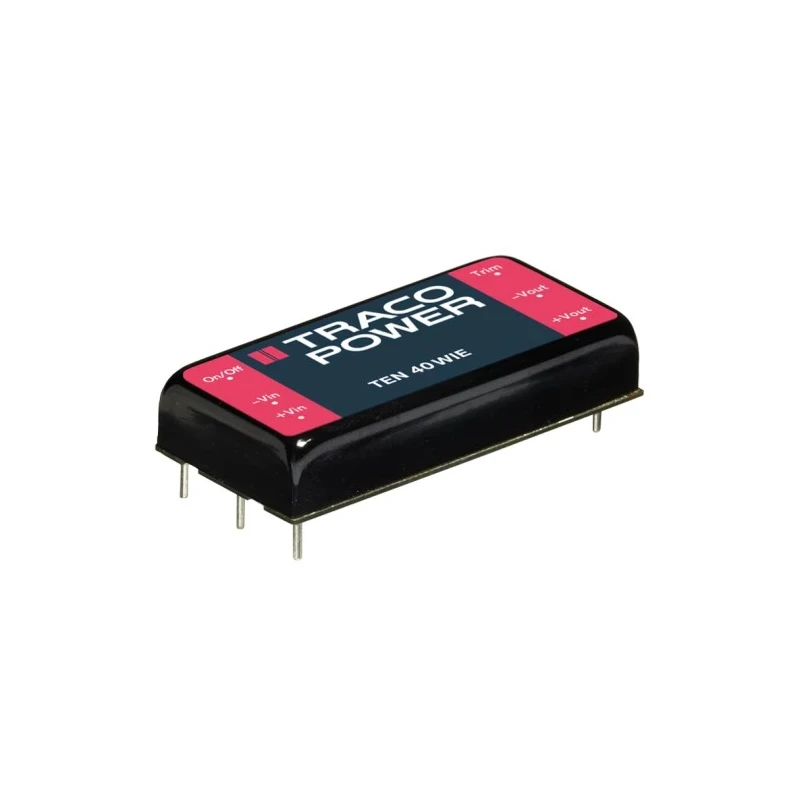

TRACOPOWER TEN 40-2410WIE DC/DC Converter 3.3V DC 12.2A 36V DC Input 9V Input 40W Through Hole DIP Package TEN 40WIE
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 90% |
| Length | 50.8mm |
| Model | TEN 40-2410WIE |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | TEN 40WIE |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1245000h |
| Number of outputs | 1 |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 12.2A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Provides a maximum output power of 40W ensuring reliable performance.
- Operates within an input voltage range from 9V DC minimum to 36V DC maximum.
- Features a compact Through Hole DIP package with dimensions 50.8mm length, 25.4mm width, and 10.2mm depth.
- Offers high efficiency up to 90% to optimize energy use.
- Designed for harsh environments with an operating temperature range of -40°C to 85°C.
- Includes remote on/off and protection against short circuit, overvoltage, and over temperature conditions.
- Single output unit with output voltage adjustment range ±10% for flexible application.
- Isolation voltage rated at 1.6kV DC enhances safety and noise immunity.
Product Description
TRACOPOWER TEN 40-2410WIE DC/DC Converter is a high-quality industrial power supply module designed for efficient voltage conversion. It outputs 3.3V DC at a steady 12.2A current, providing a dependable 40W maximum power capacity. The converter supports a wide input voltage range from 9V up to 36V DC, featuring a 4:1 wide input ratio that accommodates various power sources.
Encased in a Through Hole DIP package measuring 50.8mm long, 25.4mm wide, and 10.2mm deep, this converter is designed for ease of mounting and integration into electronic assemblies. The unit achieves an efficiency of 90%, enabling lower heat dissipation and improved power management.
Engineered for demanding conditions, the converter operates reliably across a temperature span from -40°C to 85°C. Its construction includes protective functions such as remote on/off control and safeguards against short circuit, overvoltage, and overheating, thereby ensuring durability and safety in industrial environments.
The module features a single output with voltage adjustment capability of ±10%, making it versatile for sensitive applications. Its 1.6kV DC isolation voltage enhances noise immunity and ensures safe operation in complex electrical circuits. The mean time between failure (MTBF) of over 1.2 million hours underscores its long-term reliability.
Maximum output power of 40W for robust performance. Wide input voltage range from 9V to 36V DC for adaptability. High efficiency of 90% reduces energy losses. Operating temperature range from -40°C to +85°C supports harsh environments.
Remote on/off and multiple protection features safeguard operation. Single output with adjustable voltage range ±10%. 1.6kV DC isolation voltage for electrical safety and noise reduction. Extended reliability with an MTBF of 1,245,000 hours.
Compact Through Hole DIP package optimized for PCB mounting. Manufactured in Taiwan, Province Of China with quality assurance.
This DC/DC converter series is widely used in industrial automation, telecommunications, instrumentation, and other electronic applications requiring stable and efficient power conversion. Its reliability and protection features make it suitable for complex industrial and manufacturing systems. Browse more TRACOPOWER DC/DC Converters and related power supply solutions in the EnvMart catalog for your precise application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 40W.
It operates within an input voltage range from 9V DC to 36V DC.
This unit achieves an efficiency of up to 90%.
The dimensions of the Through Hole DIP package are 50.8mm in length, 25.4mm in width, and 10.2mm in depth.
It operates reliably within a temperature range of -40°C to 85°C.
This model uses a Through Hole mounting type.
The isolation voltage is rated at 1.6kV DC, which enhances safety and noise immunity.
It features a single output.
The output voltage is 3.3V DC with a maximum output current of 12.2A.
It includes remote on/off control and protection against short circuit, overvoltage, and overheating.
The MTBF is over 1.2 million hours, indicating long-term reliability.
It is suitable for industrial automation, telecommunications, instrumentation, and other electronic applications requiring stable power conversion.
