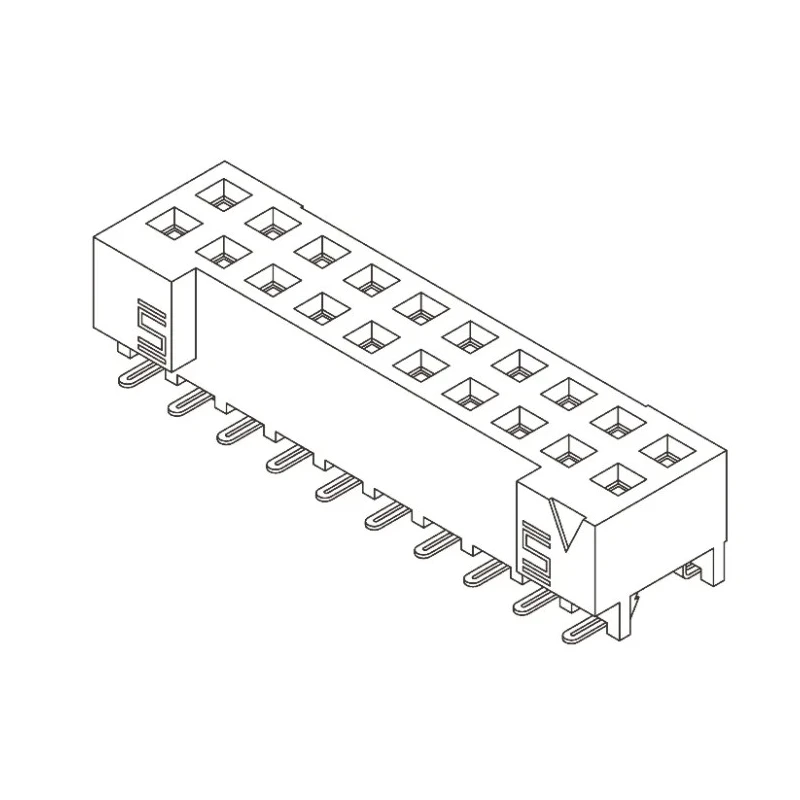

Samtec S2M Series Straight Surface PCB Socket 40-Contact 2 Row 2 mm Pitch Solder S2M-120-02-S-D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.6A |
| Temperature range | -55 → 125 °C |
| Model | S2M-120-02-S-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | S2M |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Connector System | Board-to-Board |
| Stacking Height | 7mm |
| Insulator Material | Black LCP |
Key Features
- Designed for surface mounting on printed circuit boards.
- Features 40 gold-plated beryllium copper alloy contacts.
- Operates within a temperature range of -55°C to 125°C.
- Housing constructed with black Liquid Crystal Polymer for durability.
- Connector stacking height of 7 mm suited for compact electronic assemblies.
- Supports a current rating of 2.6 A per contact.
- Suitable for high reliability wire-to-board or board-to-board applications.
- Provides straight orientation with board-to-board connector system.
Product Description
Samtec S2M-120-02-S-D is a high reliability straight surface mount PCB socket designed for electronic components requiring a 40-contact, 2-row, 2 mm pitch connection. This board-to-board socket features gold-plated beryllium copper alloy contacts to ensure optimal conductivity and corrosion resistance.
The housing is made of black Liquid Crystal Polymer (LCP), providing excellent durability and thermal stability, suitable for operating temperatures ranging from -55°C to 125°C. With a stacking height of 7 mm, it facilitates compact and reliable PCB interconnections in industrial, commercial electronics, and manufacturing applications.
This connector is designed to support a current of 2.6 A per contact with a solder termination finish optimized for surface mounting technology (SMT). It supports wire-to-board or board-to-board configurations, making it versatile for use in high-density electronic assemblies.
The S2M series offers both through-hole and SMT versions; this model is an SMT version with 0.75 μm gold plating contact and tin plating on PCB tails for soldering. It is ideal for use in electronic manufacturing industries, laboratory equipment, telecommunication, instrumentation, and automation systems requiring reliable electrical connections.
Designed for surface mounting on printed circuit boards. Features 40 gold-plated beryllium copper alloy contacts. Operates within a temperature range of -55°C to 125°C. Housing constructed with black Liquid Crystal Polymer for durability.
Connector stacking height of 7 mm suited for compact electronic assemblies. Supports a current rating of 2.6 A per contact. Suitable for high reliability wire-to-board or board-to-board applications. Provides straight orientation with board-to-board connector system.
Contacts have 0.75 μm gold plating with tin-plated PCB tails for solder connectivity. Compatible with surface mounting technology in electronic manufacturing. Explore more high-quality PCB Sockets and connectors for electronic manufacturing on EnvMart, ensuring efficient and reliable assembly of electronic devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 2.6 A per contact.
This model operates within a temperature range of -55°C to 125°C.
The housing is made of black Liquid Crystal Polymer, and the contacts are constructed from gold-plated beryllium copper alloy.
The stacking height is 7 mm, making it suitable for compact electronic assemblies.
The S2M-120-02-S-D features 40 contacts arranged in 2 rows with a 2 mm pitch.
It uses a solder termination type optimized for surface mounting technology.
Yes, it is designed to provide a board-to-board connector system.
The contacts are plated with 0.75 μm gold, ensuring optimal conductivity and corrosion resistance.
It is suitable for high reliability wire-to-board or board-to-board applications in various electronic manufacturing settings.
The orientation of this socket is straight, facilitating easy installation on printed circuit boards.
The country of origin for this model is India.
This connector is classified as a wire-to-board sub-type.
