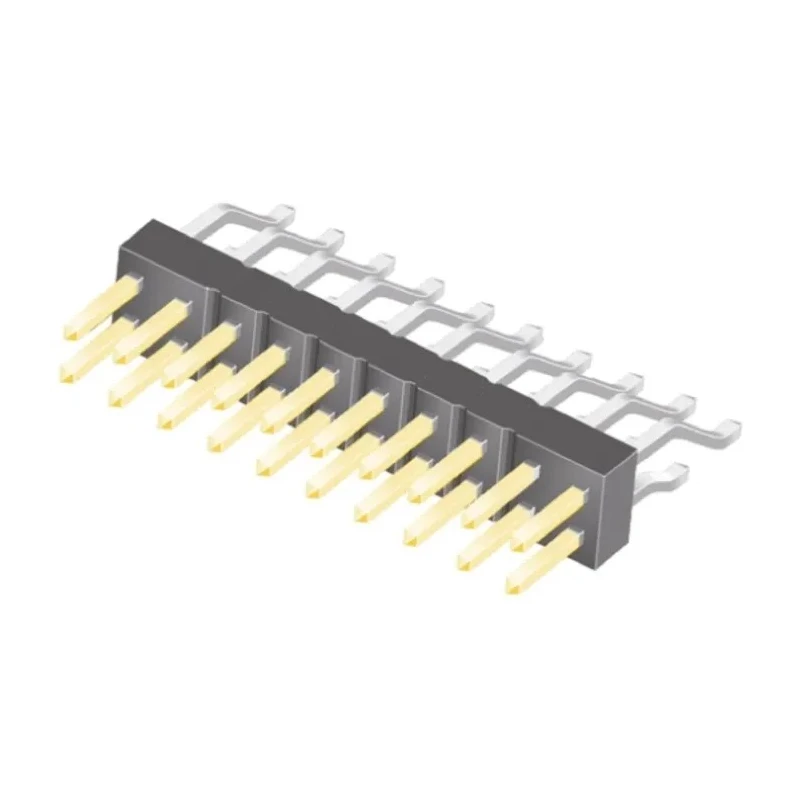

Samtec TSM Series Right Angle Surface Pin Header 20 Contacts 2.54 mm Pitch 2 Row Unshrouded TSM-110-01-L-DH
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 7A |
| Model | TSM-110-01-L-DH |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.84mm |
Key Features
- Constructed with a liquid crystal polymer housing for durability and thermal stability.
- Phosphor bronze contacts plated with gold ensure excellent conductivity and corrosion resistance.
- Rated for 7A current and 475V voltage for reliable electrical performance.
- Designed for board-to-board and wire-to-board connectivity with surface mount installation.
- Operates within a wide temperature range from -55°C to 125°C for versatile industrial applications.
- Features a mating pin length of 5.84 mm for secure connection.
- Unshrouded right angle orientation accommodates compact PCB layouts efficiently.
Product Description
Samtec TSM-110-01-L-DH right angle surface pin header is a reliable electronic component designed for PCB mounting with a pitch of 2.54 mm. Featuring 20 contacts arranged in 2 rows, this unshrouded header provides robust board-to-board and wire-to-board connections.
The header's housing is made from liquid crystal polymer, offering high mechanical strength and excellent thermal resistance, suitable for demanding industrial environments. The contacts are manufactured from phosphor bronze and plated with 0.25 µm gold on the post and matte tin on the tail, ensuring superior electrical conductivity and corrosion protection.
Rated for 7A current and 475V voltage, this component ensures reliable performance in diverse electronic systems. It operates efficiently within an extended temperature range from -55°C minimum to 125°C maximum, catering to various industrial, manufacturing, and electronic assembly needs.
The mating pin length of 5.84 mm guarantees secure connections with mating sockets. Its right angle orientation and surface mount technology (SMT) make it ideal for space-constrained PCB designs where vertical height is a consideration.
Liquid crystal polymer housing for durability and thermal stability. Gold-plated phosphor bronze contacts for enhanced conductivity. 7A current and 475V voltage rating for electrical reliability. Wide operating temperature range from -55°C to 125°C.
Unshrouded 2-row design with 20 contacts and 2.54 mm pitch. Suitable for board-to-board and wire-to-board applications. Right angle orientation with surface mount assembly.
This Samtec TSM Series surface mount pin header is widely used in electronics manufacturing, industrial automation, telecommunications equipment, and other applications requiring quality PCB connectors.
Explore more high-quality PCB Headers and connectors in the Electronics Components category at EnvMart for your electronic design and production requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 7A and a voltage of 475V, ensuring reliable electrical performance.
The contacts are made from phosphor bronze and are plated with 0.25 µm gold on the post and matte tin on the tail for enhanced conductivity and corrosion resistance.
It operates within a wide temperature range from -55°C to 125°C, making it suitable for various industrial applications.
This pin header features 20 contacts arranged in 2 rows.
The pitch size of this model is 2.54 mm, which is standard for many PCB applications.
It supports surface mount installation, making it suitable for compact PCB layouts.
The mating pin length is 5.84 mm, ensuring secure connections with mating sockets.
This model features a right angle orientation, which is advantageous for space-constrained designs.
It is designed for board-to-board and wire-to-board connectivity, allowing versatile applications in electronic systems.
The housing is constructed from liquid crystal polymer, providing durability and thermal stability.
This pin header is unshrouded, which allows for easier access in tight spaces on PCBs.
The country of origin for this pin header is India.
