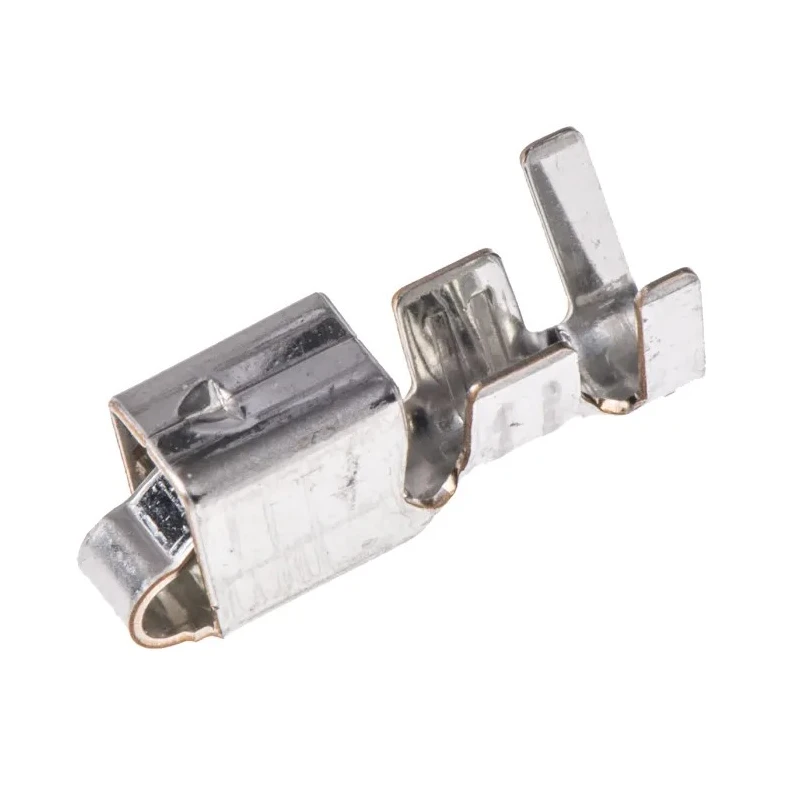

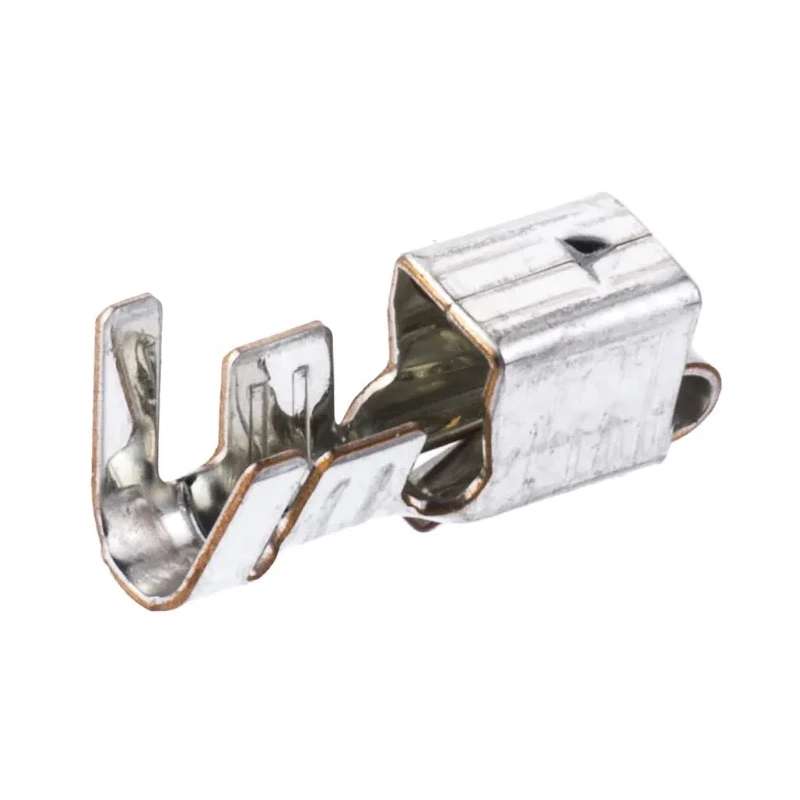

JST Female Crimp Terminal for NV and VH Connector Housings 10A Current 20-16 AWG Wire Size BVH-41T-P1.1

Free Delivery in India | Lowest Global Shipping Charges

JST Female Crimp Terminal for NV and VH Connector Housings 10A Current 20-16 AWG Wire Size BVH-41T-P1.1



Category Crimp Terminal Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Current	10A
Model	BVH-41T-P1.1
Gender	Female
Contact Material	Phosphor Bronze
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	NV and VH Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.25mm²
Minimum Wire Size AWG	20AWG
Maximum Wire Size AWG	16AWG
Maximum Contact Resistance	10mΩ
JST Female Crimp Terminal, 22 AWG Min Crimp, 18 AWG MaxBrand	JST

Key Features

Constructed from phosphor bronze material for durability.
Features tin plating to ensure reliable electrical contact.
Designed for crimp termination type for secure wire connections.
Supports operating temperatures from -25°C to 85°C for versatile applications.
Compact 3.96 mm pitch suitable for wire-to-board connections.
Low maximum contact resistance of 10 milliohms for efficient conductivity.
Ideal for signal, power supply, and output circuits in electronic devices.
Compatible with JST VH Series crimp housings and connectors.

Product Description

JST BVH-41T-P1.1 Female Crimp Terminal is engineered for use with NV and VH Connector Housings, providing a robust and reliable 10A current carrying capacity. This crimp contact is built from high-quality phosphor bronze, plated with tin to ensure corrosion resistance and consistent electrical performance.

The terminal supports wire sizes from 20 AWG (0.5 mm²) minimum to 16 AWG (1.25 mm²) maximum, making it suitable for various wiring configurations in industrial, electronic, and manufacturing applications. Operating temperature range extends from -25°C to 85°C, allowing usage in diverse environmental conditions.

With a pitch of 3.96 mm, it is designed for secure wire-to-board connection systems, incorporating an unlockable friction-lock feature for safe mounting and contact retention. The maximum contact resistance is kept low at 10 milliohms, ensuring minimal signal loss and high electrical efficiency.

This product is ideal for application in signal circuits, power supplies, or output circuits within electronics manufacturing, industrial automation, and other electrical component assembly scenarios.

Durable phosphor bronze contact material enhances longevity. Tin plating on contacts provides effective corrosion protection. Crimp termination type facilitates strong mechanical and electrical bond. Wide operating temperature range from -25°C to 85°C.

Compact 3.96 mm pitch suitable for JST VH Series connectors. Low contact resistance of 10 mΩ improves signal integrity. Compatible with JST VH housing series for easy integration. Supports current up to 10A, suitable for varied electronic applications.

Set your project up for success with this reliable Crimp Terminal, engineered to deliver consistent performance in a broad range of industrial, commercial, and laboratory equipment environments. Explore more from JST and comprehensive electronic components at EnvMart.
