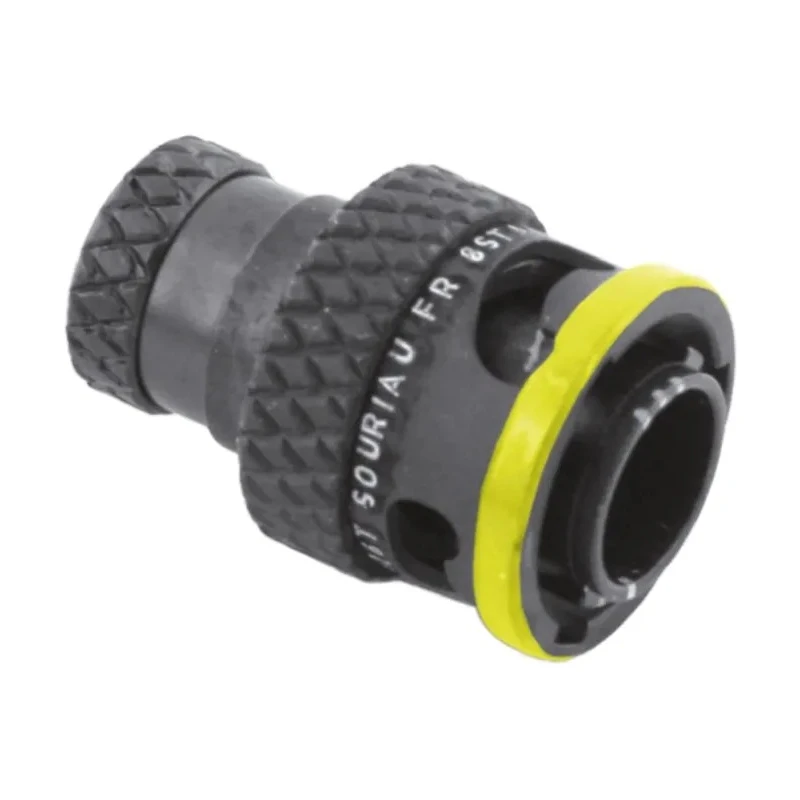

Souriau Sunbank by Eaton Circular Connector 5 Contacts Cable Standard Plug Male IP67 1000V Aluminium 8STA60205PA

Souriau Sunbank by Eaton 8STA60205PA is a 5-contact circular connector designed for cable mounting, intended primarily for demanding environments such as motorsport, military, and industrial applications requiring robustness and reliability.

The connector is a standard size plug with a straight orientation and features a bayonet mating type that allows quick connection with a 1/3 turn locking and audible feedback. Its aluminium alloy body is conductive black zinc plated for enhanced durability and corrosion resistance, ensuring long service life in harsh conditions.

This circular connector is rated at 1000 volts and supports a current of 3 amps. Gold-plated copper alloy contacts provide excellent electrical conductivity and wear resistance. The connector operates within a temperature range from -55°C to 175°C, making it suitable for use in extreme environmental conditions.

The IP67 ingress protection rating certifies that the connector is waterproof and dustproof, able to withstand immersion up to 1 metre for 30 minutes, safeguarding internal contacts from contamination.

Designed to meet the MIL-DTL-38999 specifications, the 8STA series connectors are widely used in motorsport sectors such as Formula 1, MotoGP, WRC, and other racing applications. They are lightweight, compact, and resilient to shocks up to 300g for 3 milliseconds and vibrations between 10 and 2000 Hz at 147m/s², ensuring reliable performance in high-vibration settings.

The colour-coded banding system improves ease of use by allowing quick and error-free identification of connectors, facilitating fast assembly and maintenance in field operations. The connector features 5 gold-plated copper contacts for reliable electrical connection.

Quick mating bayonet lock mechanism ensures secure plug engagement. Housing is made from aluminium alloy with conductive black zinc plating. Operating temperature range from -55°C to 175°C accommodates extreme conditions.

IP67 rated for protection against dust and temporary submersion. Shock resistance of 300g for 3ms protects against mechanical impact. Vibration tolerance up to 147m/s² between 10 to 2000 Hz. Ideal for motorsport, military UAVs, ground vehicles, and infantry interconnections.

Manufactured in France with proven MIL-DTL-38999 heritage design.

This connector is a specialized industrial circular connector suitable for electronic, automotive, military, and aerospace applications demanding compact size, light weight, and robust environmental resistance. Browse other Souriau Sunbank by Eaton products and Industrial Circular Connectors at EnvMart for complementary solutions.
