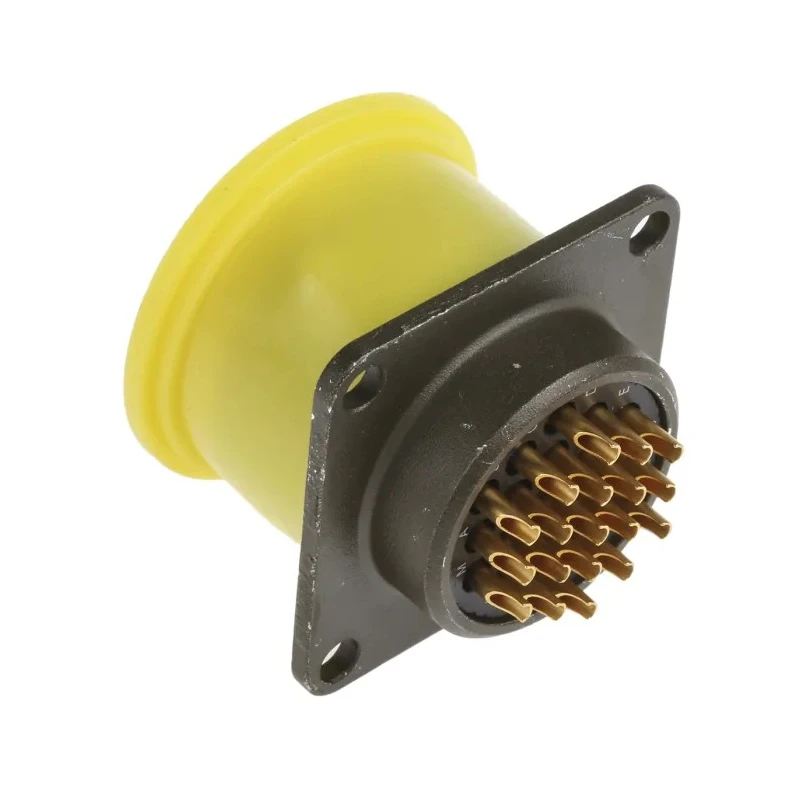

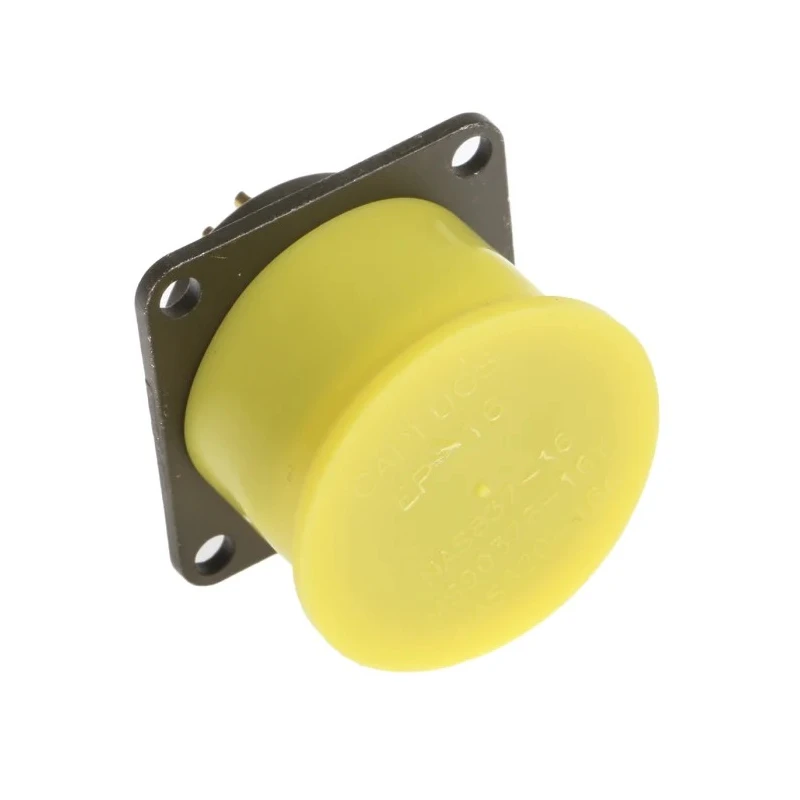

Amphenol Socapex MIL Spec Circular Connector Panel Mount 19 Contacts Female 1kV AC Aluminium Green PT02A-14-19S

Name: Amphenol Socapex MIL Spec Circular Connector Panel Mount 19 Contacts Female 1kV AC Aluminium Green PT02A-14-19S
Brand: Amphenol Socapex
SKU: 135035
Price: 27.11 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Amphenol Socapex Condition New

Specifications

Country of Origin	accordance with MIL-DTL-
Voltage	1kV ac
Brand	Amphenol Socapex
Colour	Green
Orientation	Straight
Model	PT02A-14-19S
Mount Type	Panel Mount
Housing Material	Aluminium
Contact Material	Copper Alloy
Series	PT
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold
Number of Contacts	19
Contact Gender	Female
Connector Gender	Female
Shell Size	14
Military Standard	MIL-DTL-26482
Mating Type	Bayonet
Connector Size	Miniature
Shell Plating	Cadmium

Key Features

Features a bayonet coupling mechanism for secure connections.
Constructed with aluminium housing and copper alloy contacts.
Gold-plated contacts ensure reliable conductivity and corrosion resistance.
Cadmium-plated shell enhances durability and environmental resistance.
Designed per MIL-DTL-26482 military standard for rugged industrial use.
Operates reliably between -55°C and 125°C temperature range.
Miniature size shell with 14 shell size classification.
Termination is solder type for consistent signal integrity.

Product Description

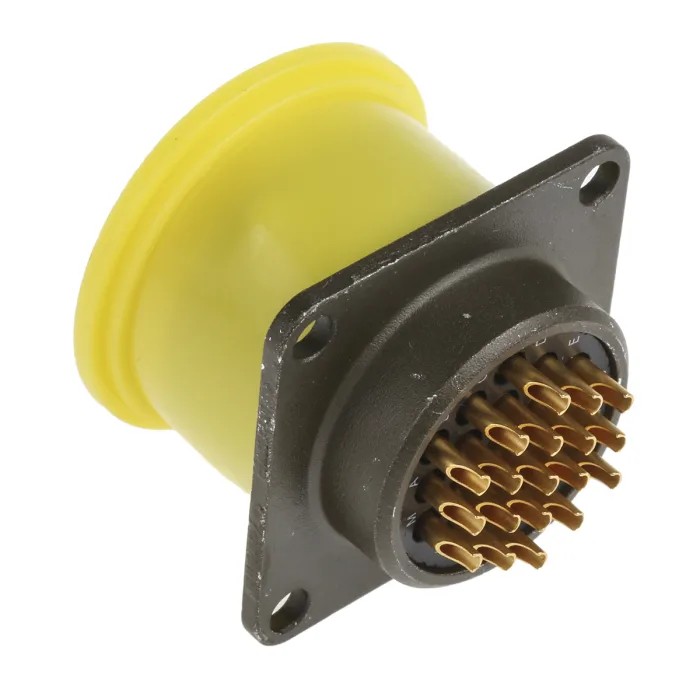

Amphenol Socapex PT02A-14-19S MIL Spec Circular Connector is a panel mount, straight orientation, miniature-size connector featuring 19 female contacts rated at 1kV AC. This connector meets the MIL-DTL-26482 Series 1 military standard and is engineered for demanding industrial, military, aerospace, and electronic applications where reliability and durability are critical.

The housing is constructed from aluminium, offering strong mechanical protection while maintaining a lightweight form factor. The green coloration aids visual identification in complex wiring assemblies. Copper alloy contacts provide excellent electrical conductivity, further enhanced by gold plating to protect against corrosion and ensure long-lasting performance. The shell plating with cadmium adds additional environmental resistance.

This connector employs a bayonet coupling mechanism that allows for quick and secure mating and unmating, essential for efficient maintenance and assembly processes. The solder termination type facilitates reliable wiring connections for signal and power transmission. Operating temperature ranges from -55°C to 125°C, enabling use in extreme environments.

Bayonet locking coupling for secure and fast connect/disconnect operation. High-density insert arrangement supporting 19 female contacts. Aluminium shell material for mechanical strength and reduced weight. Copper alloy contacts with gold plating for excellent electrical performance.

Cadmium plating on shell for enhanced corrosion resistance. Miniature shell size 14 providing compact design. Panel mount configuration suited to fixed installations. Compliant with MIL-DTL-26482 military specifications.

Solder termination for dependable wiring. Wide operating temperature range from -55°C to 125°C.

This Amphenol Socapex MIL Spec Circular Connector is widely used in industrial control systems, aerospace electronics, military communications, and high-reliability electronic interconnect applications. Its robust design ensures operational integrity in harsh environments while enabling ease of installation and maintenance.

Explore the full range of Mil Spec Circular Connectors and Amphenol Socapex products at EnvMart for reliable industrial and military grade connectors.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a voltage rating of 1kV AC, suitable for various industrial and military applications.

The housing is made from aluminium, while the contacts are copper alloy with gold plating for enhanced conductivity and corrosion resistance.

It operates reliably within a temperature range of -55°C to 125°C, making it suitable for extreme environments.

This connector features 19 female contacts, allowing for multiple connections in a compact design.

It employs a solder termination type, ensuring reliable wiring connections for signal and power transmission.

This model has a miniature shell size classification of 14, which contributes to its compact design.

It features a bayonet coupling mechanism that allows for quick and secure mating and unmating, facilitating efficient maintenance.

Yes, it is designed in accordance with the MIL-DTL-26482 military standard, ensuring reliability in demanding environments.

The housing is green, which aids in visual identification during installation and maintenance in complex wiring assemblies.

It is widely used in industrial control systems, aerospace electronics, military communications, and high-reliability electronic interconnect applications.

The shell is cadmium plated, which enhances its durability and environmental resistance.

This connector features a straight orientation, making it suitable for panel mount installations.
