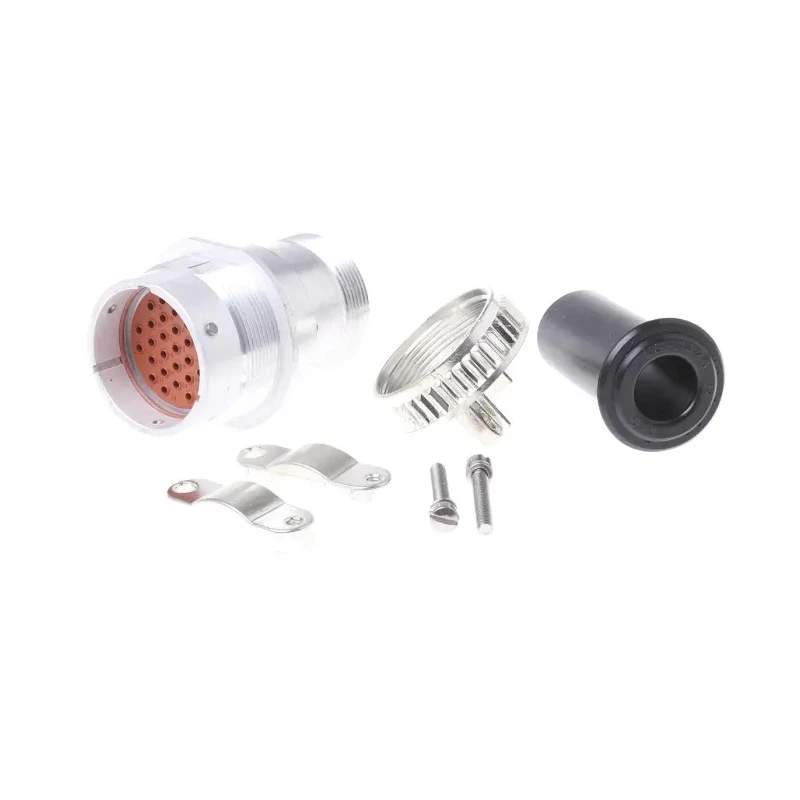

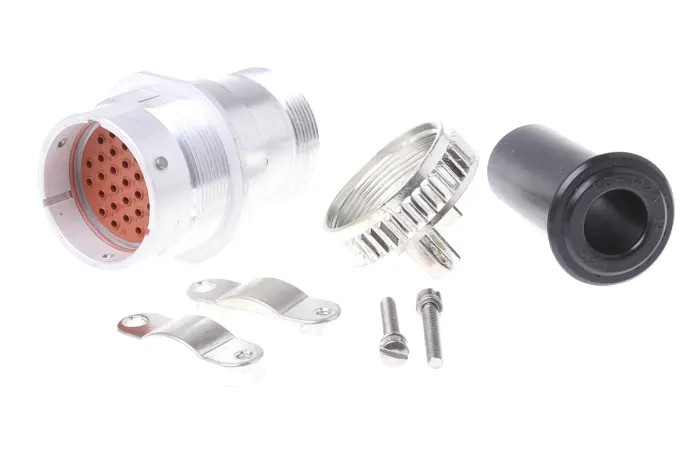

Deutsch Circular Connector 31 Contacts Cable 1.59 mm Socket Male IP67 Aluminium Housing HD34-24-31PE-059

Deutsch HD34-24-31PE-059 is a high-quality circular connector designed for industrial applications requiring a robust and reliable cable-mounted connection with 31 contacts. This model features a 1.59 mm connector size with male contacts housed in an aluminium shell that ensures long-term durability and resistance to corrosion. Equipped with a bayonet-style mating system and straight orientation, it provides secure and easy connections.

Operating at 250V and rated for 13A current capacity, this connector performs reliably within a temperature range of -55°C to +125°C, making it suitable for harsh environments. The cable mounting type with crimp termination supports solid and secure wire connections.

The connector's IP67 rating guarantees protection against dust ingress and water immersion up to 1 meter, making it ideal for outdoor and industrial settings. The copper contacts are nickel-plated for excellent electrical conductivity and corrosion resistance, enhancing performance longevity.

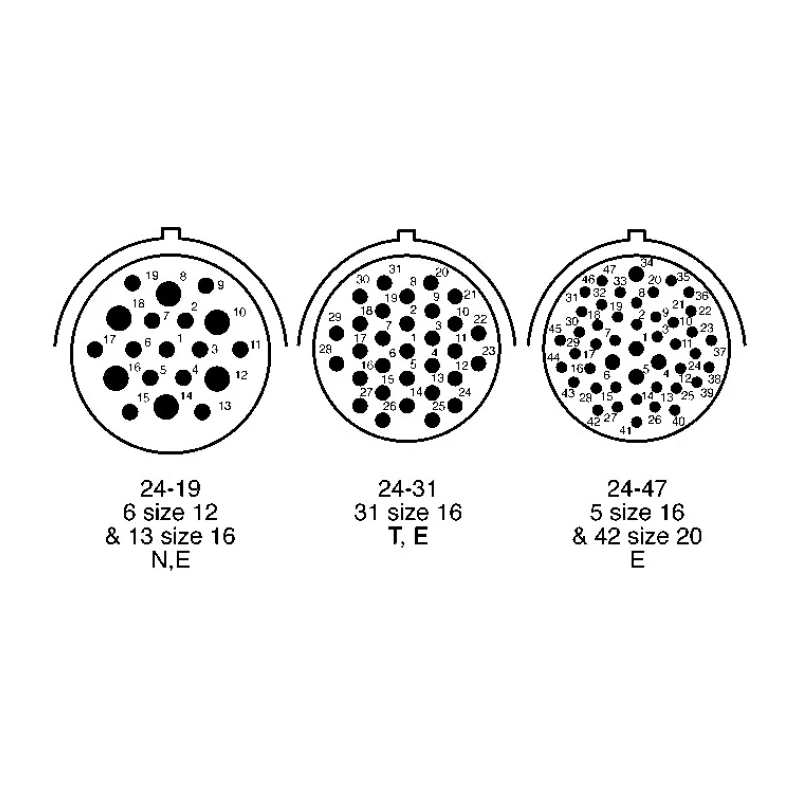

This HD30 series connector supports multiple contact sizes including size 12, 16, and 20, accommodating various heavy-duty cable applications. Designed to withstand vibration of 20g at 10 to 2000 Hz and pass 48-hour salt spray corrosion tests per MIL STD 1344, it is engineered for robustness and reliability.

Deutsch circular connectors like the HD34-24-31PE-059 are commonly used in industrial automation, heavy machinery, transportation, aerospace, and other demanding environments that require secure, rugged, and sealed multi-contact electrical connections.

Rated for 13A current at 250V operating voltage. Constructed with aluminium housing for durability and corrosion resistance. Contact material is copper with nickel plating for enhanced conductivity and protection. Designed for straight orientation with bayonet mating type and crimp termination.

Operates reliably within temperature range -55°C to +125°C. Sealed to IP67 providing dust-tight and water immersion protection. Compatible with HD30 series connectors using size 12, 16, and 20 contacts. Suitable for heavy-duty industrial applications needing vibration and corrosion resistance.
