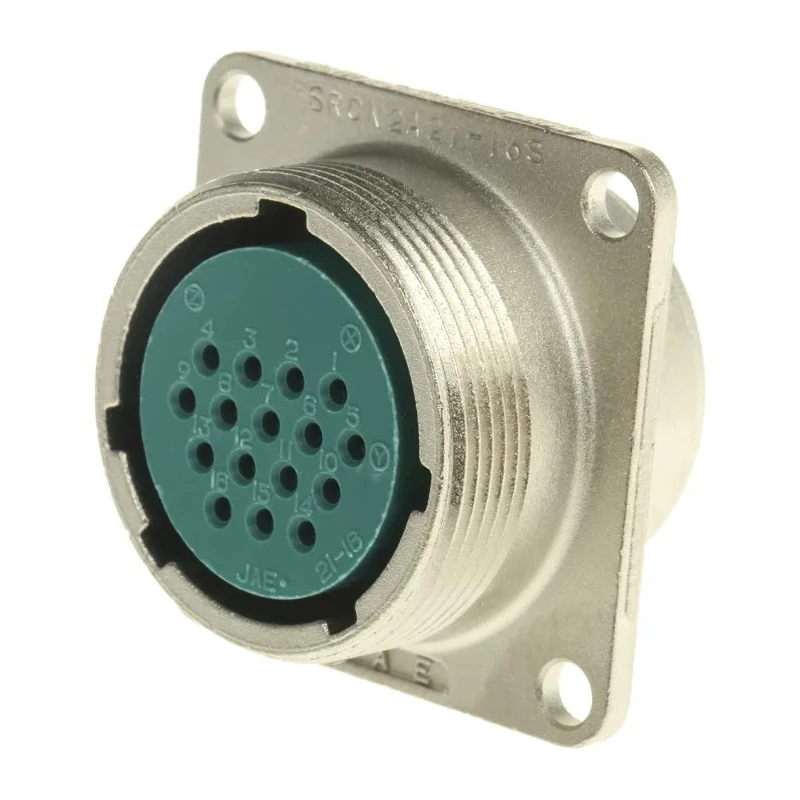

JAE Circular Connector, 16 Contacts, Panel Mount, Miniature, Socket Female, 5A, 250-350V, Aluminium Alloy SRCN2A21-16S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250, 350V |
| Brand | JAE |
| Orientation | Straight |
| Current | 5A |
| Model | SRCN2A21-16S |
| Mount Type | Panel Mount |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | SRCN |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 16 |
| Contact Plating | Silver |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Shell Size | 21 |
| Mating Type | Threaded |
| Connector Size | Miniature |
| Plug/Socket | Socket |
| ITT Cannon Connector, 16 Contacts, Panel Mount, Socket, Female, JC SeriesBrand | ITT Cannon |
Key Features
- This panel mount circular socket connector features a straight orientation for ease of installation.
- Constructed with an aluminium alloy housing, the connector offers durability and robustness.
- The contacts are made of copper alloy with silver plating to ensure excellent conductivity and corrosion resistance.
- It has threaded mating type and positive polarization via five keys and keyways for secure connection.
- Designed to operate reliably between -25°C to 85°C temperature range.
- The termination technique is solder type for stable electrical contact.
- The connector series is SRCN, known for lightweight and solid construction suitable for miniature circular connectors.
- Ideal for industrial, manufacturing, and electronic equipment requiring compact and reliable panel mount connectors.
Product Description
JAE SRCN2A21-16S is a miniature circular connector with 16 female socket contacts, designed for panel mount applications. Rated at 5A and a voltage range of 250 to 350 volts, it uses solder termination and features a robust aluminium alloy housing that ensures durability in industrial environments.
This connector belongs to the SRCN series renowned for lightweight and high reliability with solid construction. It incorporates silver-plated copper alloy contacts for excellent electrical conductivity and corrosion resistance, ensuring stable connections throughout its usage.
The connector provides a straight orientation with a threaded mating type and positive polarization through five keys and keyways to prevent misconnection. The operating temperature range from -25°C to 85°C makes it suitable for diverse industrial settings, including manufacturing automation, electronic instrumentation, and power distribution systems.
With miniature size and 16 poles, this connector supports compact designs where space saving is crucial without sacrificing performance. The solder termination ensures secure and stable contact points ideal for applications involving vibration or mechanical stress.
This panel mount circular socket connector features a straight orientation for ease of installation. Constructed with an aluminium alloy housing, the connector offers durability and robustness. The contacts are made of copper alloy with silver plating to ensure excellent conductivity and corrosion resistance.
It has threaded mating type and positive polarization via five keys and keyways for secure connection. Designed to operate reliably between -25°C to 85°C temperature range. The termination technique is solder type for stable electrical contact.
The connector series is SRCN, known for lightweight and solid construction suitable for miniature circular connectors. Ideal for industrial, manufacturing, and electronic equipment requiring compact and reliable panel mount connectors.
Choose JAE SRCN2A21-16S for dependable circular panel mount connections in industrial and electronic component assemblies. Explore more connectors and related components within the Industrial Circular Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 250 to 350 volts.
It is rated for a current capacity of 5A.
The housing is made of aluminium alloy, while the contacts are copper alloy with silver plating for enhanced conductivity and corrosion resistance.
The connector operates reliably between -25°C to 85°C.
This connector features 16 female socket contacts.
It uses a solder termination technique for stable electrical contact.
The JAE SRCN2A21-16S is designed for panel mount applications.
It features a straight orientation for ease of installation.
The connector has a threaded mating type, which ensures a secure connection.
This model is part of the SRCN series, known for its lightweight and solid construction.
It is ideal for industrial, manufacturing, and electronic equipment requiring compact and reliable panel mount connectors.
It is classified as a miniature connector, suitable for compact designs.
