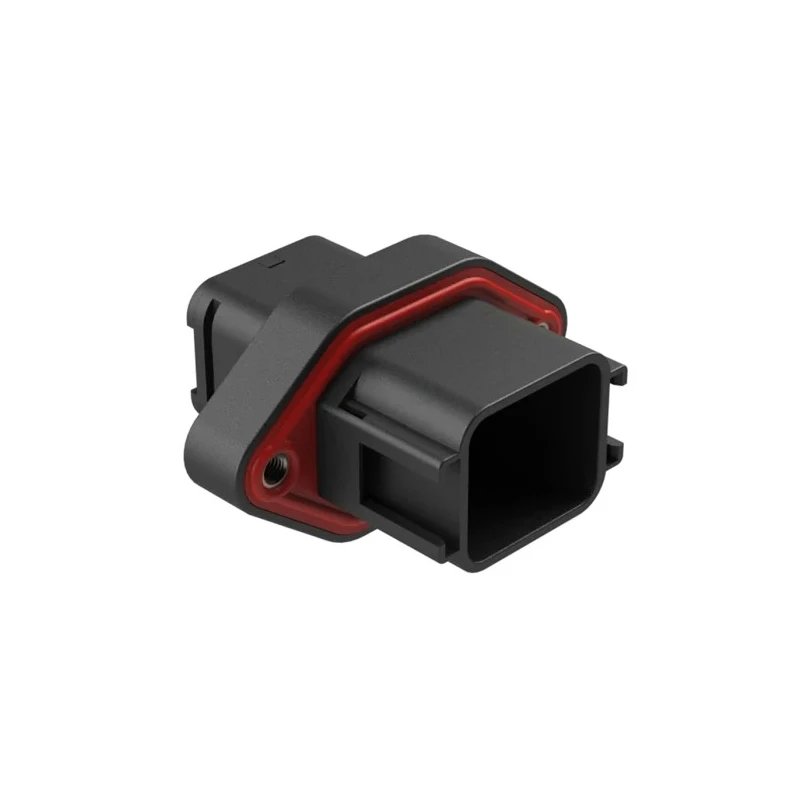

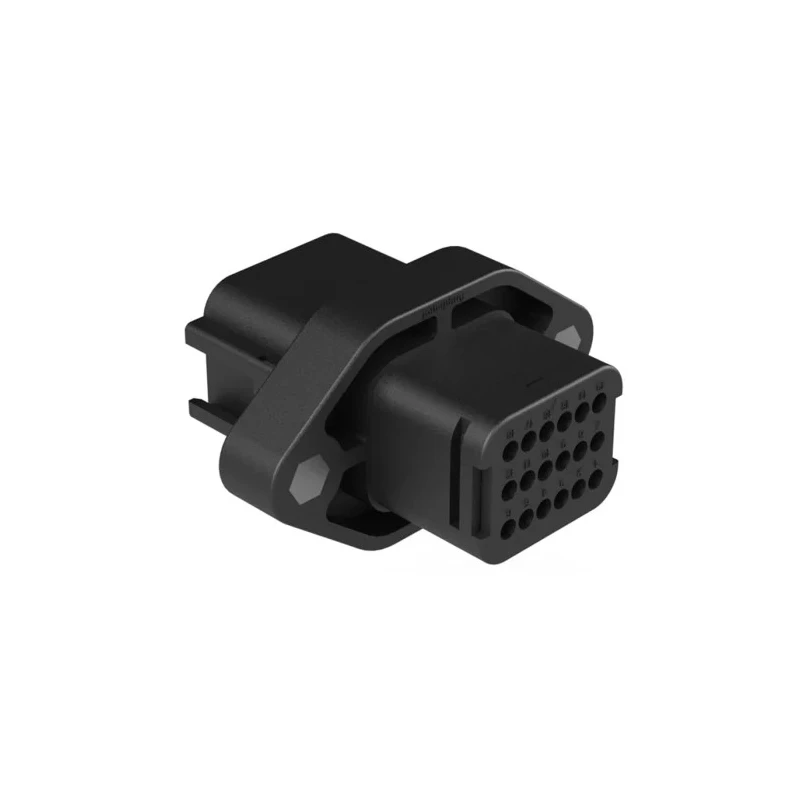

Amphenol Industrial Automotive Connector Female Black Flange 18 Way Solder Termination ATV02-18PB-RR01
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 0.145in |
| Brand | Amphenol Industrial |
| Colour | Black |
| Current | 13A |
| Height | 45.4mm |
| Model | ATV02-18PB-RR01 |
| Depth | 68.4mm |
| IP Rating | IP67, IP69K |
| Width | 81.1mm |
| Gender | Female |
| Mount Type | Flange |
| Housing Material | Thermoplastic |
| Series | ATV02 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Receptacle |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Standards/Approvals | RoHS |
| Number of Contacts | 18 |
Key Features
- This automotive connector features 18 contacts arranged in 3 rows for secure electrical connections.
- The flange mount type ensures stable installation in automotive applications.
- Constructed with thermoplastic housing providing durability and resistance to environmental factors.
- Rated to carry a current of 13A and supports solder termination type contacts.
- Designed to operate within a temperature range of -55°C to 125°C, suitable for harsh conditions.
- Features an IP67 and IP69K rating, providing excellent protection against dust and powerful water jets.
- The connector is black in color with a size 16 contact diameter of 0.145 inch for precise connectivity.
- RoHS compliant and manufactured in China, meeting environmental standards.
Product Description
Amphenol Industrial ATV02-18PB-RR01 is a female automotive connector with 18 positions, designed for flange mounting and solder termination. Its black thermoplastic housing ensures durability and environmental resistance. The connector carries a current rating of 13A and features three rows of size 16 contacts with a contact diameter of 0.145 inches, providing reliable electrical performance in automotive and industrial equipment.
This connector is engineered for demanding environments, operating effectively between -55°C and 125°C. With IP67 and IP69K ingress protection ratings, it withstands dust ingress and high-pressure water jets, making it suitable for harsh automotive conditions including wash-down applications.
The connector complies with RoHS standards and is manufactured in China. Its precise dimensions of 81.1mm width, 45.4mm height, and 68.4mm depth enable easy integration into existing assemblies. The flange mount ensures secure and stable installation, preventing accidental disconnections in vibrational environments.
Applications include automotive electrical systems, industrial machinery, and electronic component assemblies where high-performance connections are required. This connector series provides a robust, reliable solution for wire-to-wire or wire-to-board connectivity in challenging environments.
This automotive connector features 18 contacts arranged in 3 rows for secure electrical connections. The flange mount type ensures stable installation in automotive applications. Constructed with thermoplastic housing providing durability and resistance to environmental factors.
Rated to carry a current of 13A and supports solder termination type contacts. Designed to operate within a temperature range of -55°C to 125°C, suitable for harsh conditions. Features an IP67 and IP69K rating, providing excellent protection against dust and powerful water jets.
The connector is black in color with a size 16 contact diameter of 0.145 inch for precise connectivity. RoHS compliant and manufactured in China, meeting environmental standards. Dimensions are 81.1mm width, 45.4mm height, and 68.4mm depth, accommodating installation space requirements.
This product is ideal for automotive, industrial, and electronic component applications requiring robust and secure connectors. Explore more high-quality industrial and Automotive Connectors in the Electronics & Electricals category on EnvMart for reliable and industry-standard solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated to carry a current of 13A, making it suitable for various electrical applications.
It is designed to operate within a temperature range of -55°C to 125°C, suitable for harsh conditions.
The connector has dimensions of 81.1mm in width, 45.4mm in height, and 68.4mm in depth, allowing for easy integration into existing assemblies.
This model features 18 contacts arranged in 3 rows, providing secure electrical connections.
It supports solder termination type contacts, ensuring reliable connections in various applications.
The connector has both IP67 and IP69K ratings, providing excellent protection against dust and high-pressure water jets.
The housing is constructed from thermoplastic, which provides durability and resistance to environmental factors.
This model is black in color, which is standard for many automotive connectors.
It is designed for flange mounting, ensuring stable installation in automotive applications.
Yes, this connector complies with RoHS standards, meeting environmental regulations.
It is suitable for automotive electrical systems, industrial machinery, and electronic component assemblies that require high-performance connections.
The contact diameter is 0.145 inches, which ensures precise connectivity.
