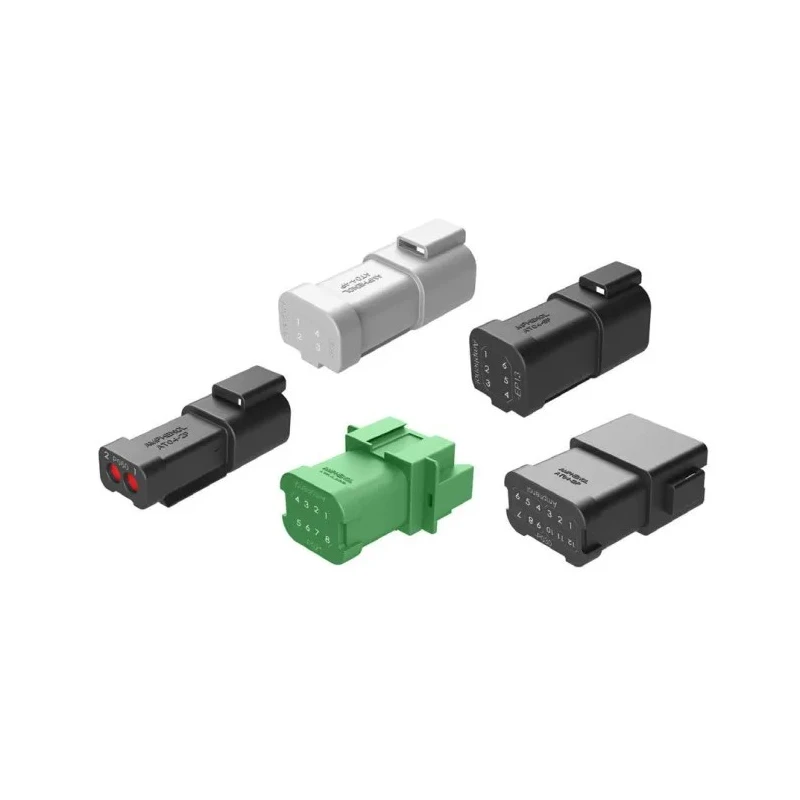

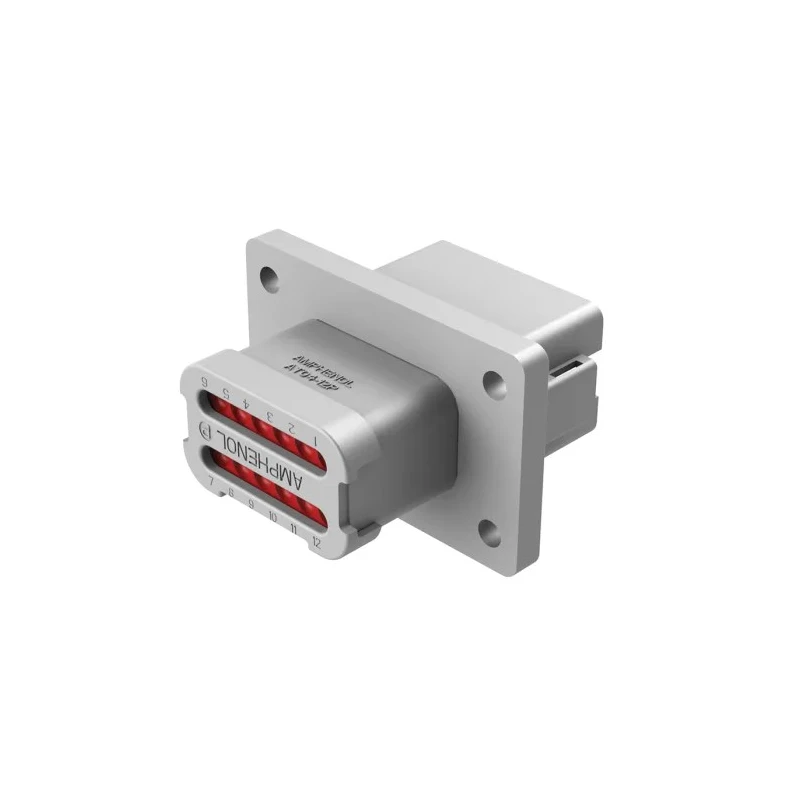

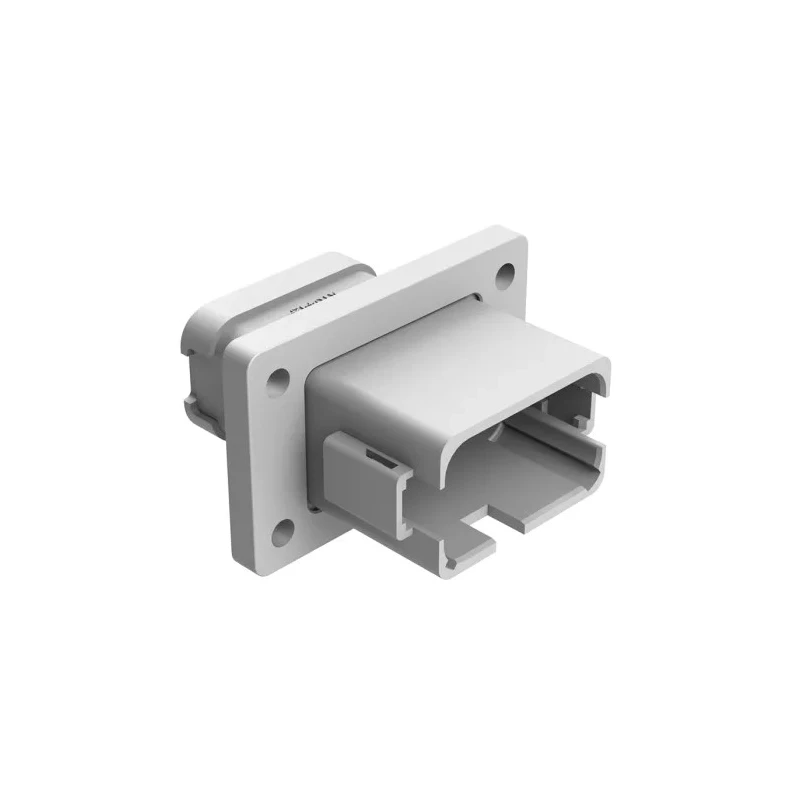

Amphenol Industrial AT04 Automotive Connector Male Grey Panel Mount 12 Way Crimp Termination AT04-12PA-BL05
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 0.145in |
| Brand | Amphenol Industrial |
| Colour | Grey |
| Current | 13A |
| Height | 35.6mm |
| Model | AT04-12PA-BL05 |
| Depth | 52.4mm |
| IP Rating | IP67 |
| Width | 55.4mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Series | AT04 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS |
| Number of Contacts | 12 |
Key Features
- This connector features 12 contacts arranged in 2 rows for efficient wiring.
- It is designed with a grey thermoplastic housing that includes integrated latching for secure connection.
- The connector supports a current rating of 13A, suitable for automotive and industrial applications.
- Rated IP67, it offers excellent protection against dust and water ingress.
- Operates over a wide temperature range from -55°C to 125°C ensuring performance under extreme conditions.
- Panel mount design allows easy installation and replacement in equipment.
- Secondary wedge locks (sold separately) secure contacts firmly within the connector.
- Manufactured with silicone elastomer rear seals for enhanced sealing and durability.
Product Description
Amphenol Industrial AT04-12PA-BL05 is a male automotive connector designed for panel mount applications featuring 12 crimp termination contacts. The grey thermoplastic housing with integrated latch delivers secure mating and long-lasting operation in demanding environments.
This connector is engineered to handle continuous currents up to 13 amperes and operates reliably within a temperature range from -55°C to 125°C, making it suitable for automotive, heavy-duty transportation, marine, military, agricultural, and alternative energy systems.
The IP67 rating ensures robust protection against dust and water ingress, enhancing durability in harsh conditions. Silicone elastomer rear seals coupled with secondary wedge locks (available separately) provide enhanced sealing and contact retention.
Its compact design with a height of 35.6 mm, width of 55.4 mm, and depth of 52.4 mm makes it ideal for panel installations requiring dependable electrical connections. The connector includes 12 contacts arranged in two rows with a 0.145 inch contact diameter to handle significant current loads safely.
This connector has 12 contacts arranged in 2 rows. Grey thermoplastic housing with integrated latch for secure mating. Panel mount configuration for easy installation. Supports 13A current suitable for demanding applications.
Rated IP67 protection standard for environmental sealing. Operating temperature range from -55°C to 125°C. Includes silicone elastomer rear seals for enhanced durability. Secondary wedge locks available for improved contact security.
Compact dimensions: 35.6mm H × 55.4mm W × 52.4mm D. RoHS compliant ensuring environmental safety standards.
This product is widely used in industrial, automotive, marine, military, and agricultural sectors where reliable, high-quality connectors are essential. Its rugged features meet the needs of harsh operating conditions and ensure long service life.
Explore the complete range of Automotive Connectors and related components at EnvMart for trusted industrial-quality solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 13A, making it suitable for automotive and industrial applications.
The connector is rated IP67, providing excellent protection against dust and water ingress.
It operates reliably over a wide temperature range from -55°C to 125°C.
This connector features 12 contacts arranged in 2 rows for efficient wiring.
The housing is made of grey thermoplastic, which includes integrated latching for secure connection.
This unit has a height of 35.6 mm, width of 55.4 mm, and depth of 52.4 mm.
It utilizes crimp termination for secure and reliable connections.
Yes, it is designed for panel mount installation, allowing for easy setup and replacement.
Secondary wedge locks, which are sold separately, secure contacts firmly within the connector.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is widely used in automotive, heavy-duty transportation, marine, military, agricultural, and alternative energy systems.
The contact diameter is 0.145 inches, allowing it to handle significant current loads safely.
