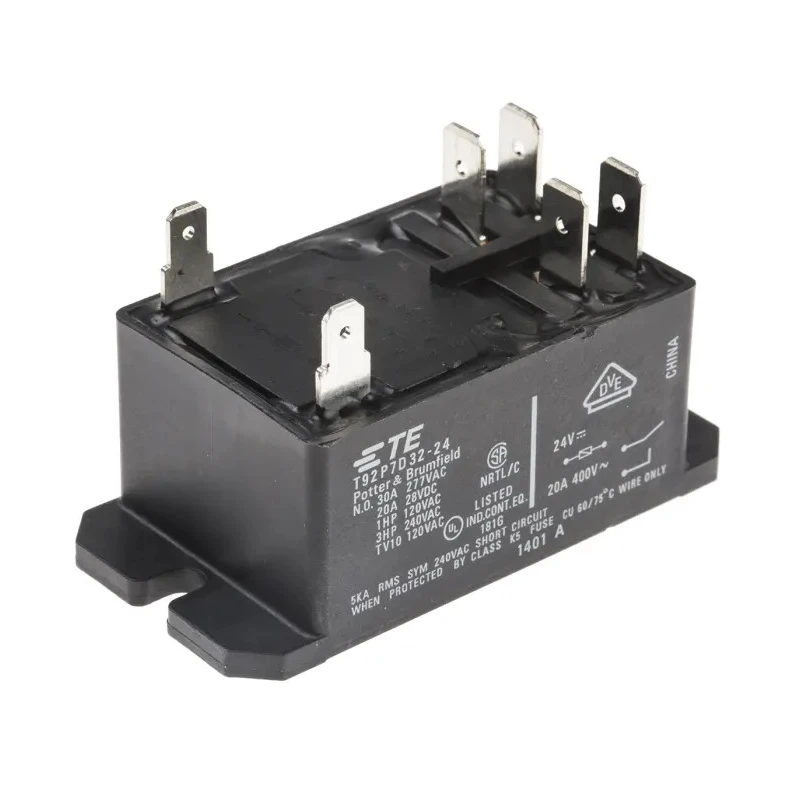

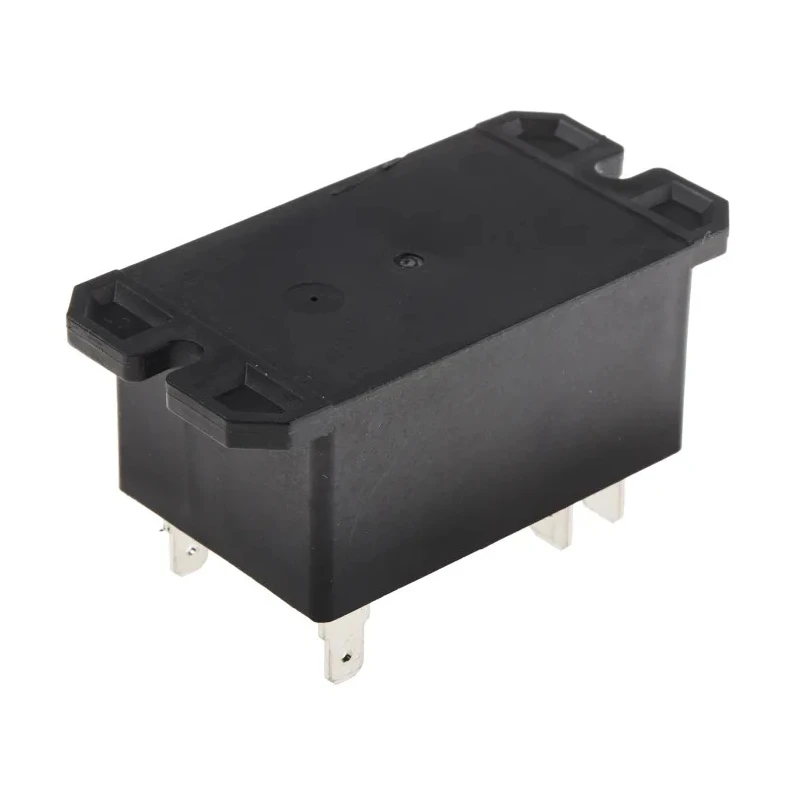

TE Connectivity Power Relay PCB Mount DPST, 24V DC Coil, 30A Switching Current, T92 Series 7-1393211-4
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 30.7mm |
| Operating Temperature Range | -40 → +65°C |
| Length | 52.3mm |
| Width | 34.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | T92 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 30A |
| Terminal type | Solder |
| Standards/Approvals | UL, CSA, UR |
| Coil Resistance | 350Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 600V ac |
| Coil Power | 1.7W |
| Switching Power | 1.7W |
Key Features
- Provides reliable switching with 30A maximum current handling capacity.
- Equipped with a 24V DC coil voltage for precise and efficient control.
- DPST (Double Pole Single Throw) contact configuration for versatile circuit control.
- Features a solder terminal type suited for secure PCB mounting.
- Operates within a temperature range of -40 to 65°C for various conditions.
- Constructed with silver alloy contact material for superior conductivity.
- Complies with UL, CSA, and UR safety standards.
- Compact dimensions enable easy circuit board integration.
Product Description
TE Connectivity 7-1393211-4 is a PCB mount power relay from the T92 series, featuring a DPST contact configuration, 24V DC coil voltage, and 30A switching current. This relay is engineered for robust switching operations in industrial, electrical, and automation systems.
The relay supports a switching AC voltage up to 600V AC and a switching power of 1.7W, making it suitable for various high-power control applications. Its coil resistance is 350Ω, enabling efficient coil power consumption of 1.7W.
Designed for PCB mounting with solder terminals, the relay dimensions are 52.3mm length, 34.5mm width, and 30.7mm height, allowing compact integration in electrical control panels and devices.
Operational temperature extends from -40°C to 65°C with survival from -55°C minimum to 85°C maximum temperatures, ensuring reliable performance in diverse environments. The contact material consists of a silver alloy, enhancing electrical conductivity and durability.
The relay meets international standards including UL, CSA, and UR, assuring compliance and safety in industrial settings. It is manufactured in China and intended for new condition use.
Reliable switching with 30A maximum current capacity. 24V DC coil voltage for precise operation. DPST contact configuration suitable for complex circuits. Solder terminal type designed for PCB use. Wide operating temperature range for varied conditions.
Silver alloy contacts for enhanced conductivity. Standards compliance for industrial safety. Compact form factor for easy installation.
This TE Connectivity power relay is ideal for use in industrial automation, control panels, HVAC systems, manufacturing equipment, and other electrical applications requiring dependable high-current switching. Explore more Power Relays and electronic components in our comprehensive Electronics & Electrical category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 30A.
This model operates with a 24V DC coil voltage.
It features a DPST (Double Pole Single Throw) contact configuration.
The relay dimensions are 52.3mm in length, 34.5mm in width, and 30.7mm in height.
The operating temperature range extends from -40°C to +65°C.
The coil resistance is 350Ω, allowing for efficient power consumption.
It is designed with solder terminals for PCB mounting.
It can switch AC voltage up to 600V AC.
This relay complies with UL, CSA, and UR safety standards.
The contact material consists of silver alloy, enhancing conductivity.
The maximum operating temperature is 85°C.
It is commonly used in industrial automation, control panels, HVAC systems, and manufacturing equipment.
