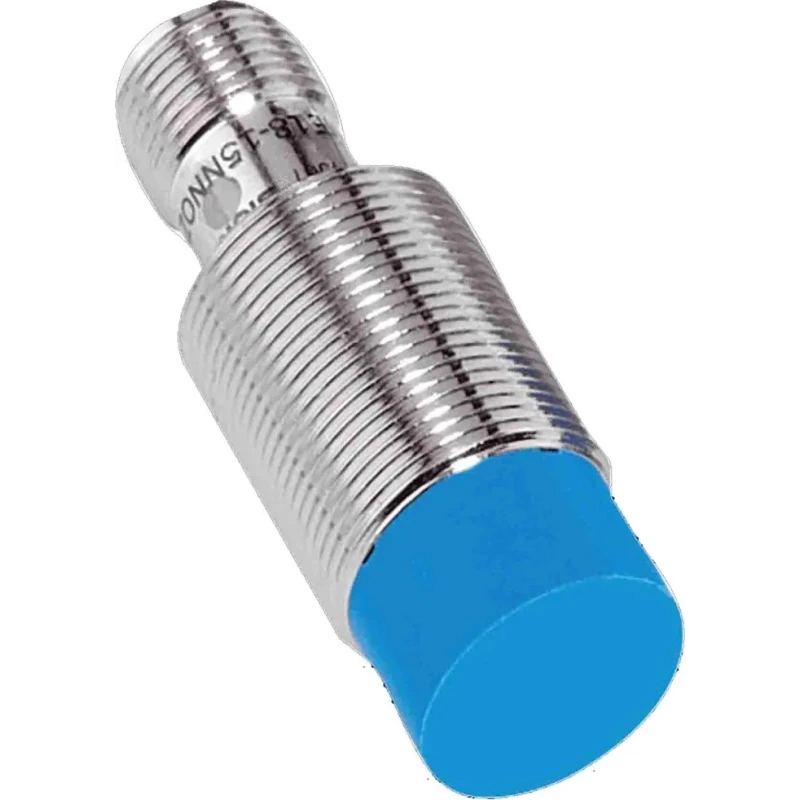

SICK Threaded Barrel Inductive Proximity Sensor M18 x 1 NPN 30 V DC 200 mA IME18-12NNSZC0K
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 50mm |
| Model | IME18-12NNSZC0K |
| IP Rating | IP67 |
| Width | 18mm |
| Mount Type | Non-Flush |
| Housing Material | Metal |
| Types | M8 to M30 |
| Output type | NPN |
| Series | IME18 |
| Maximum Operating Temperature | 75°C |
| Thread Size | M18 x 1 |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 1kHz |
| Standards/Approvals | EN 60529, EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 12mm |
| Extended sensing ranges | 1.5 mm to 38 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
Key Features
- This sensor features a metal housing with a plastic sensing face that ensures durability.
- It operates at 30 V DC supply voltage with a maximum switching current of 200 mA.
- The device supports non-flush mounting and has a 4-pin terminal configuration.
- It has an IP67 protection rating, making it resistant to dust and water ingress.
- The operating temperature range spans from -25°C to 75°C, suitable for various industrial environments.
- The sensor is unshielded and designed for high switching frequency applications up to 1 kHz.
- It includes an NPN output type and is part of the IME18 series.
- This sensor is manufactured in Hungary and complies with EN 60529 and EN 60947-5-2 standards.
Product Description
SICK IME18-12NNSZC0K Threaded Barrel Inductive Proximity Sensor, model IME18-12NNSZC0K, features an M18 x 1 threaded barrel design for reliable metal detection in industrial automation.
Operating at 30 V DC with a maximum switching current of 200 mA, this sensor detects metal targets up to a 12 mm sensing distance with precise switching behavior ensured by an integrated ASIC chip.
The sensor’s metal housing and plastic sensing face provide robustness and longevity, while its IP67 enclosure rating protects it against dust and water ingress, enabling operation in harsh environments.
Designed for non-flush mounting, the sensor has a 4-pin terminal and supports a switching frequency up to 1 kHz, making it suitable for high-speed industrial applications. Temperature tolerance ranges from -25 °C to 75 °C, allowing use in diverse thermal conditions within manufacturing, assembly lines, and machine automation.
Its unshielded design supports versatile installation where precise detection of metal components is required, such as presence detection for car body parts, positioning of tool carriers, and monitoring in material handling.
This product complies with international standards EN 60529 and EN 60947-5-2, and is manufactured in Hungary, ensuring high quality and conformity. This sensor features a metal housing with a plastic sensing face that ensures durability.
It operates at 30 V DC supply voltage with a maximum switching current of 200 mA. The device supports non-flush mounting and has a 4-pin terminal configuration. It has an IP67 protection rating, making it resistant to dust and water ingress.
The operating temperature range spans from -25°C to 75°C, suitable for various industrial environments. The sensor is unshielded and designed for high switching frequency applications up to 1 kHz. It includes an NPN output type and is part of the IME18 series.
This sensor is manufactured in Hungary and complies with EN 60529 and EN 60947-5-2 standards. Explore the Sensors category at EnvMart for further industrial automation and control solutions involving proximity sensors and related detection technologies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 12 mm for metal targets.
This model operates at a maximum supply voltage of 30 V DC.
The sensor has a maximum switching current capacity of 200 mA.
It has an IP67 protection rating, making it resistant to dust and water ingress.
The operating temperature range spans from -25 °C to 75 °C.
This model features an NPN output type.
The sensor supports non-flush mounting.
The sensor has a length of 50 mm and a width of 18 mm.
It is designed for a maximum switching frequency of 1 kHz.
This sensor is designed to detect metal materials.
It complies with the EN 60529 and EN 60947-5-2 standards.
This sensor is manufactured in Hungary.
