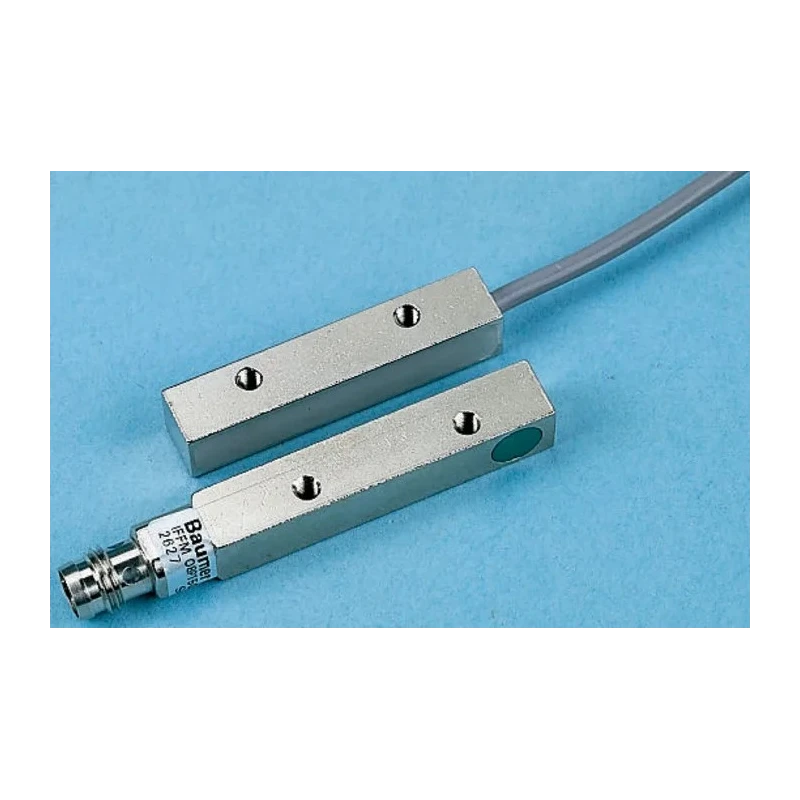

Baumer Block Inductive Proximity Sensor M8 x 1 Thread Size NPN Output 30 V dc 200mA IFFM 08P1501/O1S35L
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Baumer |
| Length | 59mm |
| Model | IFFM 08P1501/O1S35L |
| Depth | 40mm |
| IP Rating | IP67 |
| Width | 8mm |
| Mount Type | Flush |
| Housing Material | Nickel Plated Brass |
| Output type | NPN |
| Maximum Operating Temperature | 75°C |
| Thread Size | M8 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | M8 Connector |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 5kHz |
| Standards/Approvals | CE, cULus Listed, EAC |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 1.5mm |
Key Features
- Features a robust nickel plated brass housing for durability.
- Flush mounting with unshielded sensing face for precise detection.
- Operates within a temperature range of -25°C to 75°C.
- Provides maximum detection distance of 1.5 mm and switching frequency up to 5 kHz.
- Equipped with M8 connector terminals for easy installation.
- IP67 rated for dust tight and water immersion protection.
- Supplies output current up to 200mA with NPN transistor type.
- Includes short circuit and reverse polarity protection with LED indication.
Product Description
Baumer IFFM 08P1501/O1S35L block inductive proximity sensor offers precise and reliable object detection for various industrial automation applications. Featuring a compact block-style housing with M8 x 1 threading, this sensor is designed for flush mounting and provides an effective maximum detection distance of 1.5 mm. The sensor output is NPN type, operating at a maximum DC voltage of 30 V and capable of switching currents up to 200 mA, making it suitable for interfacing with typical automation control systems.
The sensor is built with a nickel plated brass body and a PBT sensing face, ensuring long-term durability in industrial environments. It carries an IP67 rating, offering protection against dust ingress and water immersion up to 1 meter depth, ideal for harsh or wet conditions. The operating temperature range from -25°C to 75°C allows stable performance across varied environmental conditions.
This model incorporates both short circuit and reverse polarity protection, enhancing safety and longevity. An integrated LED indicator provides clear visual feedback on the sensor's switching status, simplifying troubleshooting and monitoring.
Applications include position detection on conveyors, assembly lines, packaging equipment, and other automated machinery where non-contact detection of metal objects is required. The M8 connector and flush mounting style facilitate easy installation and integration into existing control systems.
Robust nickel plated brass housing with PBT sensing face. Flush mount design for seamless integration. Operating voltage up to 30 V dc with NPN output transistor. Detection range up to 1.5 mm with high switching frequency of 5 kHz.
IP67 rated for dust and water protection. Short circuit and reverse polarity protection included. LED indication for on/off sensor status. Operating temperature from -25°C to 75°C. Ideal for industrial automation and control applications.
This Baumer Inductive Proximity Sensor is manufactured in Switzerland and meets CE, cULus, and EAC standards and approvals. Its reliable performance and rugged design make it a preferred choice for precision sensing tasks in industrial environments. Explore more electronic sensors and automation components suitable for your projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 1.5 mm.
It operates within a temperature range of -25°C to 75°C.
This sensor features an NPN output type.
The maximum switching frequency is up to 5 kHz.
The sensor has a length of 59 mm, a width of 8 mm, and a depth of 40 mm.
It has an IP67 rating, providing protection against dust and water immersion.
The housing is made of nickel plated brass, and the sensing face is made of PBT.
It is equipped with M8 connector terminals for easy installation.
It includes short circuit and reverse polarity protection, along with an LED indicator for status.
It meets CE, cULus, and EAC standards and approvals.
This model is suitable for position detection on conveyors, assembly lines, and packaging equipment.
The maximum supply voltage is 30 V dc.
