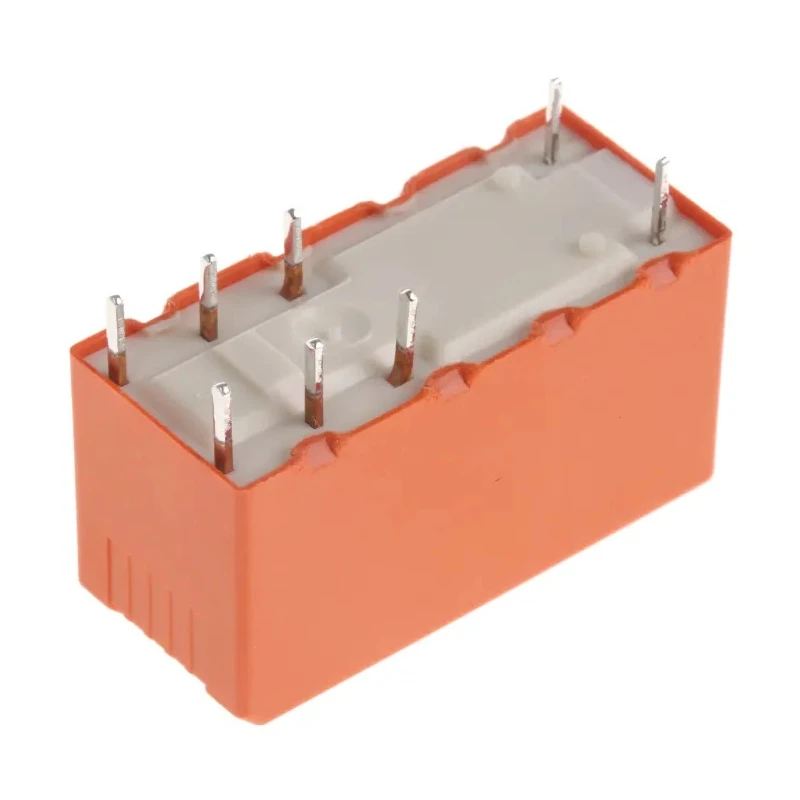

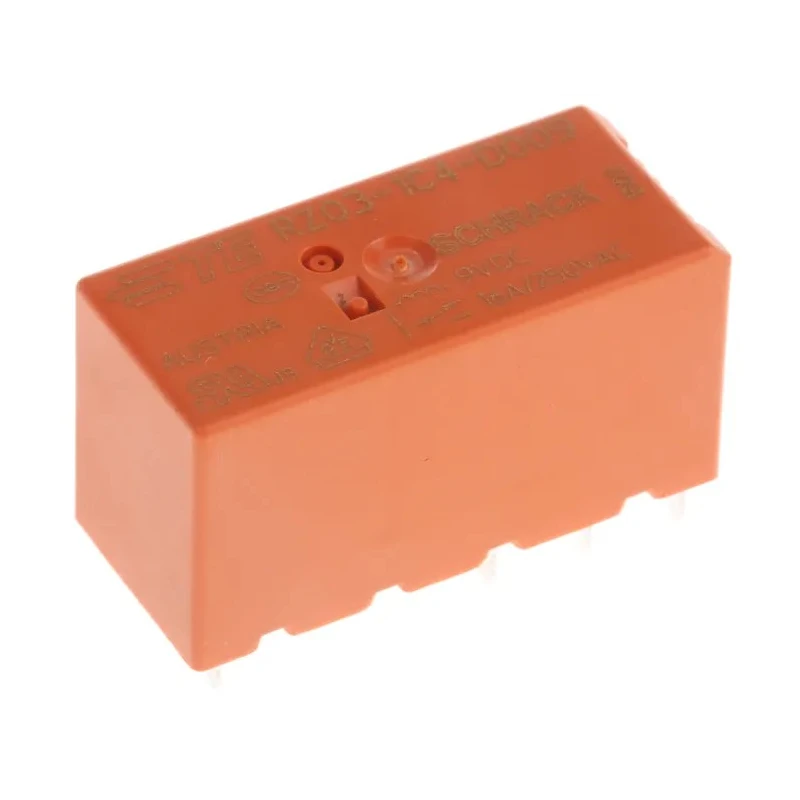

TE Connectivity RZ Series PCB Power Relay, 9V DC Coil, 16A Switching Current, SPDT, Silver Alloy Contacts 2-1415899-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 29.00 x 12.70 x 15.70 mm |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RZ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | CSA, UR, UL |
| Coil Resistance | 200Ω |
| Coil Voltage | 9V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
| Switching Power | 400mW |
Key Features
- This relay is designed for PCB mounting applications.
- The coil power is 400mW with a coil resistance of 200 ohms.
- It operates reliably between -40°C and 85°C.
- Constructed with silver alloy contacts ensuring durability and performance.
- Switching power capacity is 400mW, and it supports switching AC voltage up to 400V.
- Terminal type is solder suitable for secure connections.
- Meets industry approvals including CSA, UR, and UL standards.
- Part of the RZ series known for reinforced insulation and flux-tight design.
Product Description
TE Connectivity 2-1415899-1 RZ Series PCB Power Relay is engineered with a 9V DC coil and capable of handling a switching current of 16A with SPDT contact configuration, making it suitable for demanding PCB applications.
This relay features a robust silver alloy contact material enhancing durability and ensures flux-tight protection. It holds industrial standard approvals such as CSA, UR, and UL ensuring compliance with safety and quality standards.
The compact relay dimensions of 29.00 x 12.70 x 15.70 mm align well with space-saving PCB designs. With a coil resistance of 200 ohms and coil power rating of 400mW, it provides efficient operation with a switching AC voltage capacity of up to 400V.
Operating temperature range is from -40°C to 85°C, catering to various industrial environments. The relay's terminal type is solder, enabling reliable and consistent electrical connections on PCB assemblies.
Belonging to the RZ series, this relay offers reinforced insulation rated at 5kV / 10mm and is designed to meet appliance industry requirements as per IEC60335-1 standards. It is ideal for use in industrial automation, control systems, electronics manufacturing, and power distribution sectors.
This relay is designed for PCB mounting applications. The coil power is 400mW with a coil resistance of 200 ohms. It operates reliably between -40°C and 85°C. Constructed with silver alloy contacts ensuring durability and performance.
Dimensions are compact at 29mm length, 12.7mm width, and 15.7mm height. Switching power capacity is 400mW, and it supports switching AC voltage up to 400V. Terminal type is solder suitable for secure connections. Meets industry approvals including CSA, UR, and UL standards.
Part of the RZ series known for reinforced insulation and flux-tight design. Ideal for industrial, automation, electronic, and power control applications.
The TE Connectivity 2-1415899-1 relay is a reliable component for enhancing control and safety in professional electronic and electrical systems. Explore more products in the Power Relay category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 16A, making it suitable for various applications requiring significant current handling.
This relay operates with a coil voltage of 9V DC, which is necessary for its activation.
The dimensions of this relay are 29.00 mm in length, 12.70 mm in width, and 15.70 mm in height, making it compact for PCB mounting.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
The maximum operating temperature for this relay is 85°C, which allows it to function in various industrial environments.
The coil resistance is 200 ohms, which is essential for determining the current draw when the relay is activated.
The relay has a solder terminal type, which ensures secure connections on PCB assemblies.
This relay meets industry standards and approvals including CSA, UR, and UL, ensuring compliance with safety and quality requirements.
The minimum operating temperature for this relay is -40°C, allowing it to operate in cold environments.
It supports a switching AC voltage of up to 400V, making it suitable for various electrical applications.
The coil power rating is 400mW, which indicates the power consumption required to energize the coil.
This relay is manufactured in India, contributing to its availability in various markets.
