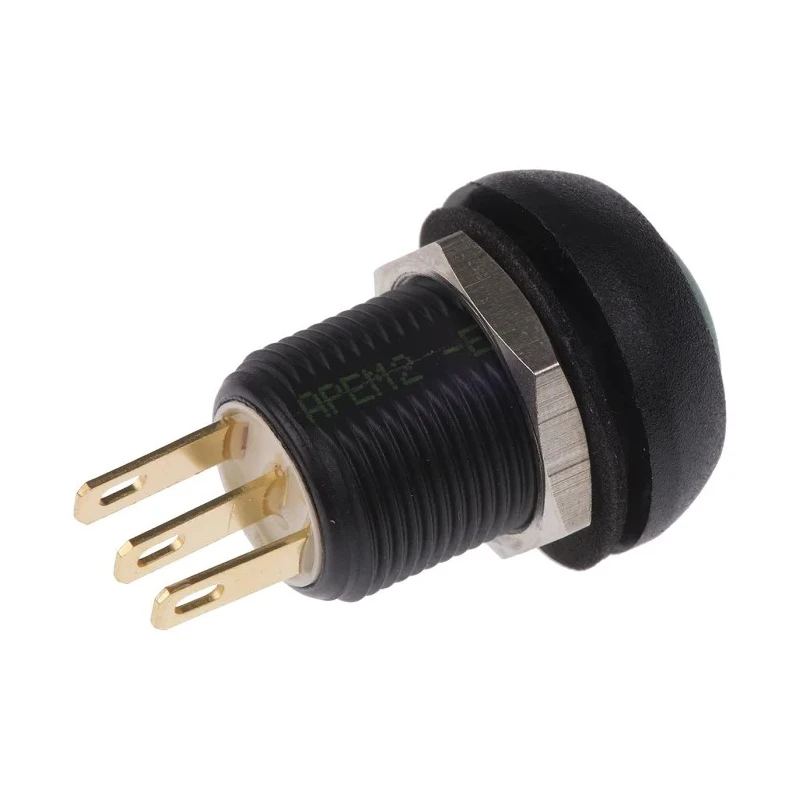

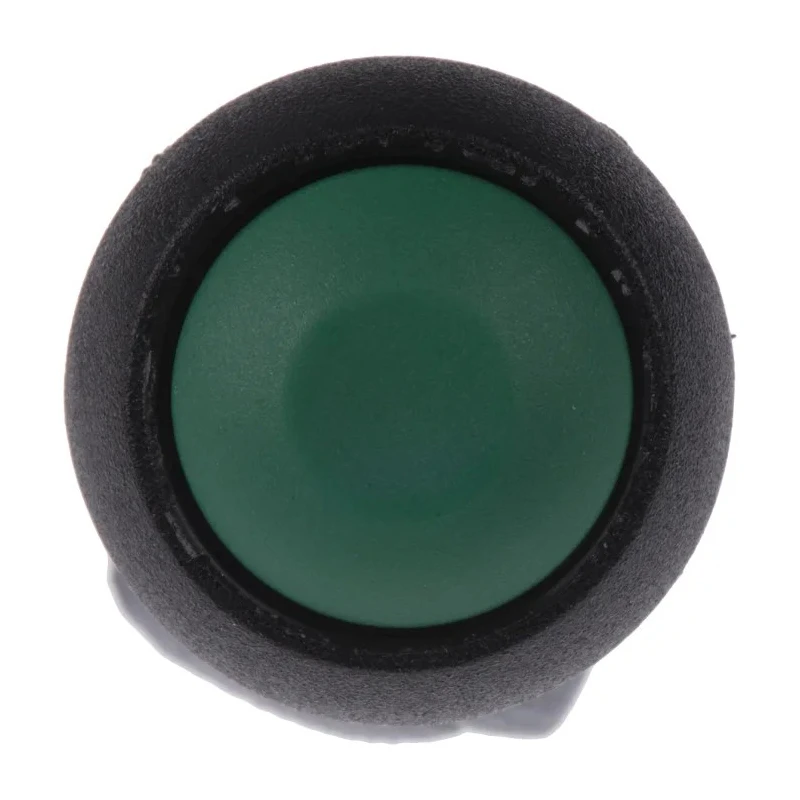

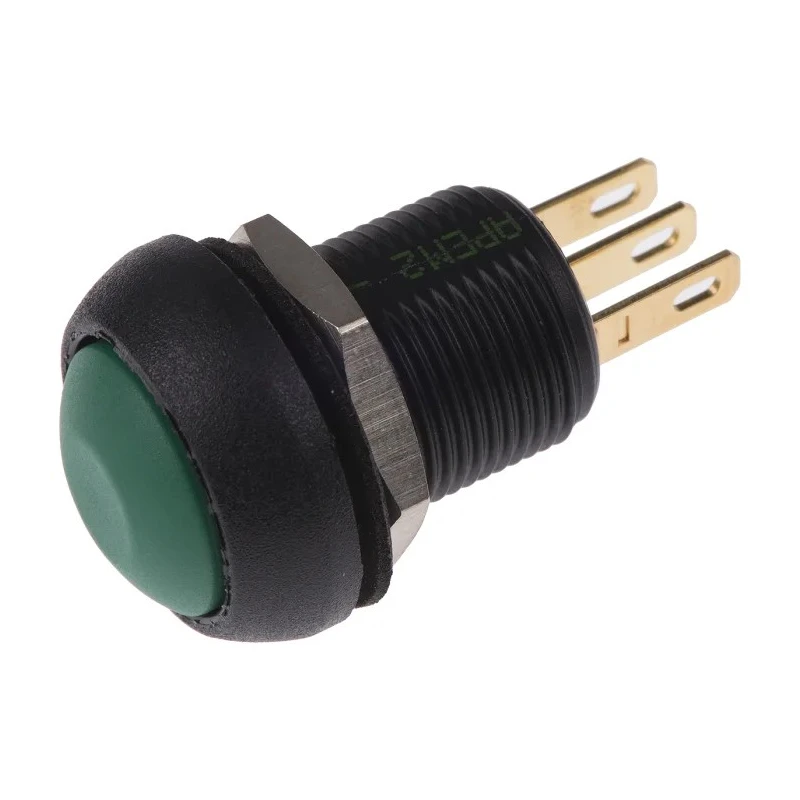

APEM IM Series Green Momentary Push Button Switch, Panel Mount, 13.6 mm Cutout, SPDT, IP67, 28 V dc IMR7Z432UL
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 18.1mm |
| Length | 27mm |
| Model | IMR7Z432UL |
| IP Rating | IP67 |
| Width | 17.5mm |
| Mount Type | Panel |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | NC/NO |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Shock Resistance | 50g - 11 ms according to IEC 68-2-27 |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Contact DC Voltage | 28V dc |
| Actuator Style | Round |
| Switch Contact Current | 3A |
Key Features
- The actuator is green and round, providing tactile feedback on activation.
- Switch operation is momentary with normally closed and normally open contacts.
- Sealed to IP67 rating, ensuring dust-tight and water ingress protection.
- Constructed with gold plated silver contacts for durability and reliable conduction.
- Supports a contact DC voltage up to 28 V and a switch contact current of 3 A.
- Robust mechanical endurance with operability beyond one million cycles.
- Shock resistance tested up to 50g for 11 ms according to IEC 68-2-27 standard.
- Compact dimensions with a panel cutout size of 13.6 mm and overall size approximately 27 mm length by 18.1 mm height and 17.5 mm width.
Product Description
APEM IMR7Z432UL is a high-quality push button switch from the IM Series, designed for momentary operation and panel mounting. It features a green round actuator and is sealed to IP67 standards, making it ideal for industrial applications demanding dust and waterproof switches.
This switch offers SPDT contact configuration to meet various circuit requirements, with gold plated silver contacts rated for 3 A at 28 V dc, ensuring reliable electrical connectivity.
The device exhibits excellent mechanical endurance with an operating life exceeding one million cycles, accompanied by shock resistance up to 50g for 11 ms tested to IEC 68-2-27 standards, suitable for harsh and noisy environments.
Its compact dimensions (27 mm length, 18.1 mm height, 17.5 mm width) and a panel cutout size of 13.6 mm enable easy installation. Operating temperature ranges from -40°C to 85°C allow usage under extreme conditions.
Typically used in industrial automation, control panels, machinery interfaces, and other electrical applications requiring sealed momentary switches with tactile feedback. The actuator color is green and the style is round for ergonomic operation.
The switch operation is momentary, returning to its default position automatically. It is rated IP67 for protection against dust and water immersion. Gold plated silver contacts provide excellent conductivity and longevity.
Fits a 13.6 mm panel cutout size, supporting quick connect terminals. Meets RoHS standards for environmental compliance. Designed and manufactured in France, ensuring quality and reliability.
This APEM Push Button Switch IMR7Z432UL is perfect for industrial, electrical, automation, and manufacturing applications demanding sealed and reliable control interface elements. Explore more variants and components in the APEM IM Series at EnvMart for tailored industrial switch solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
It has an IP67 rating, providing protection against dust and water immersion.
This switch features a Single Pole Double Throw (SPDT) contact configuration.
The overall dimensions are approximately 27 mm in length, 18.1 mm in height, and 17.5 mm in width, with a panel cutout size of 13.6 mm.
The switch is rated for a contact current of 3 A.
It operates as a momentary switch, returning to its default position automatically after activation.
It uses quick connect terminals for easy installation.
It has been tested for shock resistance up to 50g for 11 ms according to IEC 68-2-27 standards.
The contacts are constructed with gold plated silver for enhanced conductivity and durability.
The minimum operating temperature is -40°C.
This switch meets RoHS standards for environmental compliance.
It is manufactured in France.
