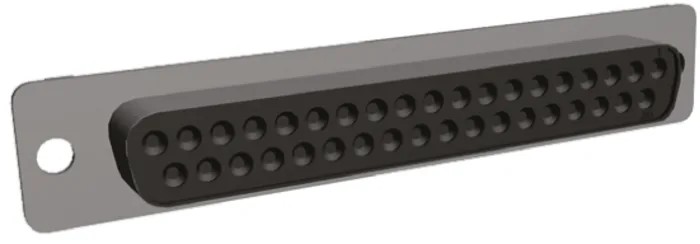

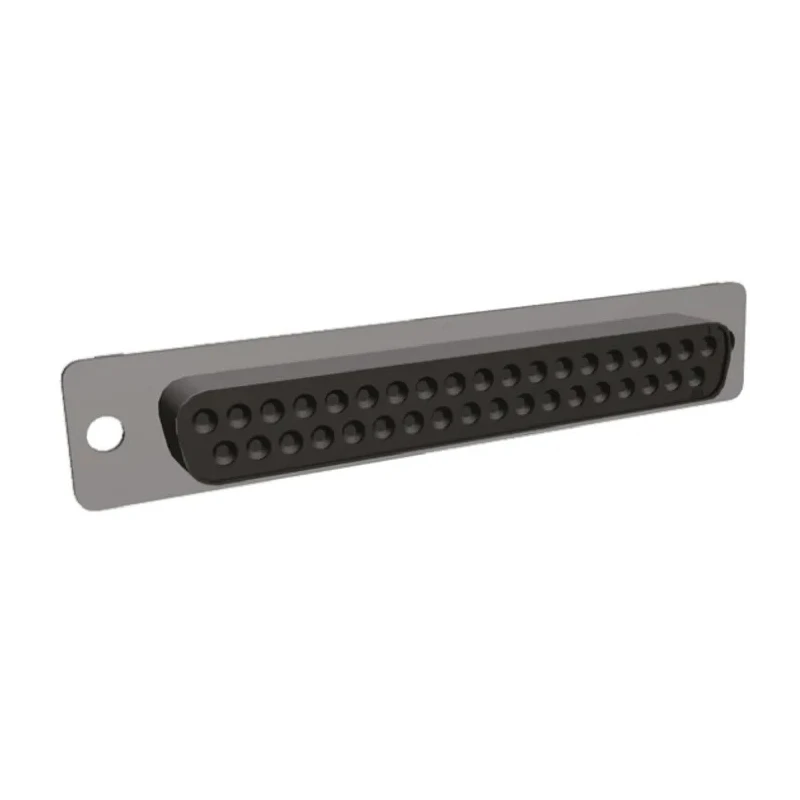

TE Connectivity AMPLIMITE HDP-20 37 Way Straight Cable D-Sub Connector Female 250V Crimp Termination 205209-7
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250.0V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 205209-7 |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HDP-20 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 37 |
| Contact Gender | Female |
| Connector Gender | Female |
| D-Sub Shell Size | DS-4 |
Key Features
- The connector features 37 female contacts arranged in a straight orientation.
- It has a DS-4 D-Sub shell size made of durable steel material.
- Crimp termination ensures secure electrical contact and ease of assembly.
- Operating temperature range spans from -55°C to 105°C for versatile applications.
- Contacts are made from phosphor bronze and plated with gold for improved conductivity.
- The black thermoplastic insert is rated 94V0 for flame retardancy and mechanical stability.
- This high-density connector saves space by offering 65% more contacts than standard HD-20 types.
- Widely used in communication, data interfaces, and industrial electronics.
Product Description
TE Connectivity 205209-7 AMPLIMITE HDP-20 37 Way Straight Cable D-Sub Connector Female provides a robust and high-density connection solution for electronic and industrial applications. Rated for 250 volts, it features 37 female crimp contacts housed within a DS-4 sized steel shell with a black 94V0 thermoplastic insert. The design is optimized for space savings, offering 65% greater contact density than conventional HD-20 connectors.
This connector is engineered to withstand harsh environments with an operating temperature range from -55°C to 105°C. Its phosphor bronze contacts with gold plating ensure excellent electrical conduction and corrosion resistance, supporting reliable signal transmission in data communication interfaces and control systems.
The crimp snap-in contact design allows loading of individual contacts as needed, which reduces assembly times and enhances customization. The steel shell is tin plated, providing sturdy mechanical protection and EMI shielding capabilities. The straight cable mount type is suitable for a wide range of cable assemblies requiring female D-Sub interfacing.
The AMPLIMITE series is favored in industrial, laboratory, communication equipment, and manufacturing applications where high contact density and secure connections are critical. Available accessory options include crimp contacts, locking posts, spring latches, and threaded latching blocks to ensure safe and stable mating of connectors.
The connector includes 37 female phosphor bronze contacts with gold plating for superior conductivity. Steel housing ensures robustness and electromagnetic interference shielding. Crimp termination supports durable, high-quality cable connections.
Suitable for harsh environments due to wide operating temperature range. Compact HDP-20 series design offers significant space savings. Compatible with a range of accessories for enhanced functionality.
EnvMart offers this TE Connectivity AMPLIMITE HDP-20 connector ideal for electronic manufacturers, system integrators, and repair professionals seeking dependable and compact D-Sub Connectors. Explore EnvMart’s Electronics Components category for complementary connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TE Connectivity AMPLIMITE HDP-20 connector is rated for 250 volts.
This model features 37 female contacts arranged in a straight orientation.
The housing is made of steel, while the contacts are made from phosphor bronze and plated with gold for improved conductivity.
It operates within a temperature range of -55°C to 105°C, making it suitable for harsh environments.
This unit utilizes crimp termination, which ensures secure electrical contact and ease of assembly.
The connector has a DS-4 D-Sub shell size.
The contacts are arranged in a straight orientation.
It is widely used in communication, data interfaces, and industrial electronics applications.
Yes, the steel housing provides sturdy mechanical protection and EMI shielding capabilities.
Available accessories include crimp contacts, locking posts, spring latches, and threaded latching blocks for enhanced functionality.
The connector is manufactured in India.
Gold plating on the contacts ensures excellent electrical conduction and corrosion resistance, supporting reliable signal transmission.
