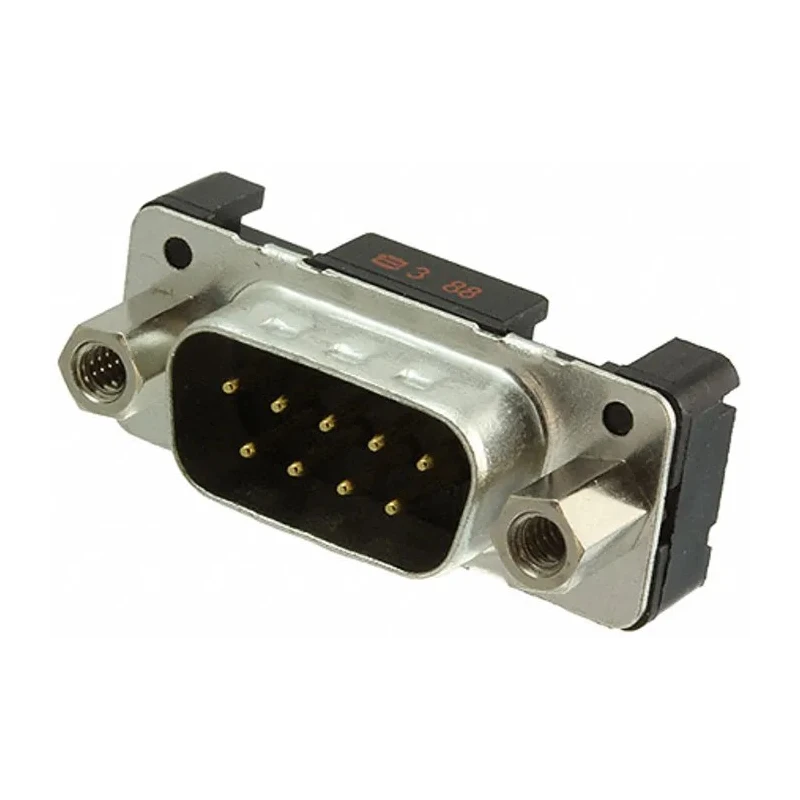

HARTING 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Male 09661217703

Free Delivery in India | Lowest Global Shipping Charges

HARTING 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Male 09661217703

Name: HARTING 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Male 09661217703
Brand: HARTING
SKU: 104069



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	1.0kV
Brand	HARTING
Orientation	Straight
Current	7.5A
Mount Type	Through Hole
Housing Material	Steel
Contact Material	Copper Alloy
Series	0966
Mounting Hardware	4 to 40 UNC
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.74mm
Standards/Approvals	UL 94-V0, RoHS, UL Recognised
Contact Plating	Steel
Number of Contacts	9
Contact Gender	Male
Connector Gender	Male

Key Features

Features 9 contacts designed for electronic applications.
Current rating of 7.5A suitable for moderate power transmission.
Constructed with steel housing and copper alloy contacts plated with steel for durability.
Operates safely at voltages up to 1.0kV with a pitch of 2.74 mm between contacts.
Termination is via soldering to ensure reliable connections.
Suitable for operation in temperature range -55°C to 125°C.
Conforms to UL 94-V0, RoHS directives and is UL Recognised.
Standardized per MIL-C-24308, DIN 41652, and CECC 75301-802 specifications.

Product Description

HARTING 09661217703 is a 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector featuring a robust steel housing and high-quality copper alloy contacts with steel plating. Designed for reliable and durable electronic connections, this D-Sub connector is equipped with 4 to 40 UNC male mounting hardware suitable for through hole solder termination.

This connector operates at a voltage of 1.0kV and supports a current of up to 7.5 Amperes, making it suitable for moderate power electronic interfaces. It performs reliably in extreme temperatures, ranging from minus 55°C to a maximum of 125°C, offering use in harsh industrial environments.

The 2.74 mm pitch ensures close contact spacing, enabling compact PCB designs without compromising connectivity integrity. It complies with recognized safety and quality standards including UL 94-V0 flammability rating, RoHS environmental directive, and has UL Recognised certification, assuring its quality and regulatory compliance.

This D-Sub Connector series 0966 is designed to meet MIL-C-24308, DIN 41652, and CECC 75301-802 standards, commonly required in industrial, manufacturing, laboratory, and electronic control applications. The male connector gender and straight orientation make it highly compatible with standard PCB mounting and connector assemblies.

9 contact points for efficient signal or power transmission. Steel housing provides mechanical strength and electromagnetic shielding. Copper alloy contacts with steel plating provide reliable corrosion resistance and conductivity.

Solder termination type ensures solid and stable wire bonding to PCBs. Mounting hardware size 4 to 40 UNC for secure fixture on assemblies. Wide operating temperature range for versatile industrial applications. Conforms to major international connector standards for interchangeability and safety.

The HARTING 09661217703 connector enhances electronic system performance, suitable for use in industrial automation, telecommunications, instrumentation, and other electronic equipment requiring dependable PCB connectors. Its precise dimensions and standard compliance make it ideal for both new designs and replacement tasks in manufacturing setups.
