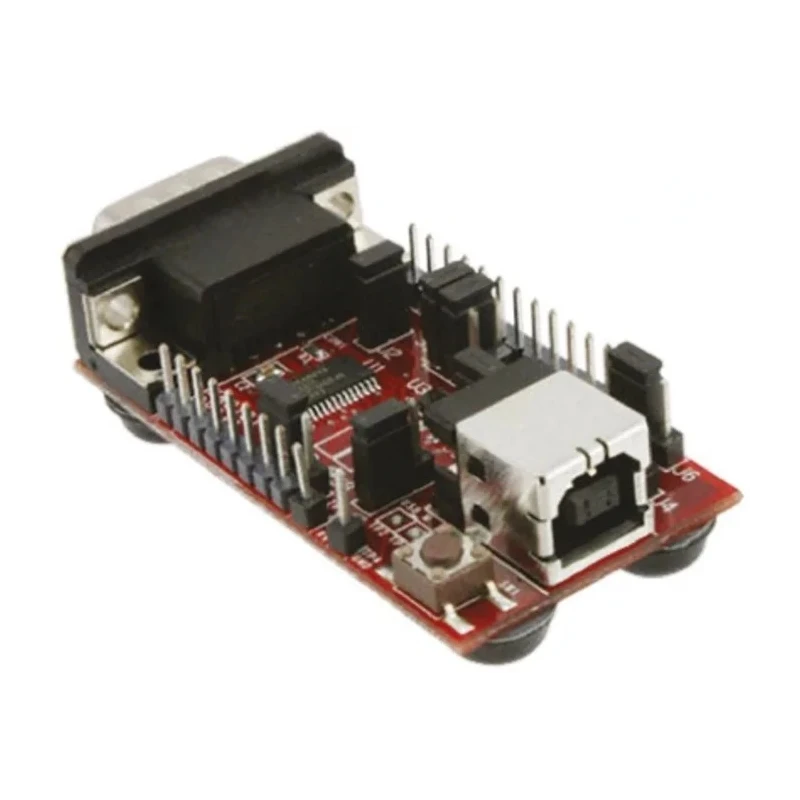

MaxLinear XR21B1411 UART-USB Communication and Wireless Evaluation Board 48 MHz XR21B1411IL-0A-EB

MaxLinear XR21B1411IL-0A-EB is an advanced UART-USB evaluation board designed for communication and wireless development applications. Operating at a maximum frequency of 48 MHz, this evaluation board integrates the XR21B1411 UART device featuring a USB interface compliant with Full Speed USB 2.0 specifications, supporting data transfer rates up to 12 Mbps. It is ideally suited for industrial, laboratory, and development environments requiring reliable serial to USB communication.

The board incorporates ±15kV Human Body Model (HBM) Electrostatic Discharge (ESD) protection on the USBD+ and USBD- lines, ensuring robust operation in various electrical environments. It supports USB suspend, resume, and remote wakeup functionalities enhancing power management and device responsiveness.

Enhanced UART features include a fractional baud rate generator, a 128-byte transmit FIFO, and a 384-byte receive FIFO buffer to facilitate efficient data handling. The device supports configurations with 7, 8, or 9 data bits, 1 or 2 stop bits, and multiple parity options including odd, even, mark, space, or none. Automatic hardware flow control (RTS/CTS or DTR/DSR) and software flow control (Xon/Xoff) are also supported, increasing communication flexibility and reliability.

Additional capabilities include multidrop mode for connecting multiple devices, auto transceiver control, half-duplex communication mode, and selectable general purpose input/output (GPIO) or modem I/O lines. The internal 48MHz clock with clock divisors programmable down to 6MHz allows customization for various application timing requirements. The board operates on a single +5V power supply and possesses 5V tolerant inputs, enabling compatibility with a wide range of electronic modules and development platforms.

The USB interface supports Full Speed USB 2.0 compliant 12Mbps data transfer rate. Features unique pre-programmed USB serial number for device identification. Supports USB suspend, resume, and remote wakeup operations. Offers enhanced UART capabilities including fractional baud rate generator and hardware/software flow control.

Includes ±15kV HBM ESD protection on USBD+/USBD- lines. Operates from a single +5V power supply with 5V tolerant inputs. Supplies internal 48MHz clock with programmable clock divisors down to 6MHz. Supports 7, 8, or 9 data bits with multiple parity and stop bit options.

Enables half-duplex and multidrop mode operations with selectable GPIO or modem I/O.

This evaluation board is widely used across industrial communications, wireless development, embedded system prototyping, and testing labs. It provides a flexible, durable solution for engineers and developers working on USB to UART conversion and communication interface testing.
