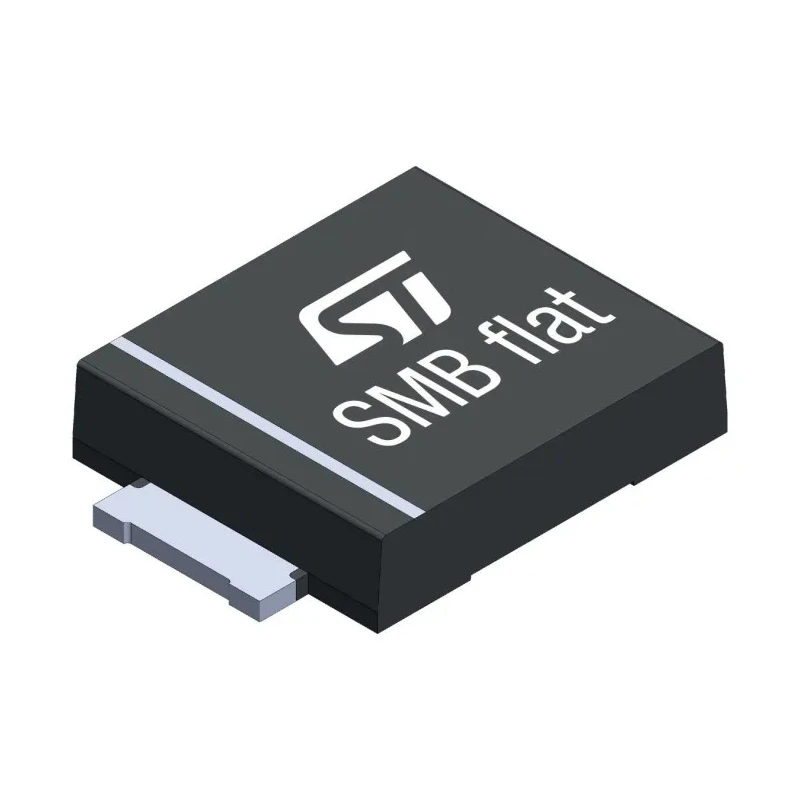

STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W, 2-Pin SMB SMB6F22A

STMicroelectronics SMB6F22A is a 1-element uni-directional transient voltage suppression (TVS) diode engineered to protect sensitive electronic components from voltage surges, spikes, and electrostatic discharges in industrial, electronic, automotive, and power applications.

This diode supports a peak pulse power dissipation of 600 W (with 10/1000 μs waveform) and an exceptional 4 kW rating at 8/20 μs, safeguarding equipment from transient voltage events.

The device features a low leakage current of 0.2 μA at room temperature (25 °C), increasing only slightly at higher temperatures, which ensures energy efficiency in high-end circuits that demand stability and longevity.

Compactly housed in a surface-mount SMB package (3.95 mm x 4.6 mm x 1.05 mm), it provides a flat and thin 1 mm profile suitable for densely packed circuit boards.

Operating temperature ranges from -55 °C to 175 °C, allowing stable performance under varying environmental conditions. The diode’s matte tin plating lead finish offers robust solderability and resistance to corrosion.

Electrical characteristics include a minimum breakdown voltage (Vbr) of 24.4 V, maximum reverse stand-off voltage (Vwm) of 22 V, clamping voltage (Vc) of 48.3 V, and a test current (It) of 1 mA, making it ideal for protecting power lines and signal lines within defined voltage limits.

The diode delivers a maximum peak pulse current (Ippm) of 83 A and incorporates electrostatic discharge (ESD) protection for reliable circuit safeguarding.

Its planar technology construction supports high junction temperatures and long-term operational reliability, fitting for applications in industrial electronics, manufacturing equipment, power supplies, and automotive electronics, where managing surge transients is critical.

The product is manufactured in Morocco and complies with relevant industry standards, although it is not certified as automotive grade. Uni-directional diode configuration designed to protect sensitive circuits from surges.

600 W peak pulse power dissipation with 48.3 V clamping voltage. Low leakage current fostering energy efficiency and circuit stability. Compact SMB surface mount package for space-efficient PCB layouts. Wide operating temperature span from -55 °C to 175 °C ensures ruggedness.

Matte tin plating finish resists corrosion and facilitates soldering. High peak pulse current of 83 A suitable for demanding transient conditions. Flat, thin 1 mm profile conforms to modern miniaturized electronic designs.

Planar technology for excellent junction performance and reliability. Manufactured in Morocco with robust quality assurance. Browse the Electronics & Electricals TVS Diode category on EnvMart for a wide selection of diode protection solutions from leading brands like STMicroelectronics.
