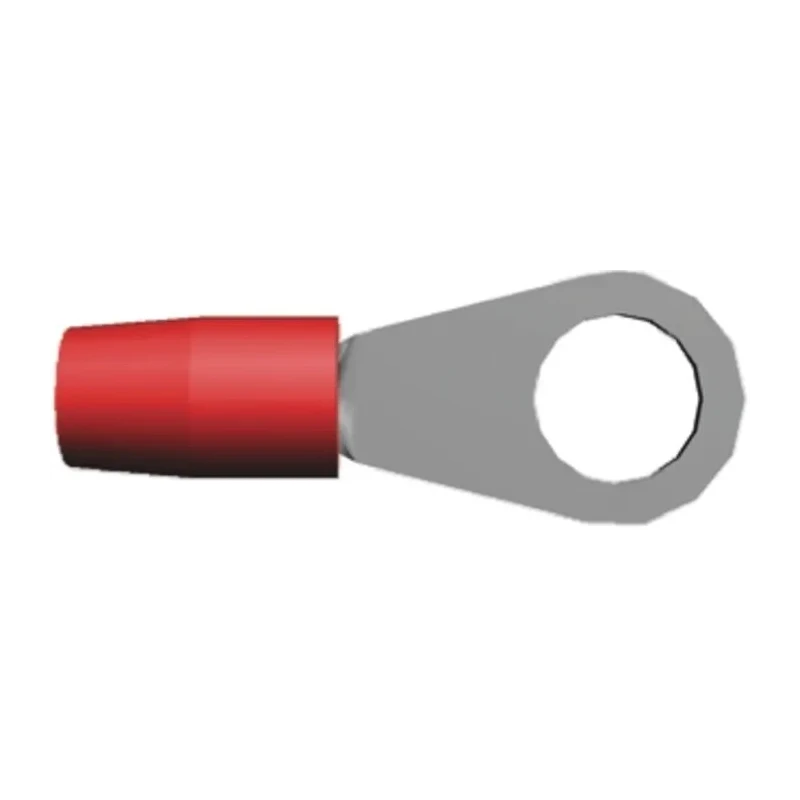

TE Connectivity TERMINYL Insulated Ring Terminal M10 Stud Size 8 AWG Wire Size Red 324045
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 1.02mm |
| Model | 324045 |
| Insulation | Insulated |
| Overall Length | 39.17mm |
| Contact Material | Copper |
| Series | TERMINYL |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 6.6mm² |
| Maximum Wire Size mm² | 10.5mm² |
| Maximum Wire Size AWG | 8AWG |
| Outer Ring Diameter | 14.91mm |
| Inner Ring Diameter | 9.91mm |
| Stud Size | M10 |
Key Features
- The ring terminal features a 14.91mm outer ring diameter and a 9.91mm inner ring diameter.
- It has an overall length of 39.17mm and thickness of 1.02mm.
- The contact is made of copper and plated with tin for corrosion resistance.
- Suitable for wire sizes from 8 AWG (6.6mm²) to a maximum of 10.5mm².
- The terminal is insulated with durable red nylon for electrical safety.
- Engineered to withstand extreme vibration, shock, and high temperatures.
- Conforms to MIL-T-7928, Type II, Class 2 standards for reliability and performance.
Product Description
TE Connectivity 324045 TERMINYL Insulated Ring Terminal is a high-quality crimp terminal designed for electrical and industrial applications requiring secure connections on M10 stud sizes and 8 AWG wire sizes. The ring terminal features nylon insulation, providing excellent dielectric strength and electrical safety. The contact part is constructed of high-grade copper for superior conductivity and durability, with tin plating that offers resistance to corrosion and environmental factors.
The terminal's dimensions include an outer ring diameter of 14.91mm, inner ring diameter of 9.91mm, total length of 39.17mm, and a thickness of 1.02mm. The insulation is color-coded red for easy identification in wiring systems. This product is engineered to endure mechanical stresses such as vibration and shock, as well as elevated temperatures commonly encountered in automotive, industrial, and electrical assembly settings.
Designed to accommodate wire sizes from 8 AWG (6.6mm²) up to 10.5mm², this TERMINYL series ring terminal ensures a reliable, stable connection that supports electrical integrity. It complies with MIL-T-7928, Type II, Class 2 standards, underscoring its suitability for demanding professional uses in manufacturing, assembly, and maintenance across sectors like industrial automation, HVAC, and electrical equipment.
The ring terminal features a high conductivity copper contact with tin plating. Nylon insulated funnel entry facilitates easy wire insertion and insulation support. Durable design withstands extreme vibration, mechanical shock, and temperature variations.
Color-coded red insulation enables straightforward identification in harnessing and wiring tasks. Meets military specification MIL-T-7928, ensuring ruggedness and reliability.
This product is ideal for use in electrical connections in industrial plants, commercial electrical equipment, automotive wiring harnesses, and other professional applications where secure and safe ring terminals are required. Its robust construction and compliance with standards make it a trusted component for critical wiring systems.
Explore the TE Connectivity range and other high-quality Ring Terminals in the Electronics Components category at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can accommodate wire sizes up to 8 AWG, which is equivalent to a maximum of 10.5mm².
The ring terminal has an outer ring diameter of 14.91mm, an inner ring diameter of 9.91mm, an overall length of 39.17mm, and a thickness of 1.02mm.
The contact part is made of copper and is plated with tin to enhance corrosion resistance.
It features nylon insulation, which provides excellent dielectric strength and electrical safety.
This terminal is designed for M10 stud sizes, making it suitable for various electrical connections.
Yes, it conforms to MIL-T-7928, Type II, Class 2 standards, ensuring reliability and performance in demanding applications.
It is ideal for use in electrical connections within industrial plants, commercial electrical equipment, and automotive wiring harnesses.
The nylon insulated funnel entry facilitates easy wire insertion and provides insulation support during the crimping process.
The ring terminal is manufactured in the United States.
The insulation is made of durable nylon, which is color-coded red for easy identification in wiring systems.
It is engineered to withstand extreme vibration, shock, and high temperatures, making it suitable for various demanding environments.
The overall length of this terminal is 39.17mm.
