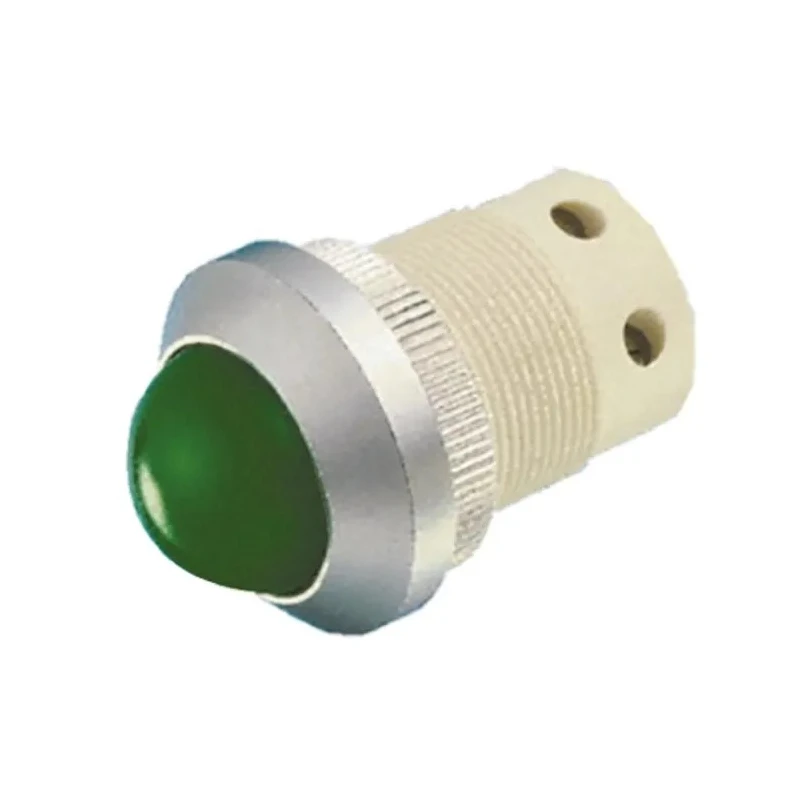

Signal Construct Green LED Panel Mount Indicator, 22 mm Mount Hole, Screw Termination, 20-28V SMQD22734
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Signal Construct |
| Length | 43.8mm |
| Model | SMQD22734 |
| Series | SMQD |
| Number Of Leds | 1 |
| Sub Type | LED |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Maximum Supply Voltage | 28V |
| Minimum Supply Voltage | 20V |
| Mount Hole Size | 22 mm |
Key Features
- This panel mount indicator features a green LED for clear signaling.
- It supports supply voltages from 20V minimum up to 28V maximum.
- The device employs screw terminals suitable for wires up to 1.5 mm².
- Mount hole diameter is precise at 22 mm to fit standard panels.
- The indicator is sealed to IP67 ensuring dust and water resistance.
- Includes an O-ring, circular fixing nut, and spring washer for secure installation.
- Device length measures 43.8 mm for compact panel integration.
- Constructed with high quality materials and RoHS compliant for industrial use.
Product Description
Signal Construct SMQD22734 is a green LED panel mount indicator designed for robust industrial and electronic applications. Featuring a 22 mm mounting hole size with a screw termination system, this indicator is built for easy installation and reliable performance in diverse environments.
Operating voltage ranges from a minimum of 20V to a maximum of 28V, suitable for both AC and DC supply. The LED offers bright, diffused green light for clear visual signaling on control panels and equipment.
The device housing is crafted for durability, sealed to an IP67 standard to resist dust and moisture ingress, making it ideal for use in harsh industrial environments, HVAC systems, manufacturing controls, and electrical panels.
Installation convenience is enhanced by supplied components including an O-ring, circular fixing nut, and spring washer, ensuring a secure and vibration-resistant mount. The screw terminals accommodate wire sizes up to 1.5 mm², complying with standard wiring practices.
The 43.8 mm overall length makes this indicator compact enough for space-limited panel applications while maintaining excellent visibility and operational reliability. This panel mount indicator features a green LED for clear signaling.
It supports supply voltages from 20V minimum up to 28V maximum. The device employs screw terminals suitable for wires up to 1.5 mm². Mount hole diameter is precise at 22 mm to fit standard panels. The indicator is sealed to IP67 ensuring dust and water resistance.
Includes an O-ring, circular fixing nut, and spring washer for secure installation. Device length measures 43.8 mm for compact panel integration. Constructed with high quality materials and RoHS compliant for industrial use.
Polarity can be reversed for DC usage applications.
This Signal Construct indicator is suitable for electrical, industrial automation, manufacturing equipment, HVAC systems, and other control panel installations requiring a reliable LED signaling device.
Explore more from the Panel Mount Indicator range to find compatible components and upgrades for your industrial and commercial electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range for this model is from a minimum of 20V to a maximum of 28V, suitable for both AC and DC supply.
This panel mount indicator requires a precise mounting hole size of 22 mm for installation in standard panels.
It employs screw terminals that are suitable for wires up to 1.5 mm², facilitating easy connections.
The overall length of this panel mount indicator is 43.8 mm, making it compact for panel applications.
This model features a green LED, providing clear visual signaling on control panels and equipment.
The device is sealed to an IP67 standard, ensuring it is resistant to dust and moisture ingress.
Included with the indicator are an O-ring, circular fixing nut, and spring washer to ensure a secure and vibration-resistant mount.
Yes, this panel mount indicator is RoHS compliant, making it suitable for industrial use.
Yes, the polarity can be reversed for DC usage applications, allowing for flexible installation options.
This model is suitable for electrical, industrial automation, manufacturing equipment, HVAC systems, and other control panel installations.
The country of origin for this model is Germany, indicating its manufacturing location.
This panel mount indicator features a single LED for signaling purposes.
