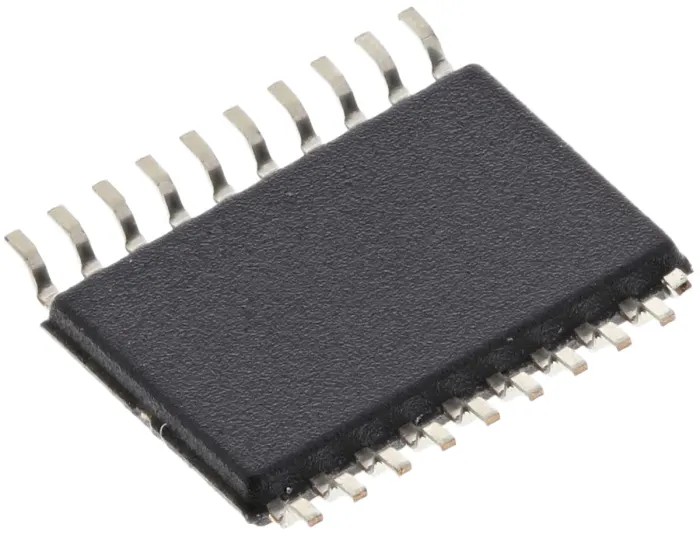

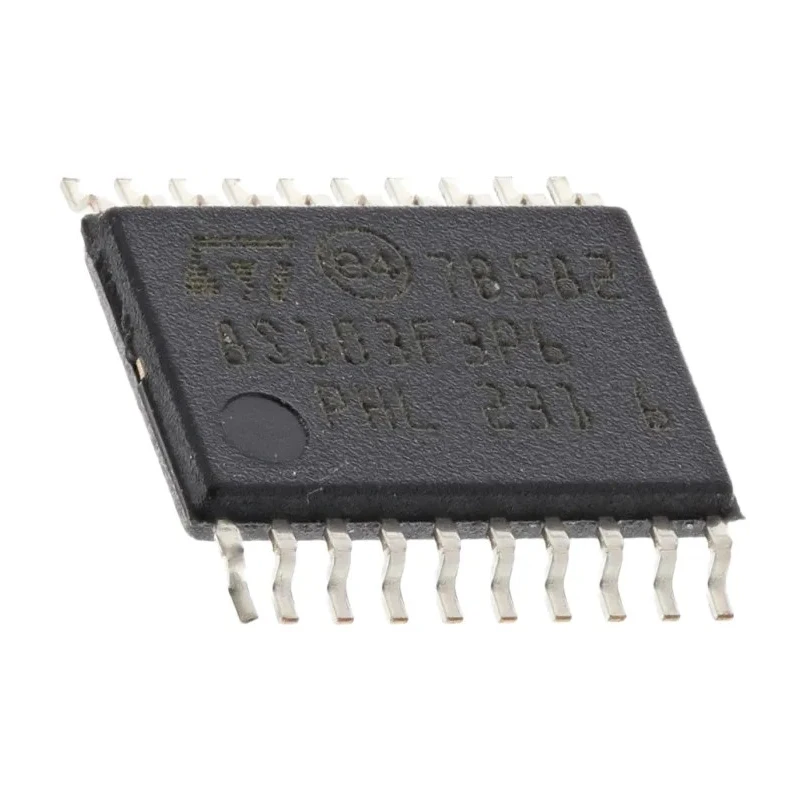

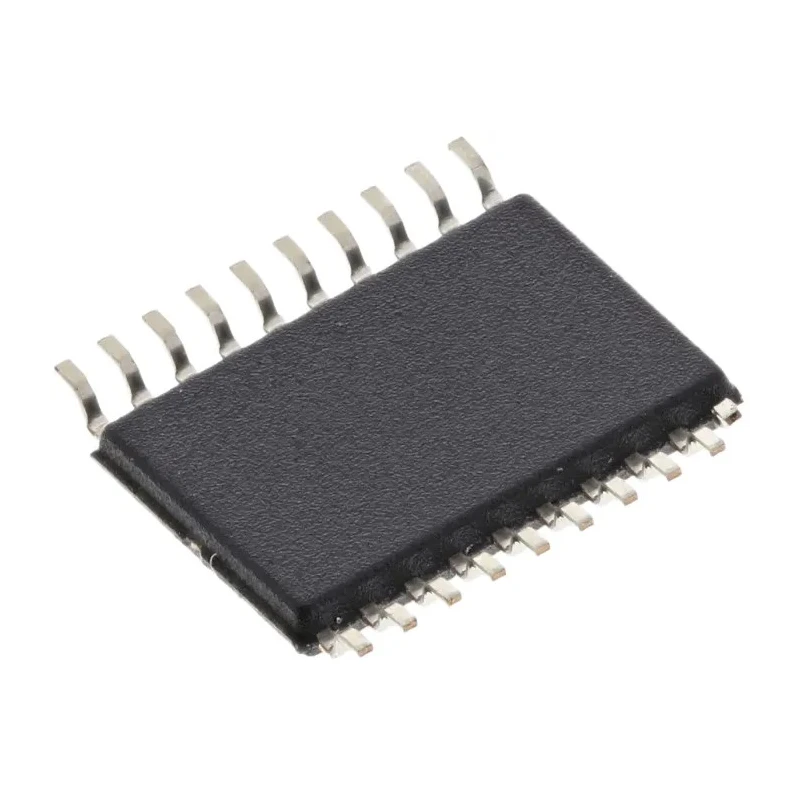

STMicroelectronics STM8S103F3P6 8-Bit STM8 Microcontroller 16 MHz 8kB FLASH 20-Pin TSSOP

STMicroelectronics STM8S103F3P6 is a high-performance 8-bit microcontroller based on the STM8 core, designed for efficient embedded system solutions. Operating at 16 MHz, it delivers up to 20 MIPS with a 3-stage pipeline architecture and features 8kB Flash program memory and 1kB RAM, enabling robust control and data handling capabilities.

Its 20-pin TSSOP surface mount package is ideal for compact PCB layouts in industrial and consumer electronics. The device supports a wide operating voltage range from 2.95V up to 5.5V, ensuring flexibility in power supply designs.

This microcontroller includes 28 programmable I/O pins and 5 channels of 10-bit ADCs, enhancing its interfacing and measurement capabilities. With five timers and a CISC instruction set, it supports precise timing and control required in embedded applications.

The STM8S103F3P6 is RoHS compliant and operates reliably within industrial temperature ranges from -40°C to 85°C. This makes it suitable for applications in industrial automation, consumer electronics, and other embedded systems requiring low power consumption and compact size.

Utilizes an advanced 8-bit STM8 core with a 3-stage pipeline for efficient processing. Operates at a maximum clock speed of 16 MHz delivering up to 20 MIPS performance. Equipped with 8kB of FLASH program memory and 1kB of RAM for versatile applications.

Features 28 programmable I/Os and 5 10-bit analog-to-digital converters (ADCs). Packaged in a compact 20-pin TSSOP surface mount for easy PCB integration. Supports operation across a wide voltage range from 2.95V to 5.5V.

Designed to operate reliably in temperature extremes from -40°C to 85°C. Includes five timers and a CISC instruction set architecture optimizing control and processing tasks. Compliance with RoHS standards ensures environmentally safe manufacturing.

Suitable for industrial, consumer, and embedded electronic applications requiring low-power 8-bit microcontrollers. Explore EnvMart's extensive range of Microcontrollers and electronic components suitable for various embedded design needs.
