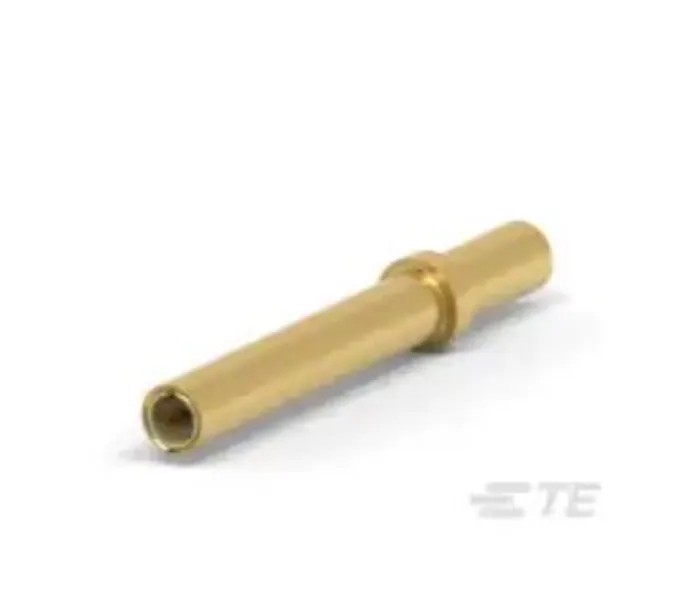

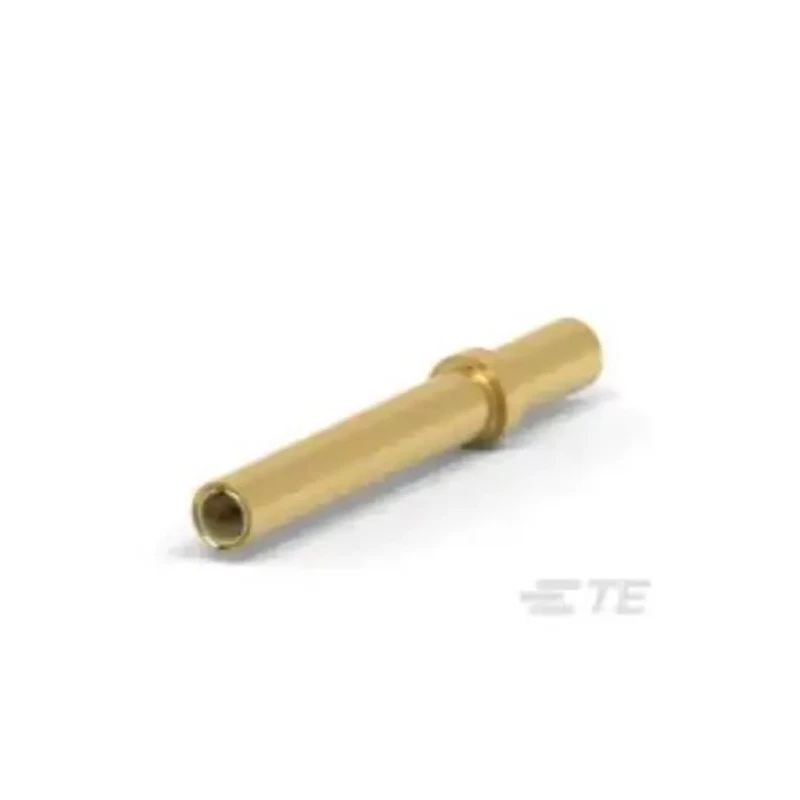

TE Connectivity ELCON Drawer Series Female Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max, Gold Plated Copper Alloy 1648325-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Length | 16.51mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | ELCON Drawer |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Elcon Drawer Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- Compatible with Elcon Drawer Connector Housings.
- Rated for a current carrying capacity of 5 amps.
- Suitable for wire sizes from 24 AWG (0.2 mm²) to 20 AWG (0.6 mm²).
- Gold plated contact for optimal corrosion resistance and conductivity.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Termination type is crimp for secure wire attachment.
- Contact length measures 16.51 mm allowing for precise fitment.
- Constructed from durable copper alloy ensuring strength and conductivity.
Product Description
TE Connectivity 1648325-1 ELCON Drawer Series female crimp terminal is engineered to provide reliable and durable performance in electronic and industrial power connector assemblies. This crimp terminal is specifically designed for use with Elcon drawer connector housings and is suitable for wire sizes ranging from 24 AWG (minimum) to 20 AWG (maximum).
Manufactured from high-quality copper alloy with gold plating, this terminal ensures excellent conductivity and superior resistance to corrosion over extended use. The crimp termination type allows secure and efficient wire connections, making it ideal for high current applications up to 5 amperes.
The contact length of 16.51 mm facilitates easy insertion and ensures precise mechanical and electrical connection within the housing. The terminal operates effectively in environmental conditions from -40°C up to 105°C, ensuring stable performance in diverse industrial settings including electronic manufacturing, power distribution modules, and PCB wiring harnesses.
This ELCON series female crimp terminal is a trusted choice for professionals seeking dependable connector components that maintain signal integrity and power transmission efficiency. It is particularly suited for industrial power connectors, PCB connectors, and wire housings needing precision and reliability.
Compatible with Elcon Drawer Connector Housings. Rated for a current carrying capacity of 5 amps. Suitable for wire sizes from 24 AWG (0.2 mm²) to 20 AWG (0.6 mm²). Gold plated contact for optimal corrosion resistance and conductivity.
Operates reliably in temperatures ranging from -40°C to 105°C. Termination type is crimp for secure wire attachment. Contact length measures 16.51 mm allowing for precise fitment. Constructed from durable copper alloy ensuring strength and conductivity.
Ideal for industrial and electronic applications requiring high current connections. Designed for use in PCB connectors and wire housing assemblies.
Choose TE Connectivity ELCON Drawer Series female Crimp Terminals for superior quality components that enhance electrical system performance. Suitable for applications in industrial tooling, manufacturing assembly lines, electronic device power modules, and commercial connector setups. Browse EnvMart for more TE Connectivity electronic components and connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a current carrying capacity of 5 amps.
It is suitable for wire sizes ranging from 24 AWG (0.2 mm²) to 20 AWG (0.6 mm²).
The contact length measures 16.51 mm, allowing for precise fitment.
It is constructed from copper alloy and features gold plating for optimal corrosion resistance and conductivity.
This model operates reliably in temperatures ranging from -40°C to 105°C.
The terminal uses a crimp termination type for secure wire attachment.
It is designed for use with Elcon Drawer Connector Housings.
This terminal is a female crimp terminal.
The gold plating provides optimal corrosion resistance and enhances conductivity.
The country of origin for this terminal is India.
It is suitable for applications in electronic manufacturing, power distribution modules, and PCB wiring harnesses.
This terminal belongs to the ELCON Drawer Series.
